The AC Infinity Cloudline Pro EC Extraction Fan is a high-quality, budget-friendly inline exhaust fan which - when paired with an optional smart controller - offers automated adaptability and real-time data display to smart phones; giving the grower the potential to transform their grow space into a self-regulating environment, capable of  automatically changing fan speeds to maintain environmental parameters set by the grower.

A smart inline duct fan designed to quietly ventilate hydroponic grow rooms, boost heating/cooling to rooms, circulate fresh air, exhaust projects, and cool AV closets. Featuring an inline mixed-flow design, the duct fan can maintain airflow even in high static pressure applications. It is built with a PWM-controlled EC motor for quiet and energy-efficient performance. The motor box containing the fan’s impeller and blades can be detached from the mounted frame for easy cleaning and maintenance. Includes a smart controller with dynamic climate and time-based programming and can connect to multiple UIS devices. This product is a part of the UIS™ platform of grow devices and smart controllers, designed to integrate with each other to achieve your ideal environment.

• Designed to quietly ventilate grow tents, transfer heating/cooling to rooms, circulate fresh air, and cool AV closets.
• Features a wired 10-speed fan controller; also compatible with all UIS controllers with intelligent programming.
• PWM-controlled EC motor provides quiet and energy-efficient performance with minimal heat and noise.
• Mixed flow design with stator blade and hydrodynamic wind circles enables airflow delivery in high resistance areas.


Quiet & Energy Efficient Design

This duct fan uses a mixed-flow design using a stator blade and dual hydrodynamic wind circles, enabling it to deliver airflow even in applications where air movement is restricted. The motor houses dual ball bearings rated at 67,000 hours which allows the duct fan unit to be mounted in any direction. The unit is IP44 rated to be highly resistant to dust and liquids and performs well even in harsh environments.

Applications

This quiet inline fan system is most found in hydroponic grow tents and rooms to provide cooling and ventilation for plants. Its low noise and advanced control features make it fit for bathroom and attic settings, as well as cooling AV equipment rooms, closets, racks, and cabinets.

Controller Option

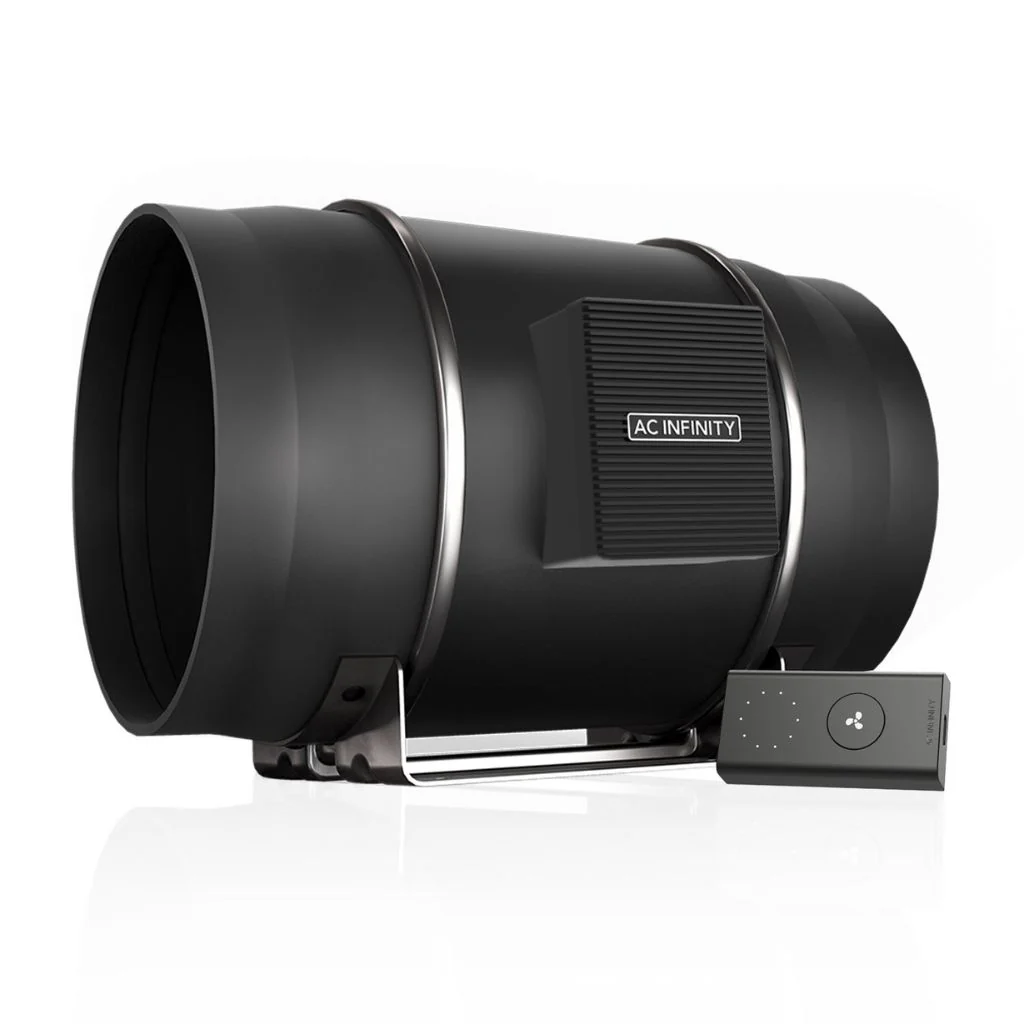

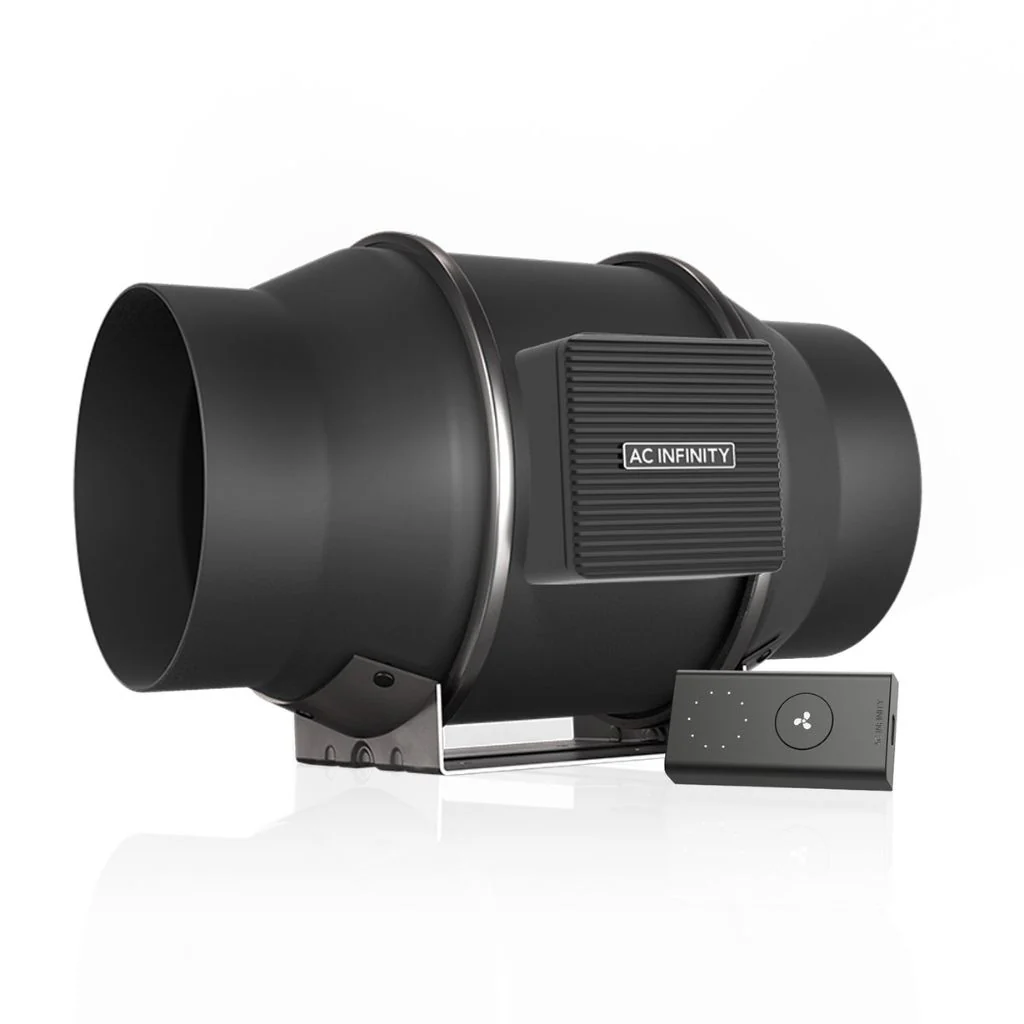

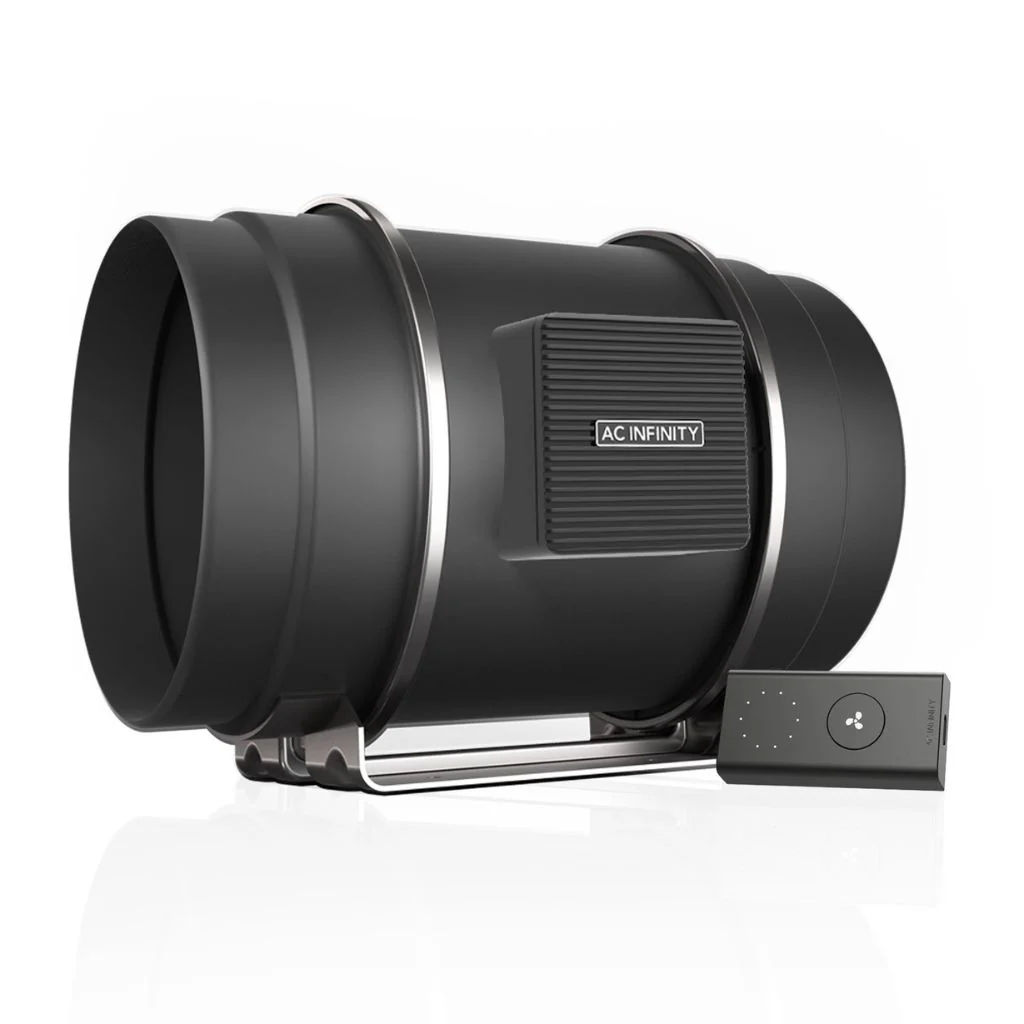

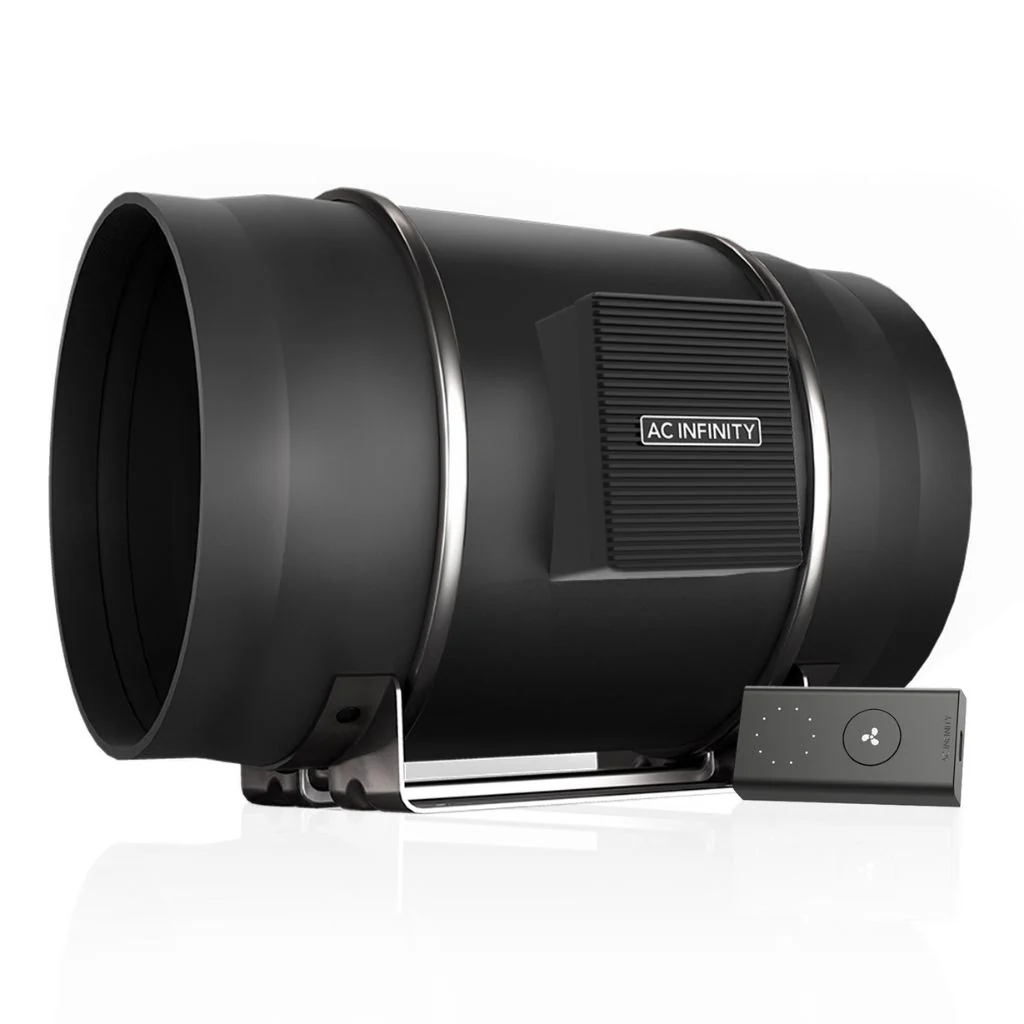

Standard controller - Standard 10-speed manual controller.

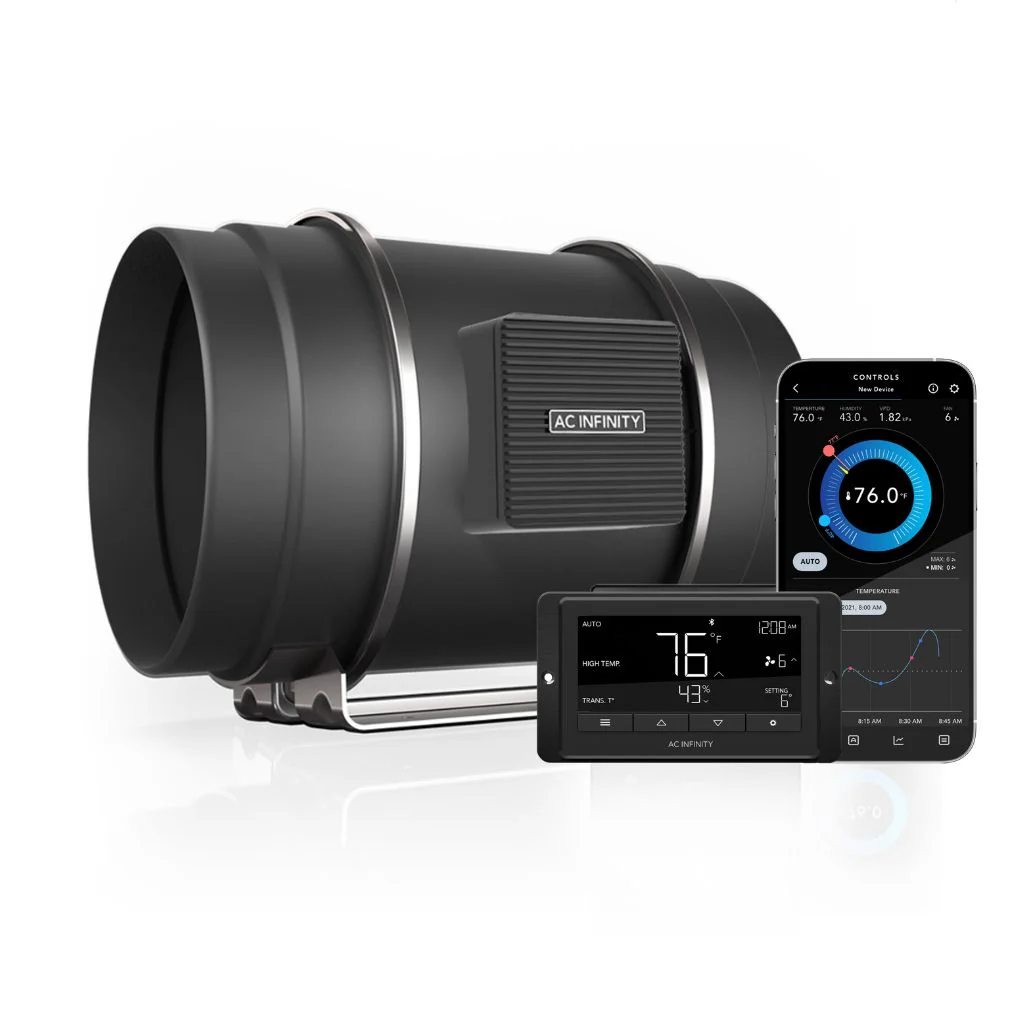

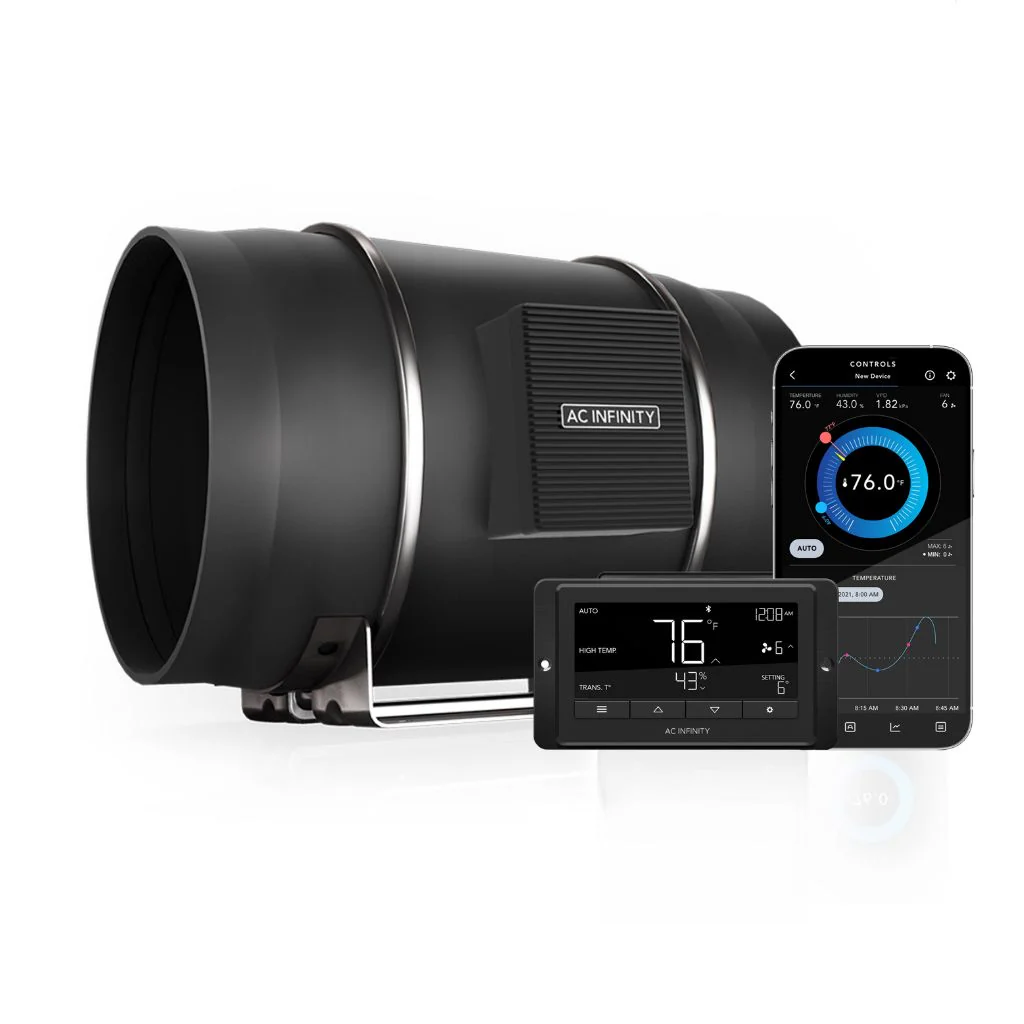

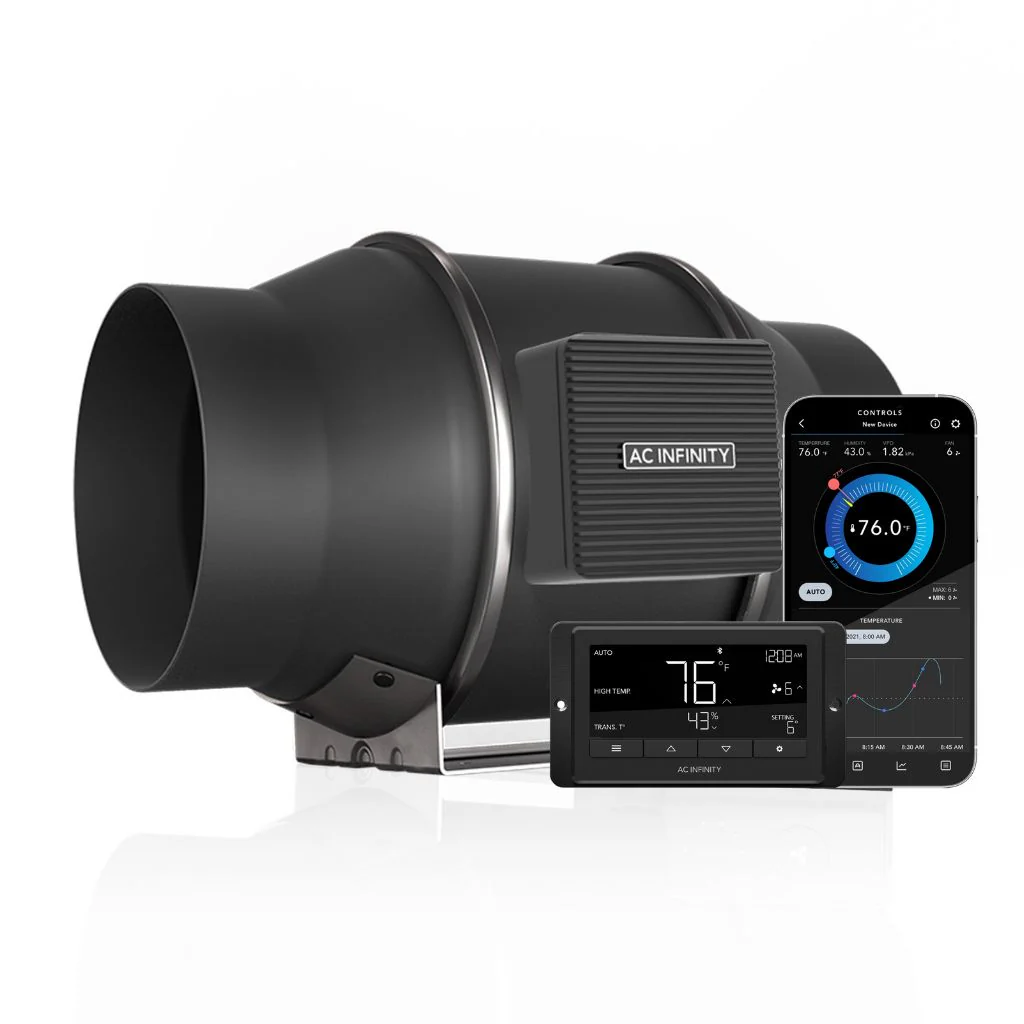

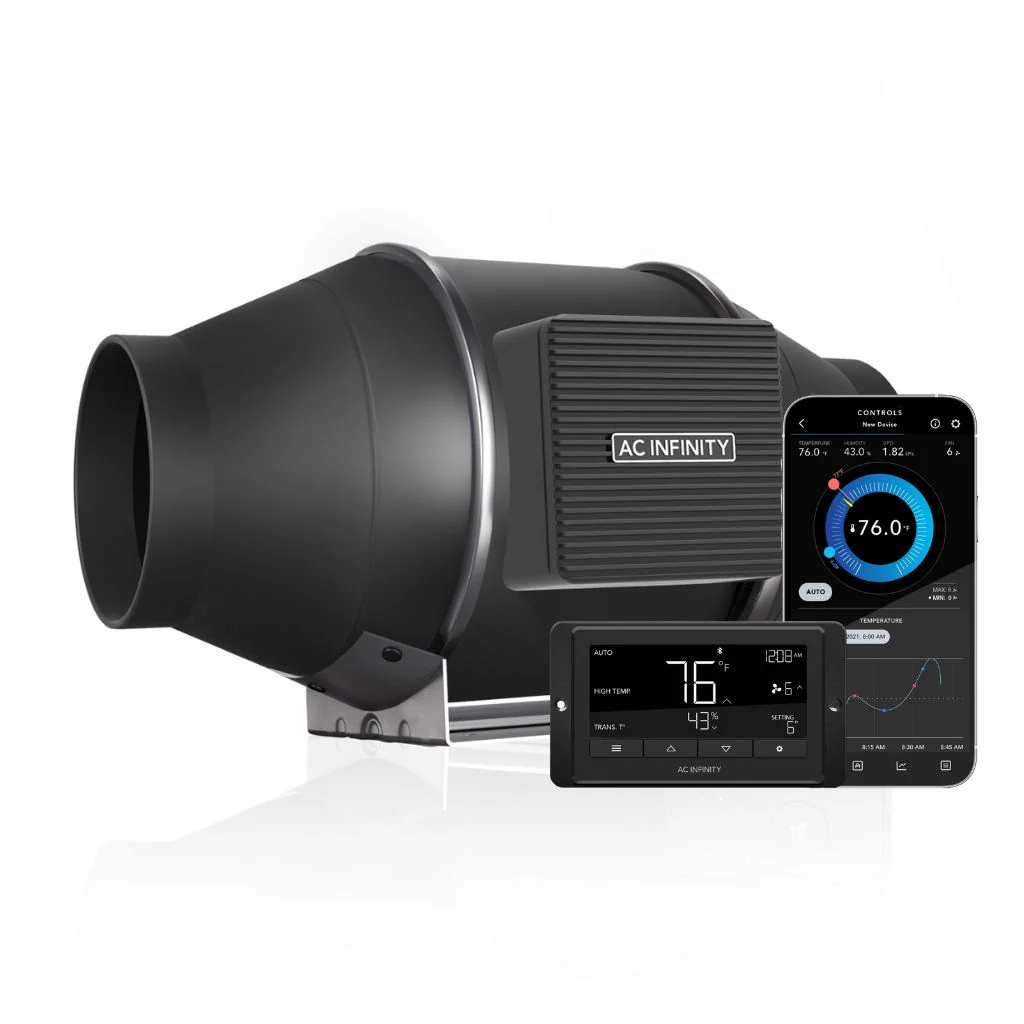

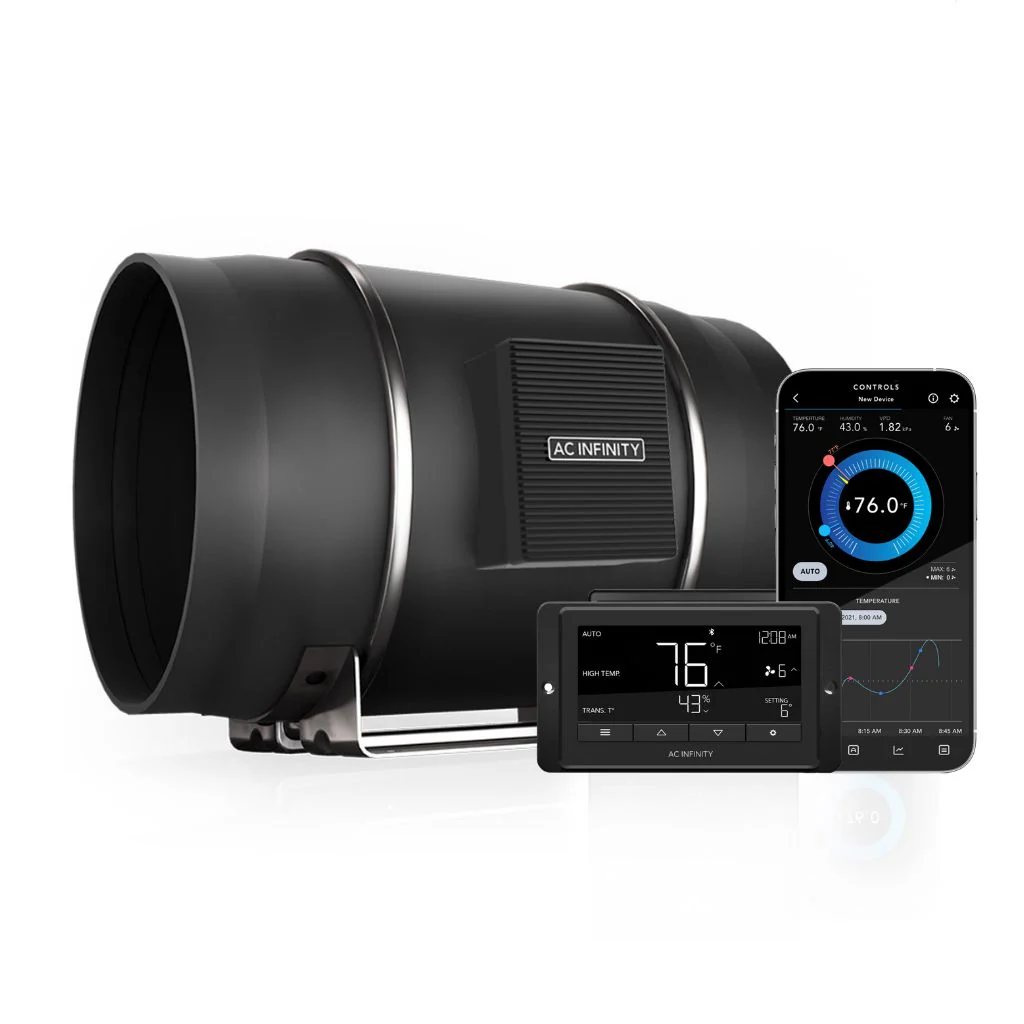

Controller 67 (Bluetooth) - A digital controller designed to enhance your AC Infinity fan with smart controls to maintain a stable climate. This intelligent command unit features a black powder-coated body and a backlit LCD screen that presents a sleek aesthetic. The display has three brightness levels, as well as two auto brightness settings, and reads temperatures in Fahrenheit or Celsius. The controller’s 4-pin Molex fan ports can simultaneously power two fans to share the same fan speed and programming. Functions include automated triggers, timers, on/off cycling, and scheduling.

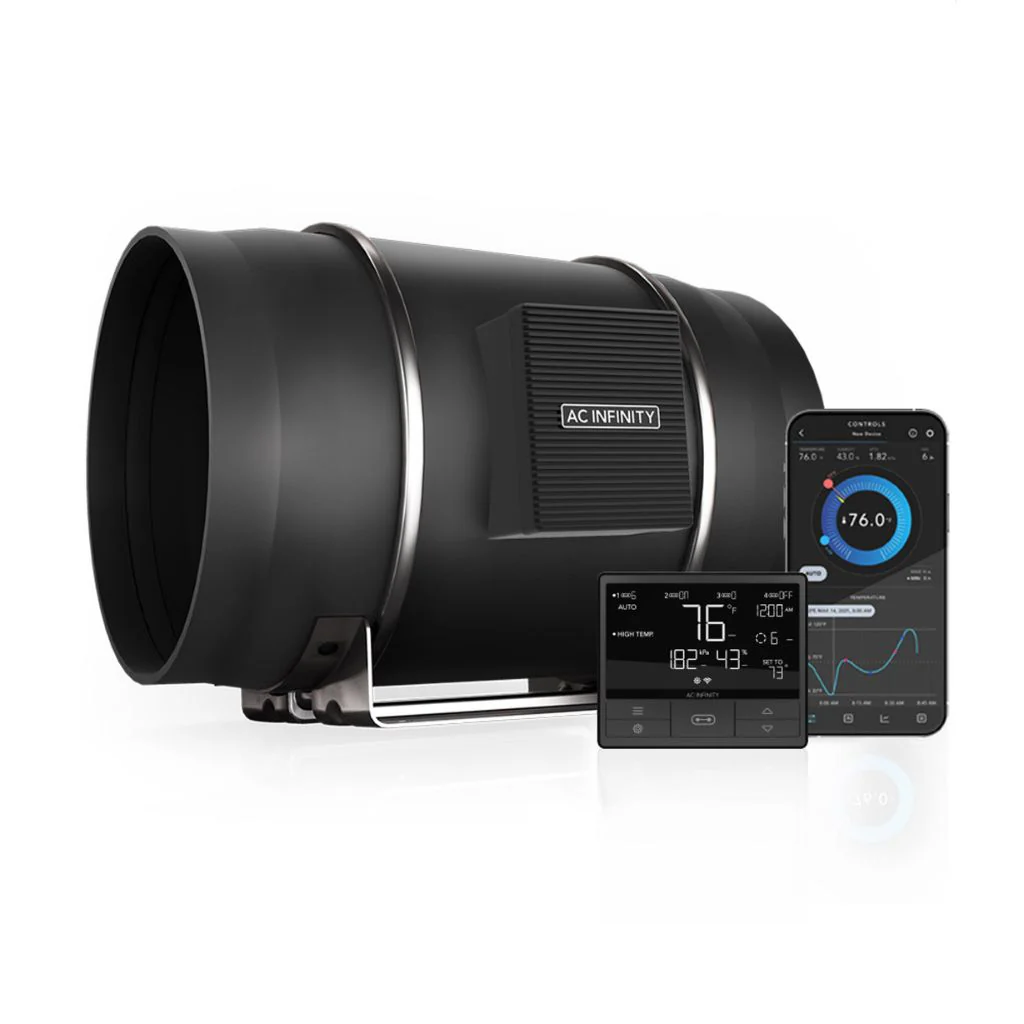

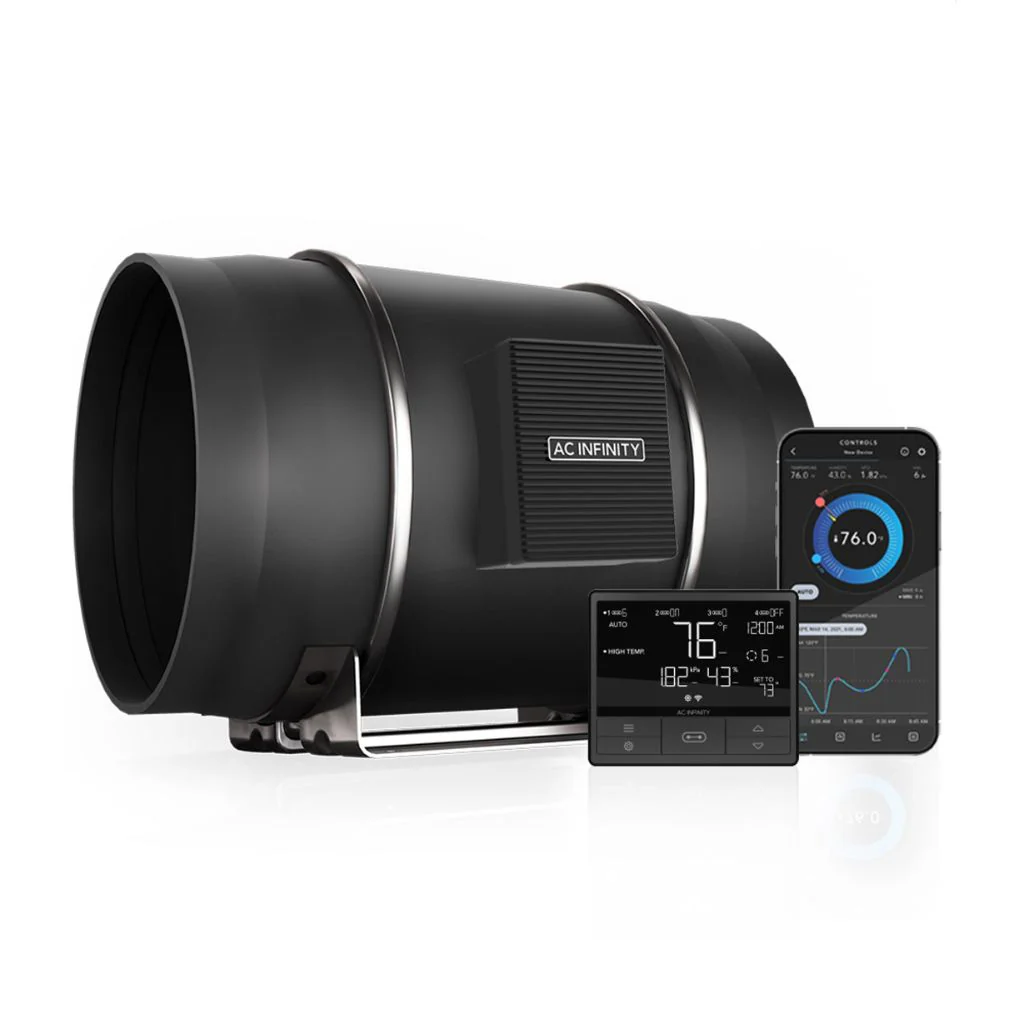

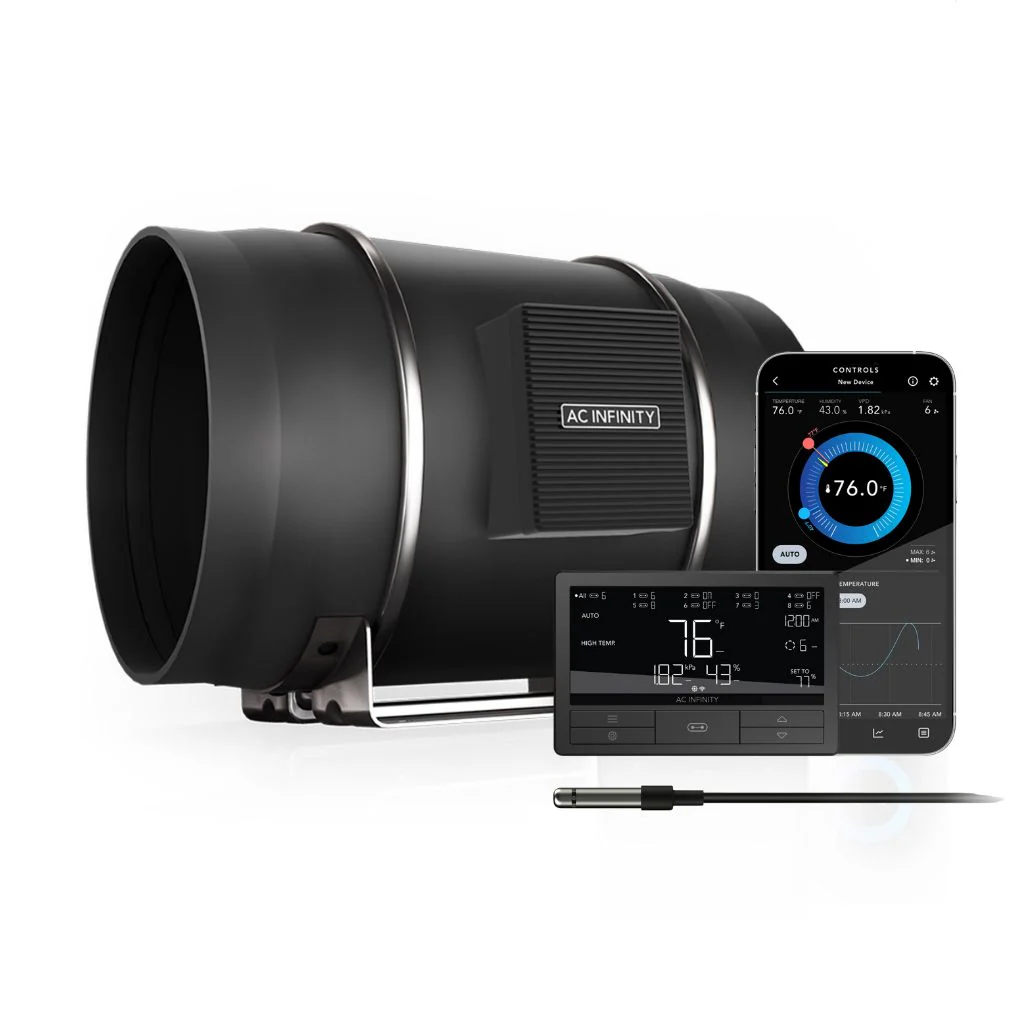

Controller 69 (Bluetooth) -This central command unit connects with up to four different devices from fans to lights to provide each with independent climate and time-based programming. The backlit display reads temperature in Fahrenheit or Celsius and can be switched off while programs run in the background. The 12-foot sensor probe with thermal-alloy head accurately detects current temperature and humidity conditions. This product is a part of the UIS™ platform of grow devices and smart controllers, designed to integrate with each other to achieve your ideal environment.

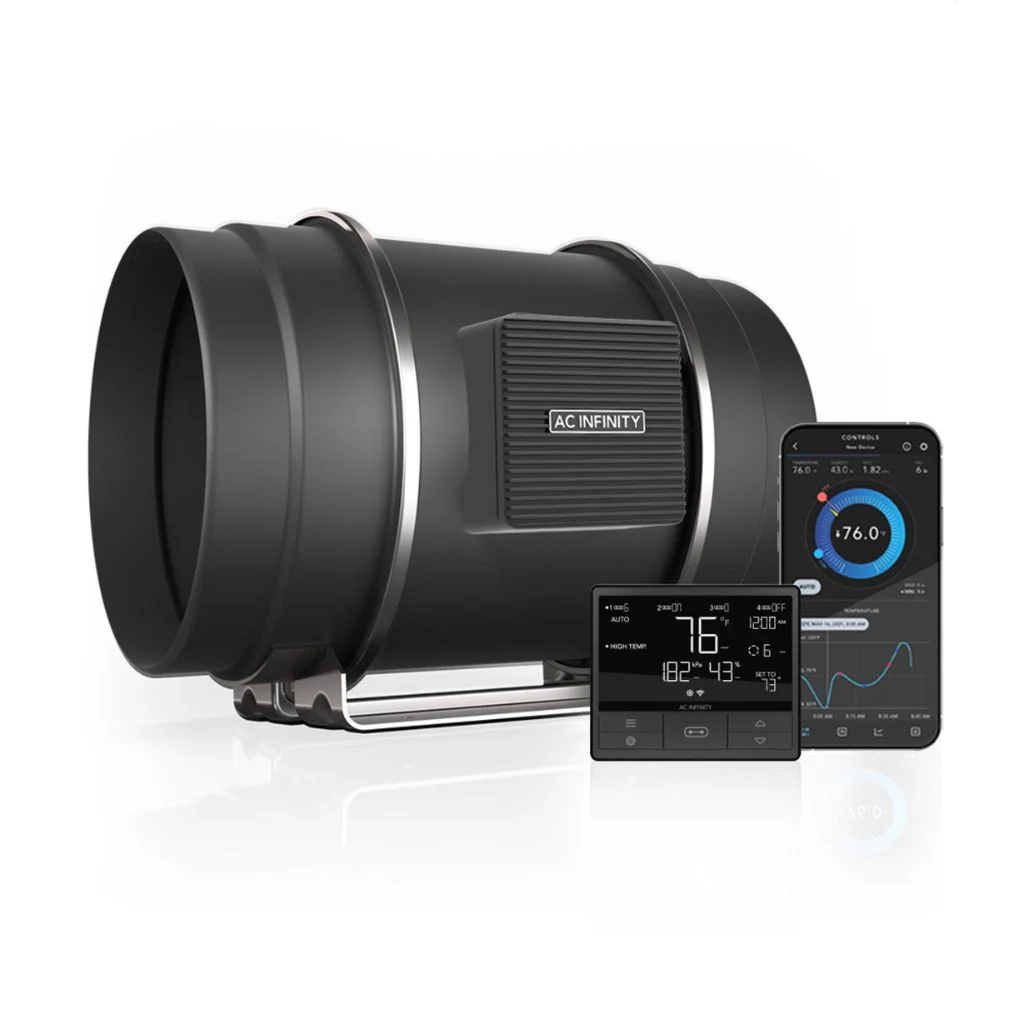

Controller 69 PRO (Bluetooth & Wifi)- Same as 69 but with WIFI & Bluetooth

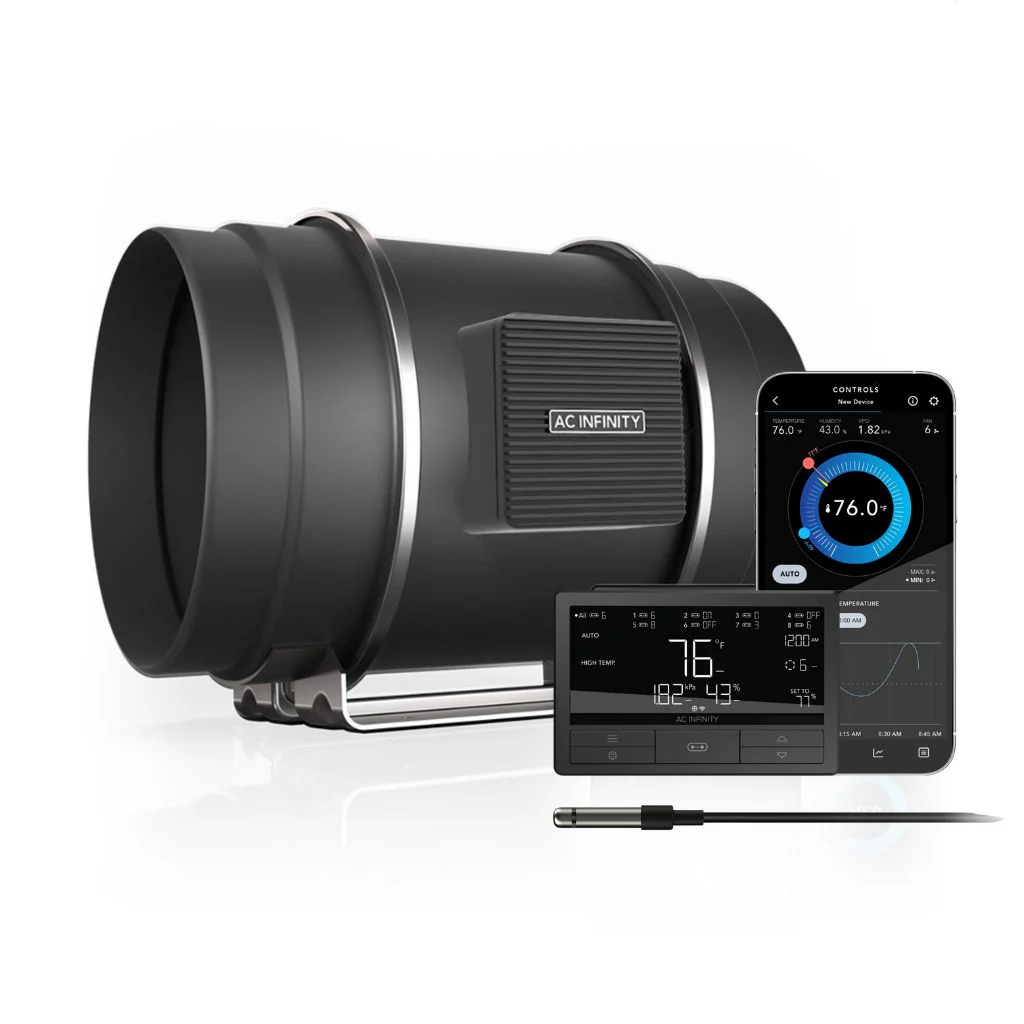

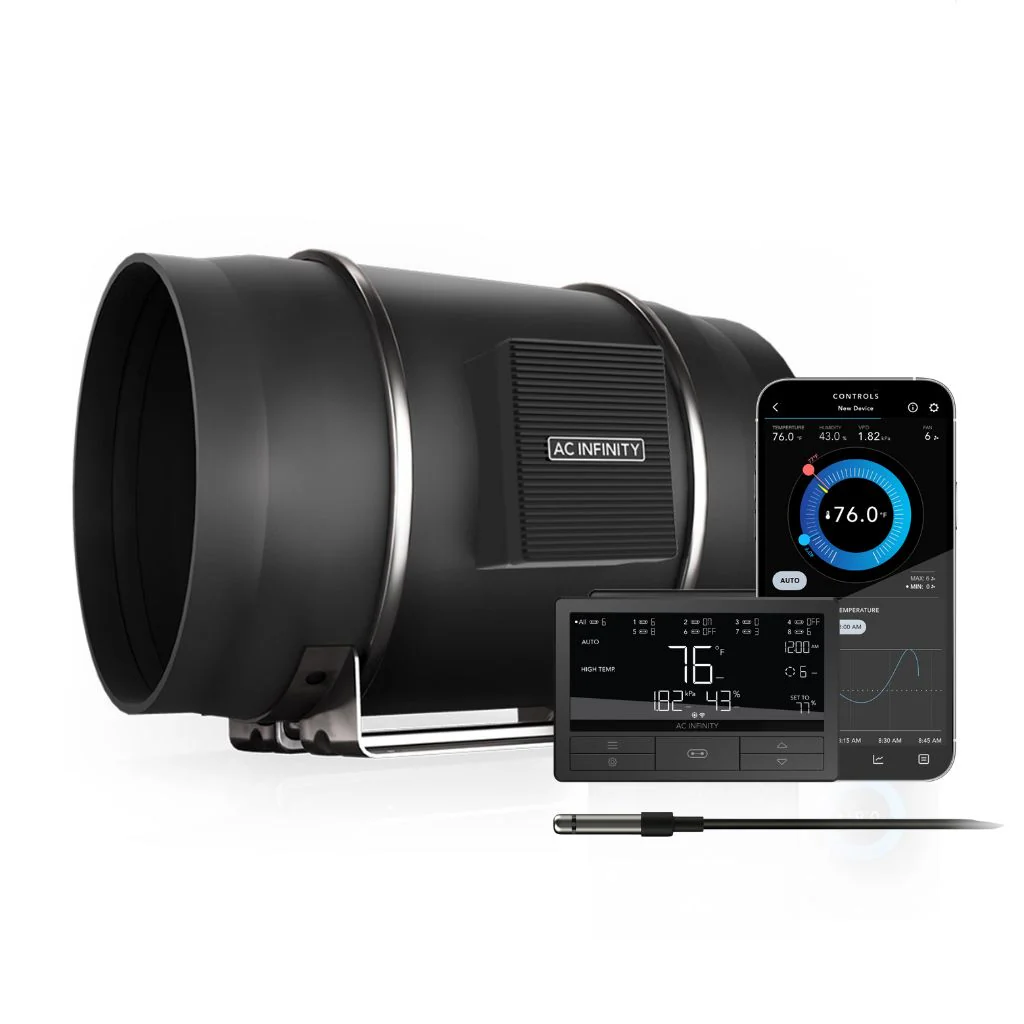

Controller 69 PRO+ (BT & Wifi - 8 Ports)- Same as 69 PRO but with 8 inputs instead of 4.

Specifications

Product Identification
Manufacturer	AC Infinity Inc.

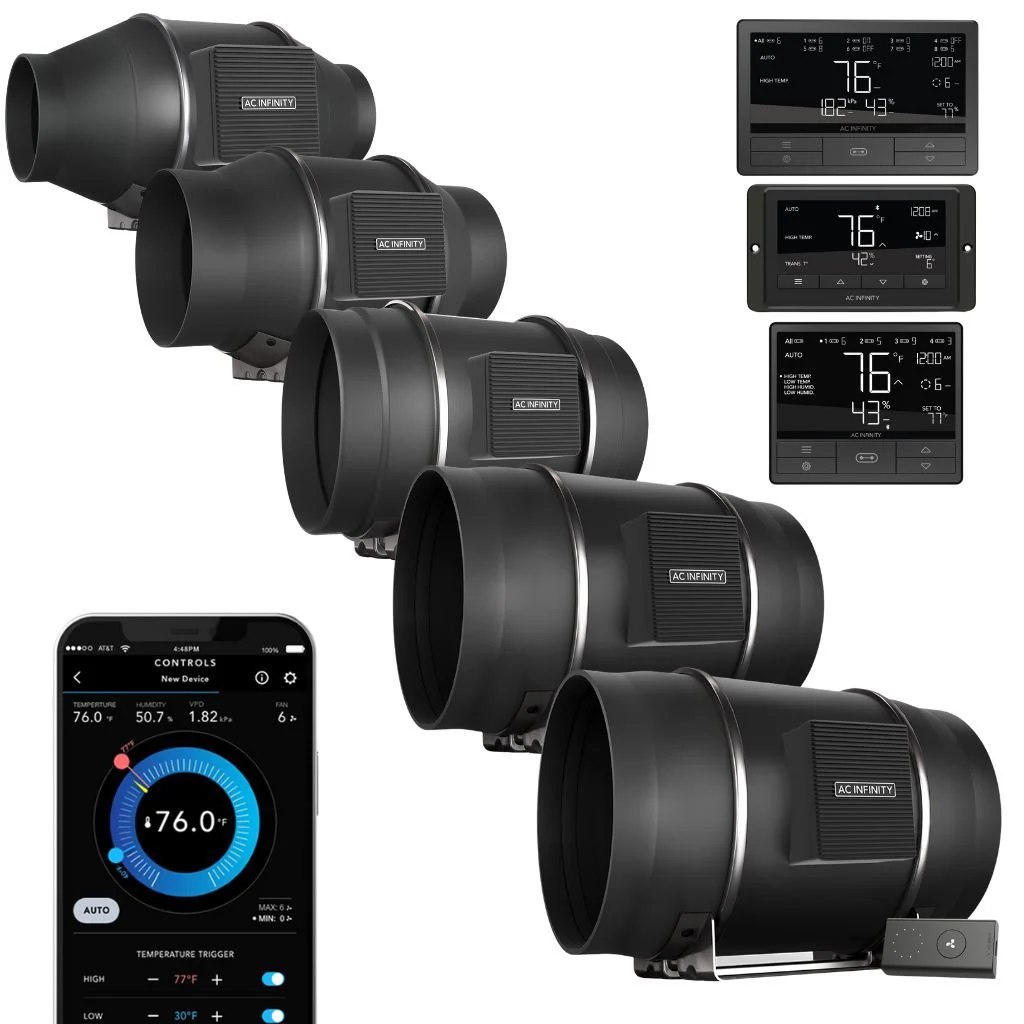

Product Name	S4- S6- S8- S10- S12
Product and Mounting Dimensions - Fan Unit
Duct Size	4"-6"-8"-10"-12"
Product Performance and Technical Specs
Total Airflow	205- 402- 807- 1201- 1604 CFM
Total Noise	28- 32- 39- 48- 62 dBA
Static Pressure	223- 503- 746- 1059- 818 Pa
Voltage	100-240V AC
Frequency	50/60 Hz
Max Power Draw	28- 64-110- 250- 250W
Average Power Usage	21- 38- 78- 136- 139W
Current	1.2- 1.6- 2.27- 2.7- 2.5a
Power Connector Type	UK plug
Operating Humidity	35 to 85% RH
Operating Temperature	32 to 140°F
Ingress Protection	IP 44
Fan Bearings	Dual Ball
Mounting Positions	Horizontal or Vertical
L10 Life Expectancy	67,000 Hours
CE Certification (Whole Product)	PDF
ETL Cert. (Whole Product)	PDF
RoHS Cert. (Whole Product)	PDF
SAA Cert. (Whole Product)	PDF
Product Manual
Product Manuals	4" PDF   6" PDF   8"  PDF   10" PDF  12" PDF
