AC Infinity Ionframe EVO3 280w LED Grow Light
The AC Infinity Ionframe EVO3 LED Grow Light is a high-quality, full-spectrum indoor plant grow light designed for grow tents and grow spaces to improve your plant's growth rate and yields. Coming with the latest, highest efficiency Samsung LEDs and full UIS compatibility, it's a great choice for tech savvy growers who want a streamlined growing experience. Suitable for 1.2m x 0.6m grow areas.
The AC Infinity Ionframe EVO3 LED utilises algorithmically spaced Samsung LM301H EVO diodes on a bar-style frame to provide evenly distributed light coverage while also diminishing hotspots. Its modular design enables you to remove the driver and remotely mount it away from the fixture and achieve a balanced heat dissipation.
Features
- Samsung LM301H EVO LEDs each rated at 3.14 µmol/J PPE, the highest efficiency of LM301B, LM301H, and Bridgelux 3030 chips.
- Programmed with schedule controls, sunrise/sunset dimming, and 10 brightness levels; UIS™ platform-compatible for WiFi app control.
- Bar-style fixture with algorithmically spaced diodes optimised for even coverage, deep canopy penetration, and hotspot reduction.
- Passive cooling LED driver is removable to balance heat dissipation; also supports daisy-chaining with up to 80 grow lights.
- 3 x 5 ft. Veg. Coverage | 2 x 4 ft. Flower Coverage | Samsung LM301H EVO Chips | 840 Diodes | 280W | 1745 PPFD | ETL Cert. 5021417
High-Quality Build
This heat dissipation is supported by its steel and aluminium build, which enables magnetic mounting of additional accessories and is IP65 rated to withstand humid environments. This grow light meets ETL standards (certificate #5021417) for electrical appliance safety, ensuring secure use in lighting applications. The included smart controller features schedule programming and daisy-chain support to connect more bar LED grow lights in a linear arrangement with the use of splitter dongles (sold separately).
This product is a part of the UIS™ platform of grow devices and smart controllers, designed to integrate with each other to achieve your ideal environment.
Industry Leading Diodes
Each Ionframe light features genuine Samsung LM301H EVO diodes - the latest in horticulture lighting technology - capable of emitting intense brightness at greater efficiency. This performance is superior to leading Samsung LM301H / LM301B and Bridgelux 3030 LEDs.
EVO diodes help improve plant growth by emitting greater light quality and more light output per diode, with a higher blue spectrum and greater efficiency. The IONFRAME EVO4 is supported by an array of 3 x 395 nm UV diodes, 27 x 660 nm and 3 x 730 nm OSRAM far-red diodes, ensuring a complete full-spectrum light output.

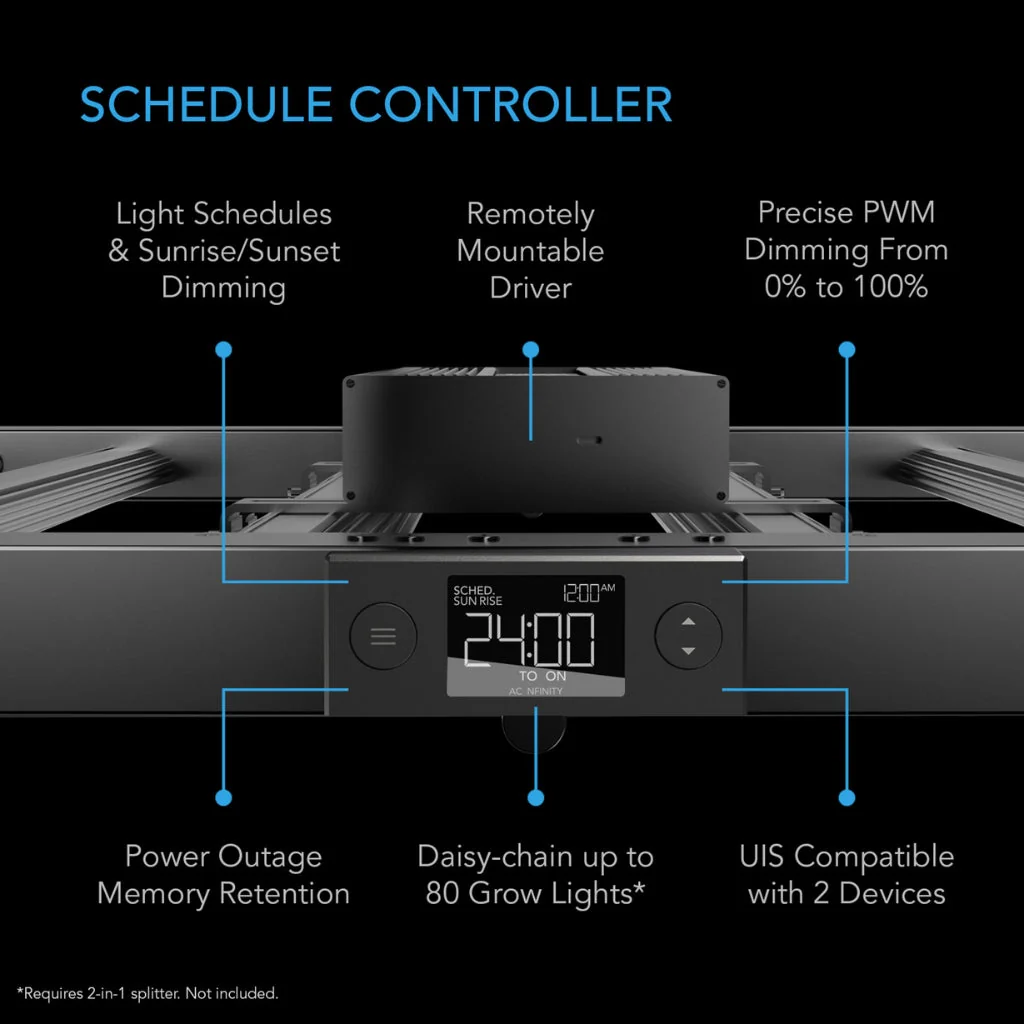

Timer Schedule and Brightness Controls
The included LED grow light controller can automatically adjust light based on the time of day. It features 10 light intensity levels and a scheduling mode that will cyclically activate this grow light. Customise this daily cycling with an innovative sunrise and sunset setting that gradually brightens and dims the lighting to accurately replicate the sun's varying brightness throughout a 24hr period.
Use this grow light with an advance UIS controller like the AC Infinity Controller 69 PRO+ to fully automate it by integrating it into the UIS platform. This will enable further access to remote control over WiFi and advance programming like automation and grow recipes when connecting to the AC Infinity app.
What's in the box?
- 1 x AC Infinity Ionframe EVO3 LED Grow Light
- 1 x Power Cable with UK plug (3.5m)
- 1 x LED Controller with display
- 1 x Instruction Manual
Check out other LED Grow Lights From AC Infinity here
| Feature | Details |
|---|---|
| Manufacturer | AC Infinity Inc. |
| Product Name | IONFRAME EVO3 |
| Model | AC-IF3K |
| UPC Code | 819137024045 |
| Light Dimensions | 16.14 x 32.67 x 3.03 in (41.0 x 83.0 x 7.7 cm) |
| Driver Dimensions | 7.16 x 1.57 in (18.2 x 4.0 cm) |
| Coverage | 2 x 4 ft |
| Diodes | Samsung LM301H EVO |
| Spectrum | 395nm, 660nm, 730nm, 3000K, 5000K |
| Chip Count | 840 Total |
| – 3000K (EVO) | 537 |
| – 5000K (EVO) | 270 |
| – 395nm (Seoul) | 3 |
| – 660nm (OSRAM) | 27 |
| – 730nm (OSRAM) | 3 |
| LED Driver | SOSEN-320W |
| Efficiency | 3.14 µmol/J |
| PPFD | 1745 PPFD |
| Wattage | 280 W |
| Voltage | 100–277V AC |
| Frequency | 50/60 Hz |
| Amperage | 2.8 A |
| Controller | Schedule Controller |
| Plug Type | UK Plug |
| Operating Humidity | 35–85% RH |
| Operating Temperature | 32–140°F |
| Waterproof Rating | IP-65 |
| Life Expectancy | 50,000 Hours |
