The AC Infinity Cloudline Pro EC Extraction Fan Kit comes with everything you need to setup an effective, smell-free air exchange within your grow space. The AC Infinity Cloudline PRO EC Extraction Fan is a high-quality, budget-friendly inline exhaust fan which - when paired with an optional smart controller - offers automated adaptability and real-time data display to smart phones; giving the grower the potential to transform their grow space into a self-regulating environment, capable of  automatically changing fan speeds to maintain environmental parameters set by the grower.

In this kit you'll also receive 5m of high-quality combi ducting and 2 jubilee clips, giving you a wide range of configuration and placement options for maximum flexibility.

A smart inline duct fan system designed to quietly ventilate hydroponic grow rooms, boost heating/cooling to rooms, circulate fresh air, exhaust projects, and cool AV closets. Featuring an inline mixed-flow design, the duct fan can maintain airflow even in high static pressure applications. It is built with a PWM-controlled EC motor for quiet and energy-efficient performance. The motor box containing the fan’s impeller and blades can be detached from the mounted frame for easy cleaning and maintenance. Includes a smart controller with dynamic climate and time-based programming and can connect to multiple UIS devices. This product is a part of the UIS™ platform of grow devices and smart controllers, designed to integrate with each other to achieve your ideal environment.

• Designed to quietly ventilate grow tents, transfer heating/cooling to rooms, circulate fresh air, and cool AV closets.
• Features a wired 10-speed fan controller; also compatible with all UIS controllers with intelligent programming.
• PWM-controlled EC motor provides quiet and energy-efficient performance with minimal heat and noise.
• Mixed flow design with stator blade and hydrodynamic wind circles enables airflow delivery in high resistance areas.


Quiet & Energy Efficient Design

This duct fan uses a mixed-flow design using a stator blade and dual hydrodynamic wind circles, enabling it to deliver airflow even in applications where air movement is restricted. The motor houses dual ball bearings rated at 67,000 hours which allows the duct fan unit to be mounted in any direction. The unit is IP44 rated to be highly resistant to dust and liquids and performs well even in harsh environments.

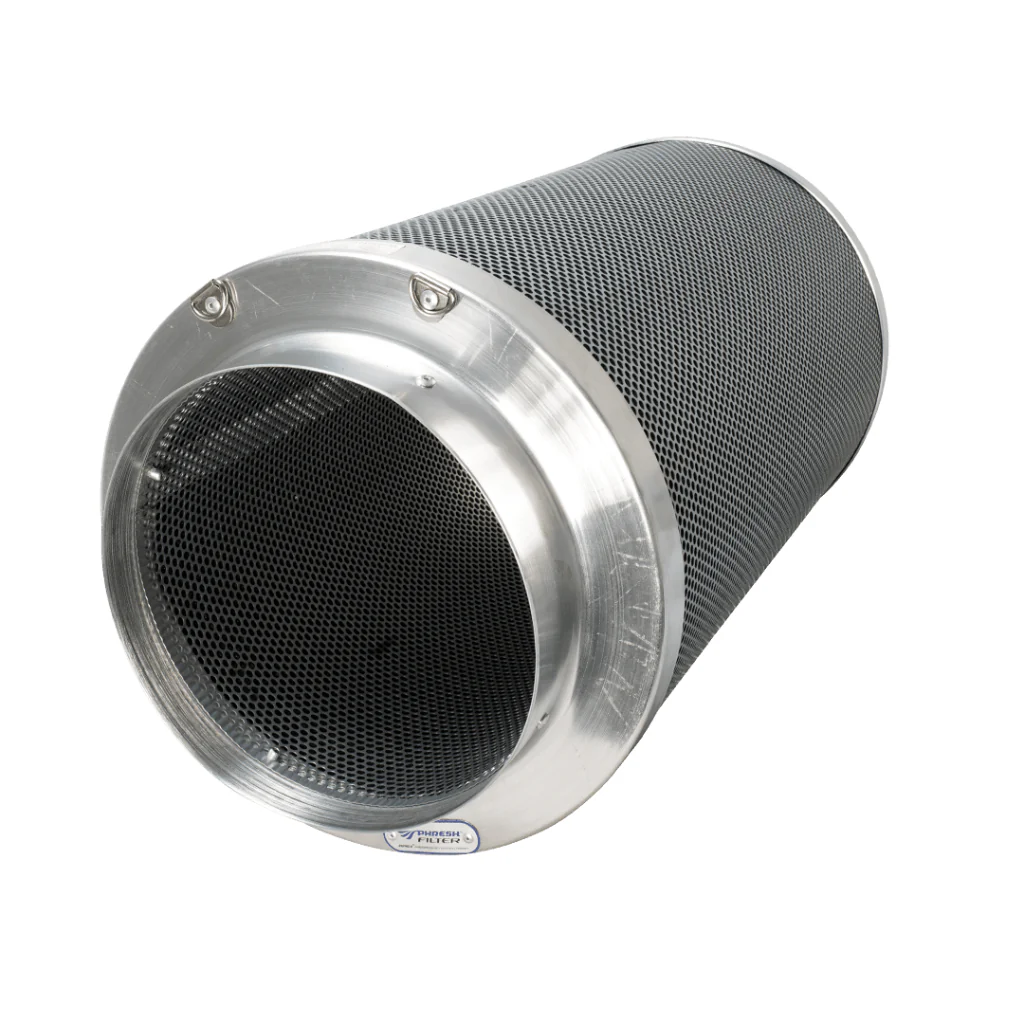

Phresh Carbon Filter

Phresh Carbon Filters are packed with APEX 4-8 virgin activated carbon. Specially selected for its grain size and quality, the carbon’s density optimises airflow and absorption power.

The granular shape of the carbon is half the weight of pelletised carbon, making the filter lighter and easier to handle. Phresh does not compromise on the density of its carbon – it is machine packed tightly into the carbon bed to reduce movement. The exterior is made of 51% open air custom mesh, optimising airflows without the risk of carbon density loss over time.

Combi Ducting & Duct Clips

We supply high quality 5m combi ducting and 2 duct clips with each kit.

Controller Option

Standard controller - Standard click speed controller

Controller 69 PRO+ (BT & Wifi - 8 Ports)

Controller AI+ (Wifi - 8 Ports)

What's in the box?

• 1 x AC Infinity Cloudline PRO EC Extraction Fan
• 1 x Phresh Carbon Filter (matching size)
• 1 x 5m Combi Ducting (matching size)
• 2 x Clips (matching size)
• 1 x Fan Speed Controller (choose)

Specifications

Product Identification
Manufacturer	AC Infinity Inc.
Product Name	A4- A6- 108
Product and Mounting Dimensions - Fan Unit
Duct Size	4"-6"-8"-10"-12"
Product Performance and Technical Specs
Total Airflow	165- 352- 724 CFM
Total Noise	29- 34- 42 dBA
Voltage	100-240V AC
Frequency	50/60 Hz
Max Power Draw	35- 65- 99W
Average Power Usage	18- 35- 72 W
Power Connector Type	UK plug
Operating Humidity	35 to 85% RH
Operating Temperature	32 to 140°F
Ingress Protection	IP 44
Fan Bearings	Dual Ball
Mounting Positions	Horizontal or Vertical
L10 Life Expectancy	67,000 Hours
CE Certification (Whole Product)	PDF
ETL Cert. (Whole Product)	PDF
RoHS Cert. (Whole Product)	PDF
SAA Cert. (Whole Product)	PDF
Product Manual
Product Manuals	4" PDF   6" PDF   8"  PDF   10" PDF  12" PDF
