IWS systems give the grower flexibility of each plant site location and are fully expandable providing virtually unlimited options, also allowing the grower to decide upon the feeding schedule/length as the plants progress through the growth and flowering stages of the crop cycle, use with either Aqua pots, Punched pots (to be used with clay pebbles only) or Culture pots (for use with a layer of clay pebbles and a growing medium of your choice on top)  IWS only use high quality components and carry the CE mark of conformity.

Benefits

• Feeds the plants automatically;

• High-performance harvest-yielding system;
• Minimum risk of blockages;
• It's resistant and durable.

The Science

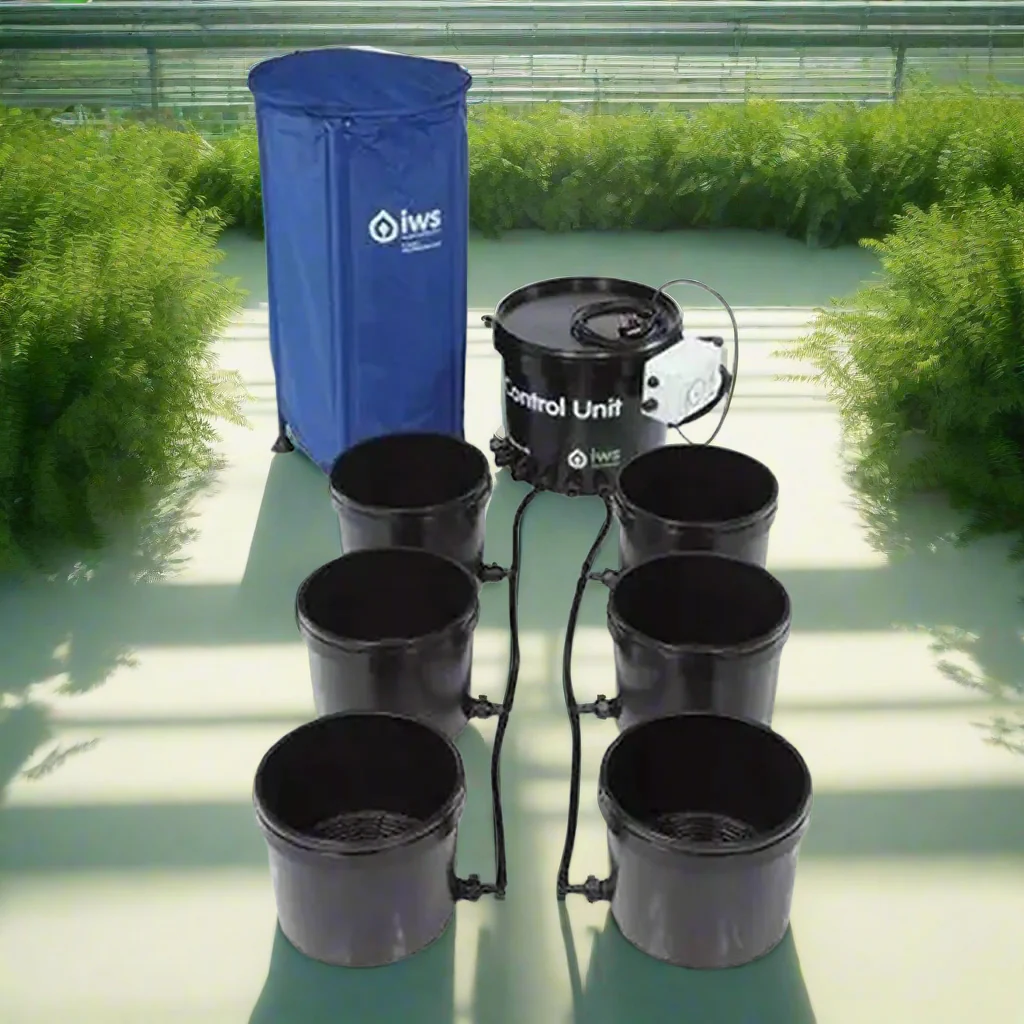

The flood and drain system is a fully integrated feed delivery solution, which easily adapts to your grow room. You can upgrade the modular layout and add new containers. Feed is pumped from the system's reservoir into the IWS Brain pot at specific times. The Brain pot is linked via pipework to the system's containers. The float switch found inside the Brain pot interrupts the flow of nutrients from the reservoir when the water level exceeds a specific level. Every container has 2 parts, respectively the "Inner" and "Outer" pots. The outer pots link to the system's pipes and fill up with feed solution while the system floods. The inner pots are found inside the outer pots and they're perforated. The inner pots contain the root-mass and growing media.

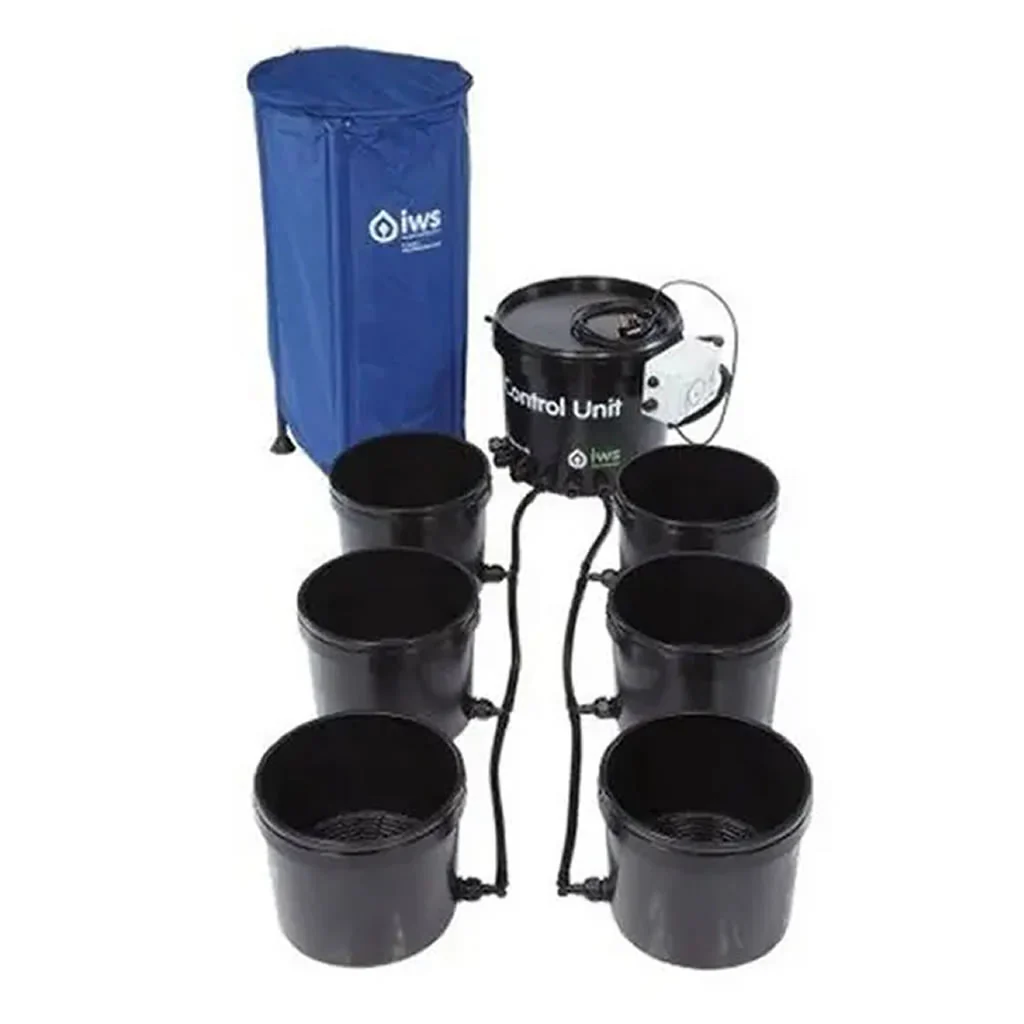

Supplied with:

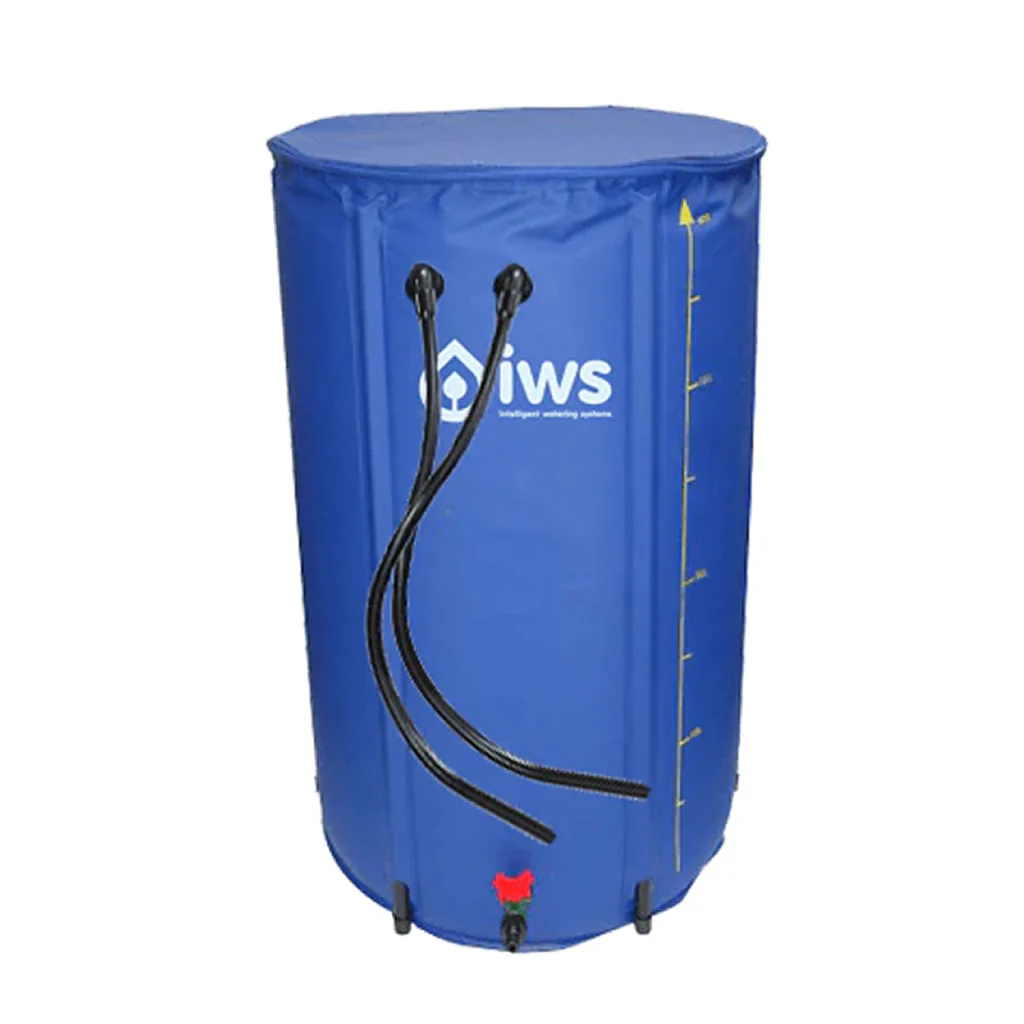

•          Water Butt Flexi Tank to suit system
•          MJ 1000 Water Pump long lead

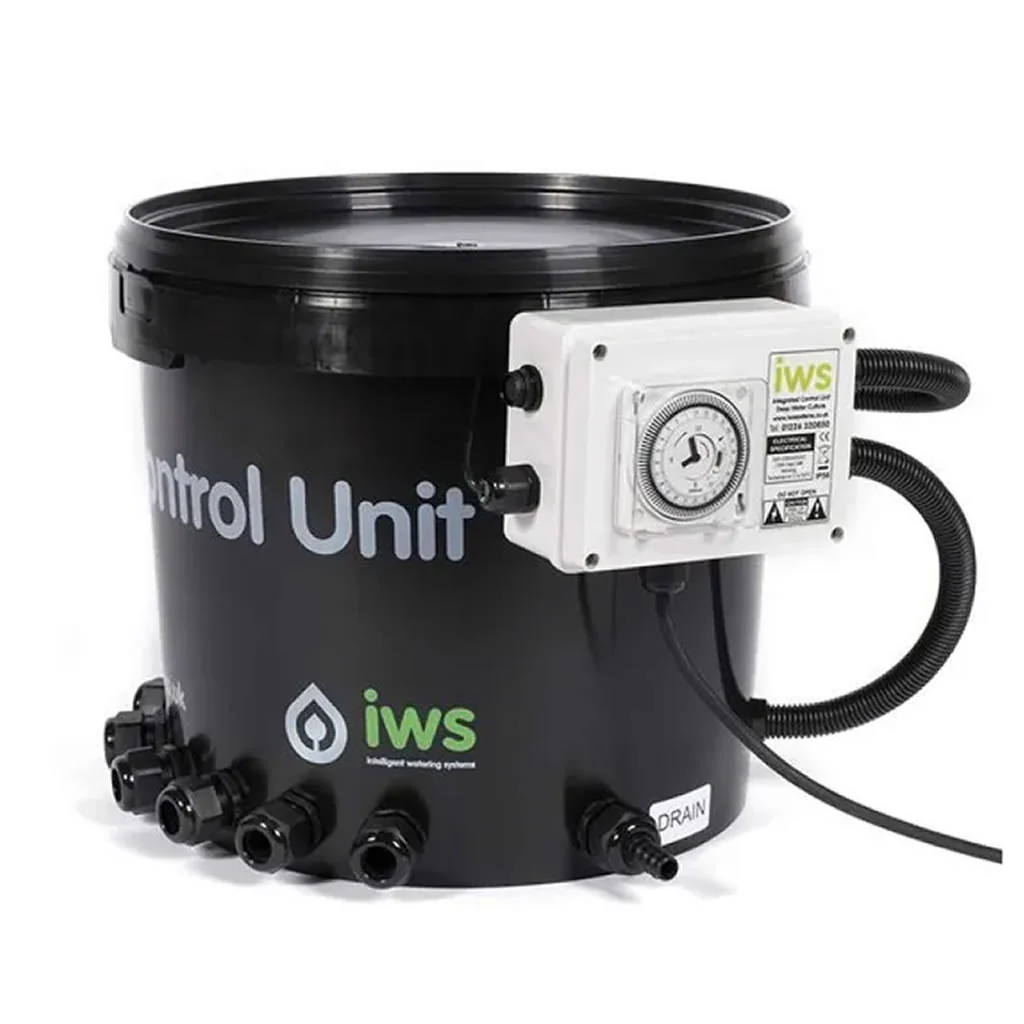

•          Basic brain pot with timer fitted to the side

•          IWS Elbows

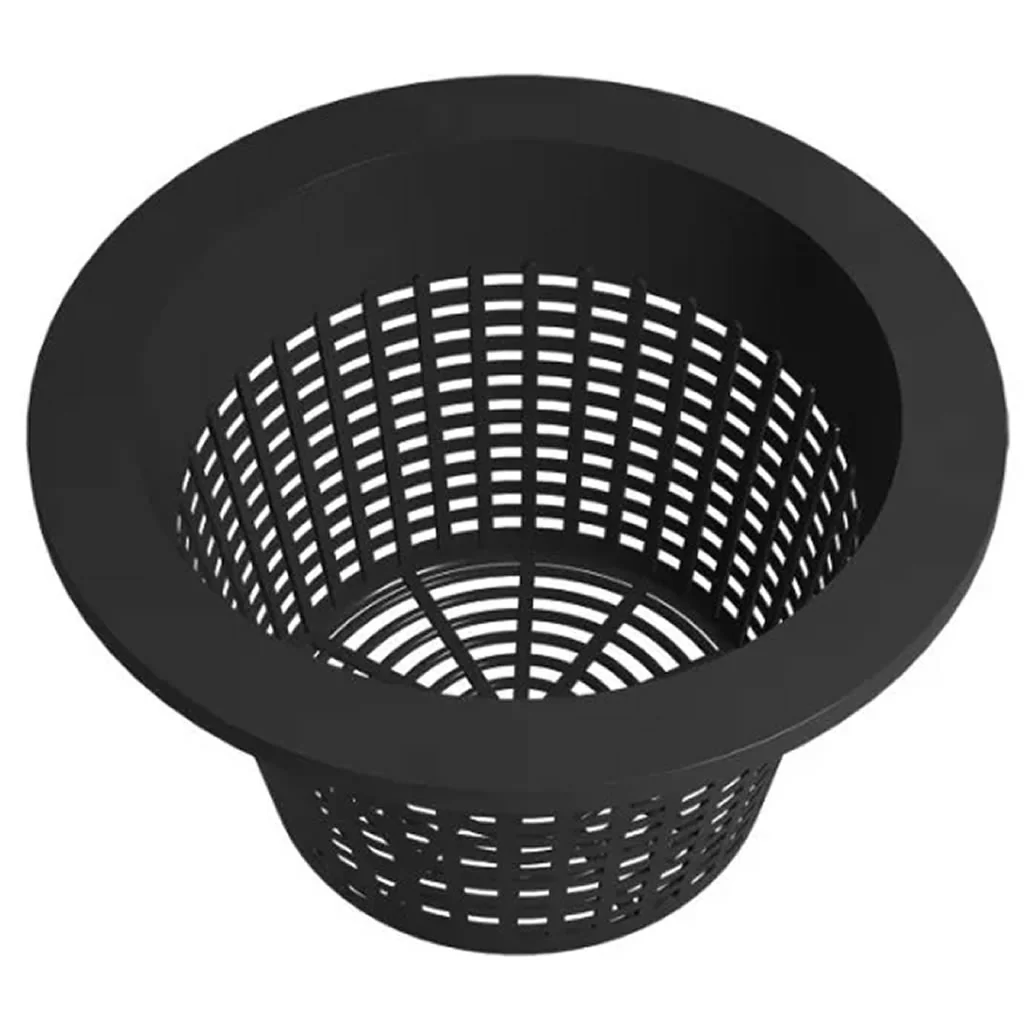

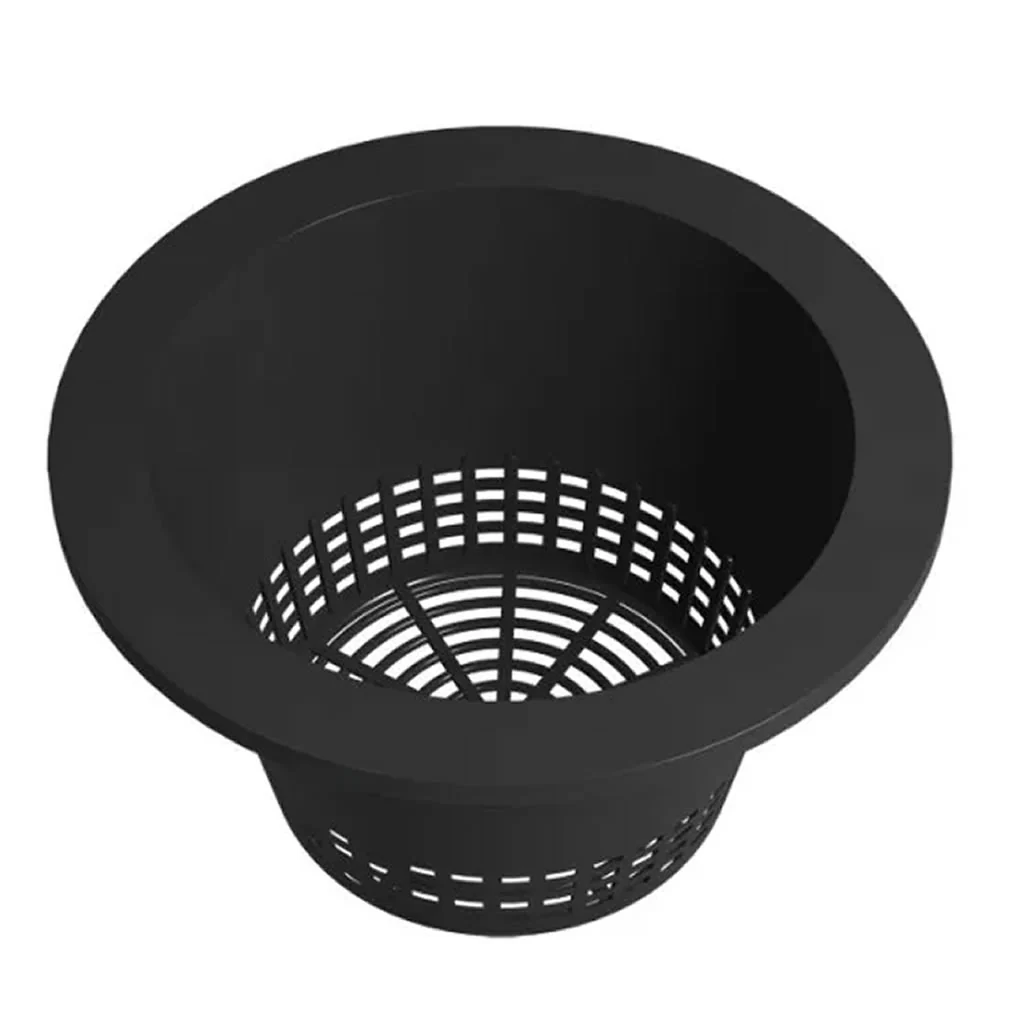

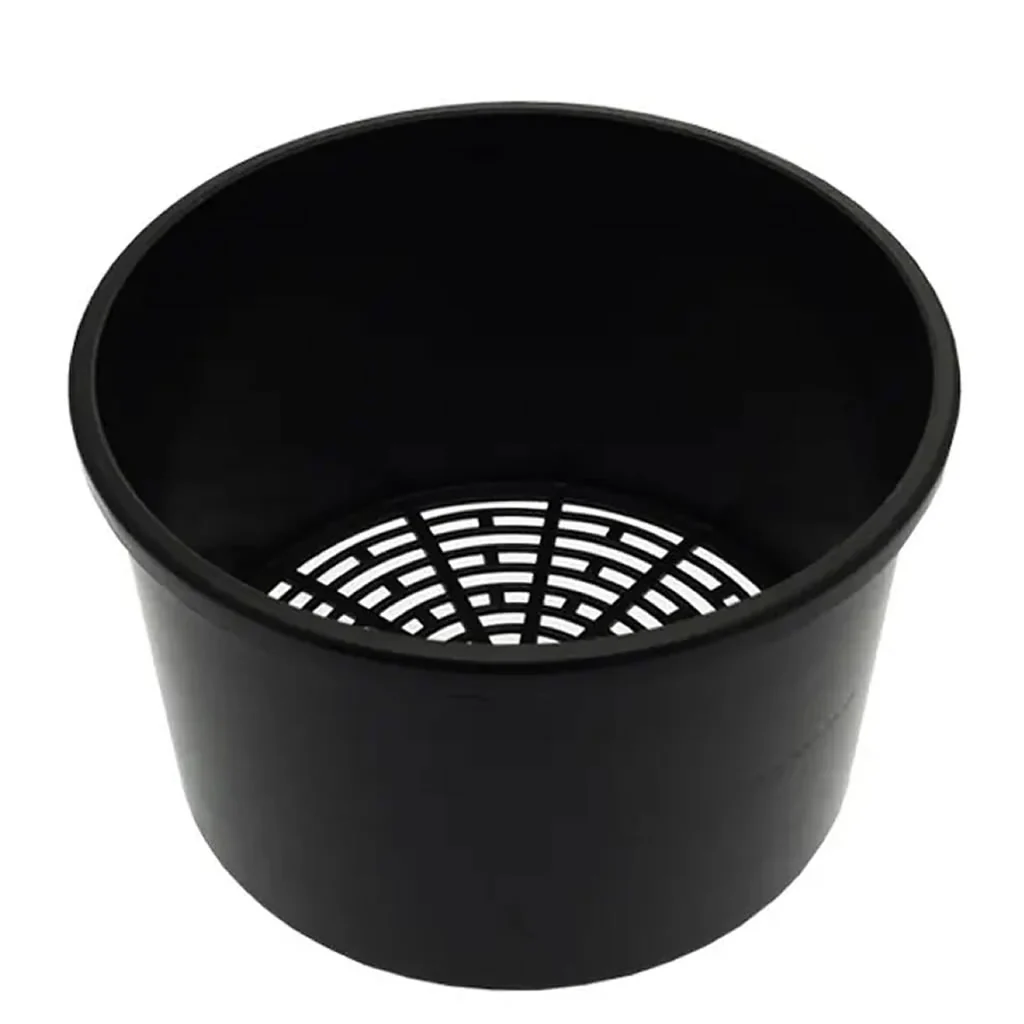

•          Pot assemblies (Outer pot, Inner pot of your choice, M25 Sealing gland)

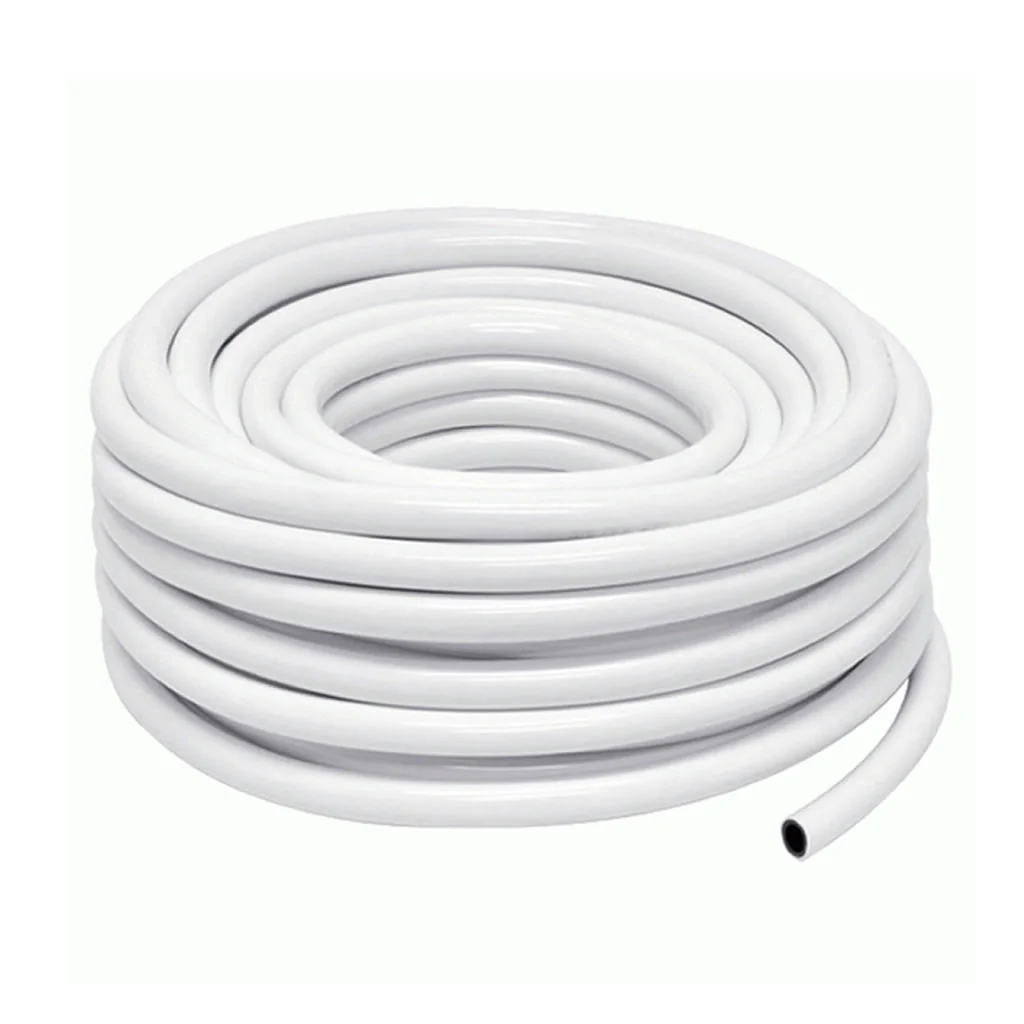

•          The basic system comes with 16mm ICELINE

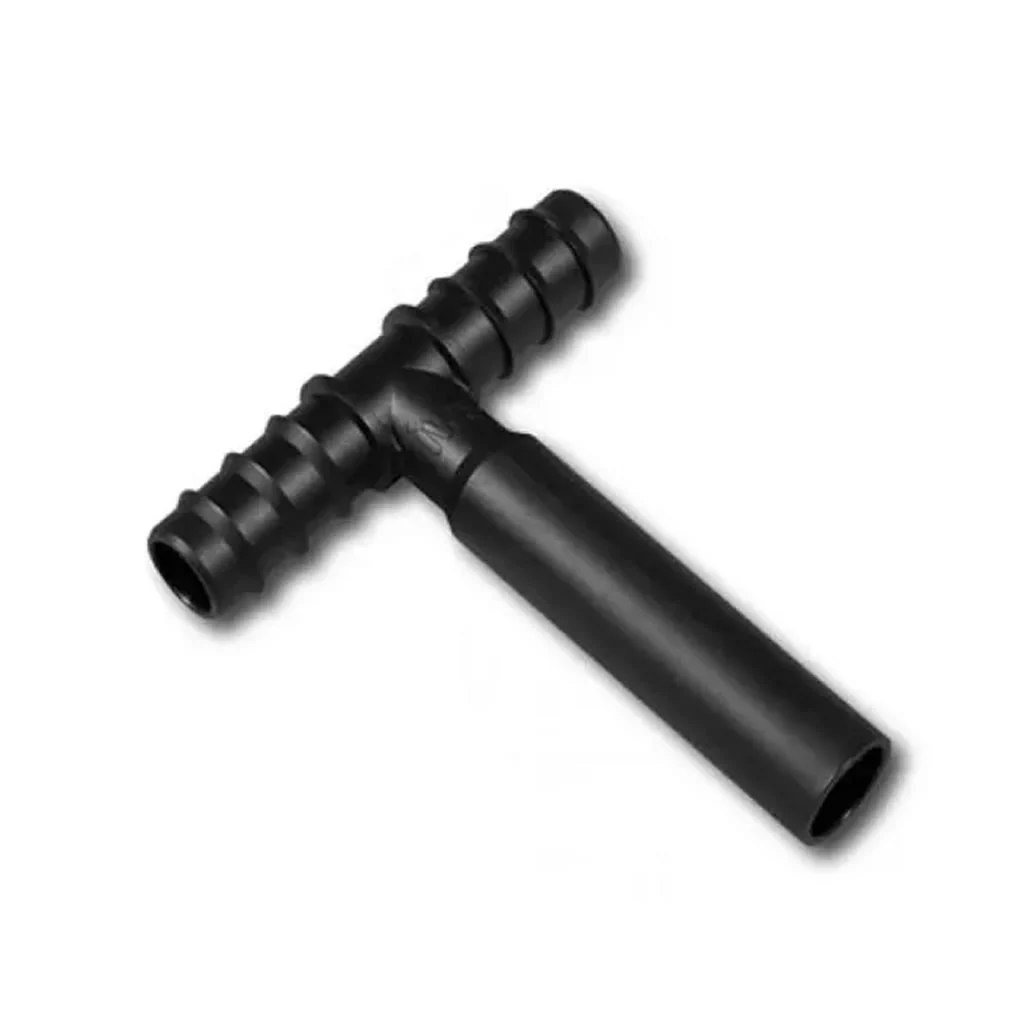

•          Anti Siphon Valve (2 Elbows, 1 x 16mm to 6mm T-Peice, 15cm of 16mm Ice line, 10cm of 6mm tube)
•          1 x 16mm barbed elbow per system for the return irrigation pipework
•          This Basic System Does not include Pot Stands (Click here to purchase Pot Stands)
•          This Basic System Does not include Copper Root Control Discs (Click here to purchase Copper Discs)


Easy to extend with the 1 pot extension kit



 Instruction Manual

Download Here

Tank Sizes Included with Kits:

Number of Pots	Tank Size Included
6	100L
12	250L
18	250L
24	250L
36	400L
48	400L
