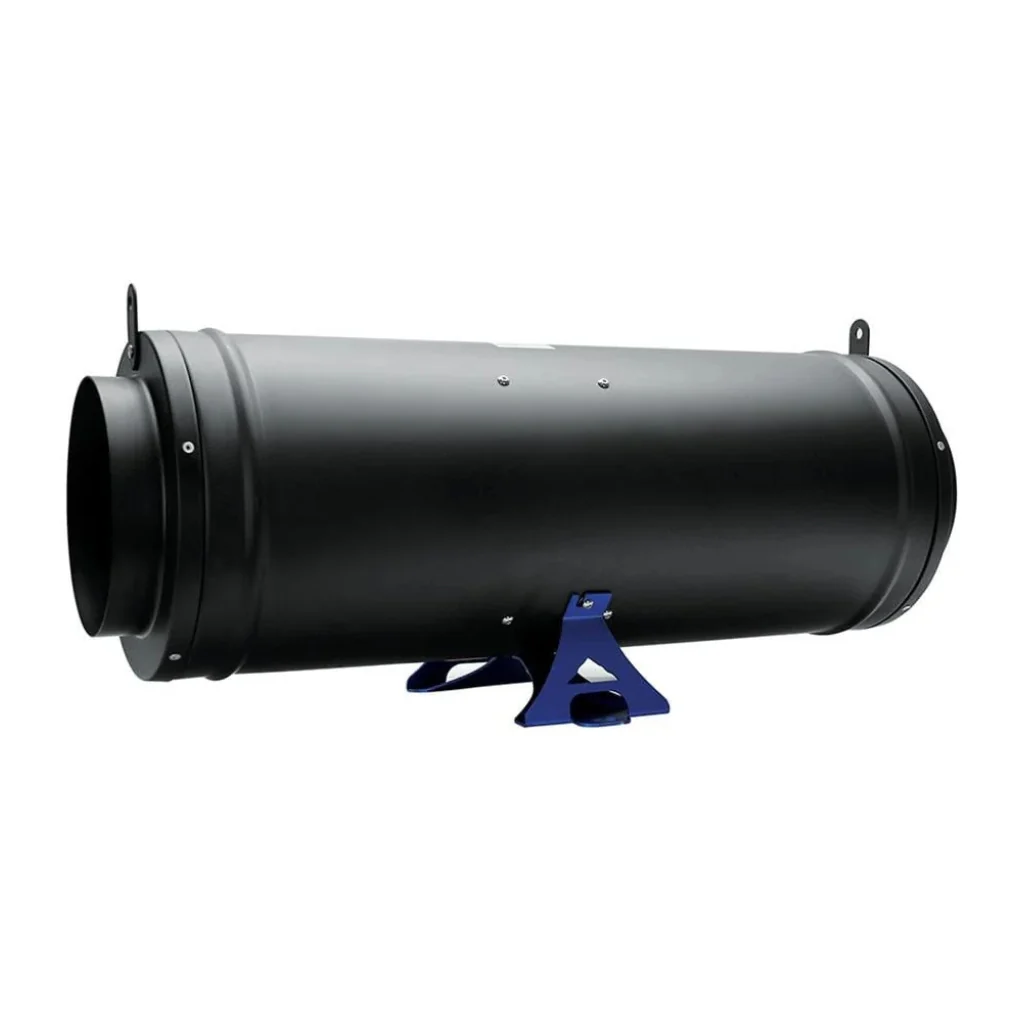

The pinnacle of current fan technology,  Mountain Air® EC Whisper Silencer High-Speed Fans represent the ideal solution for those looking to combine high performance with whisper-quiet operation. The dual impeller and turbine-style inlet are designed to optimise pressure throughout the fan housing, improving airflow when paired with long or complex ducting runs. Courtesy of the insulated housing, the EC Whisper High-Speed fan delivers class-leading performance whilst remaining near-silent even at full power.

• Air transfer or extraction
• Class leading performance
• Duel impeller and turbine style inlet
• Professional and hobbyist gardens
• High power output with whisper-quiet operation
• Ideal for systems requiring shorter ducting lengths
• Optimised pressure within fan housing improves air flow

​

High-Speed EC Motor

This fan incorporates a digital, EC (Electronically Com-mutated) DC motor that provides superior performance and efficiency beyond what is possible with traditional AC motors. The High-Speed motor is further boosted by flow-conditioners that are built into the fan housing. These conditioners work to stabilize the air as it exits the fan housing, resulting in a more concentrated and powerful column of air.

​

3-Mode Environmental Controller

A digital 3-mode Environmental Controller is included to provide the user with total control. One mode allows for manual control of the fan’s speed, while two thermostat-controlled modes either turn off the fan, or reduce its speed when the temperature of the room falls below set temperature.



Technical Specifications:

6"

SPECIFICATION	220-240V	110-120V
FAN SIZE	150mm	6"
MAX. AIRFLOW	594m3/h	350CFM
MAX. STATIC PRESSURE	472Pa	0.0685psi
MAX. CURRENT	0.5A	0.6A
PHASE	3	3
FREQUENCY	50Hz	60Hz
OPERATING TEMP.	-10~+60°C	+14~+140°F
POWER	45W	45W
MAX. SPEED	4800RPM	4800RPM
MAX SOUND OR NOISE	37dBA	37dBA
CERTIFICATE	UL94V-0	UL94V-0
INSULATION TYPE	CLASS A	CLASS A
IP RATING	IPX4	IPX4

8"

SPECIFICATION	220~240V	110~120V
FAN SIZE	200mm	8"
MAX. AIRFLOW	1205m3/h	710CFM
MAX. STATIC PRESSURE	498Pa	0.0722psi
MAX. CURRENT	0.88A	1.20A
PHASE	3	3
FREQUENCY	50Hz	60Hz
OPERATING TEMP.	-10~+60°C	+14~+140°F
POWER	75W	0.0722psi
MAX. SPEED	3800RPM	3800RPM
MAX SOUND OR NOISE	37.5dBA	37.5dBA
CERTIFICATE	UL94V-0	UL94V-0
INSULATION TYPE	CLASS A	CLASS A
IP RATING	IPX4	IPX4

10"

SPECIFICATION	220~240V	110~120V
FAN SIZE	250mm	10"
MAX. AIRFLOW	1808m3/h	1065CFM
MAX. STATIC PRESSURE	494Pa	0.0716psi
MAX. CURRENT	1.38A	2.00A
PHASE	3	3
FREQUENCY	50Hz	60Hz
OPERATING TEMP.	-10~+60°C	+14~+140°F
POWER	135W	135W
MAX. SPEED	3200RPM	3200RPM
MAX SOUND OR NOISE	40.5dBA	40.5dBA
CERTIFICATE	UL94V-0	UL94V-0
INSULATION TYPE	CLASS A	CLASS A
IP RATINGS	IPX4	IPX4
