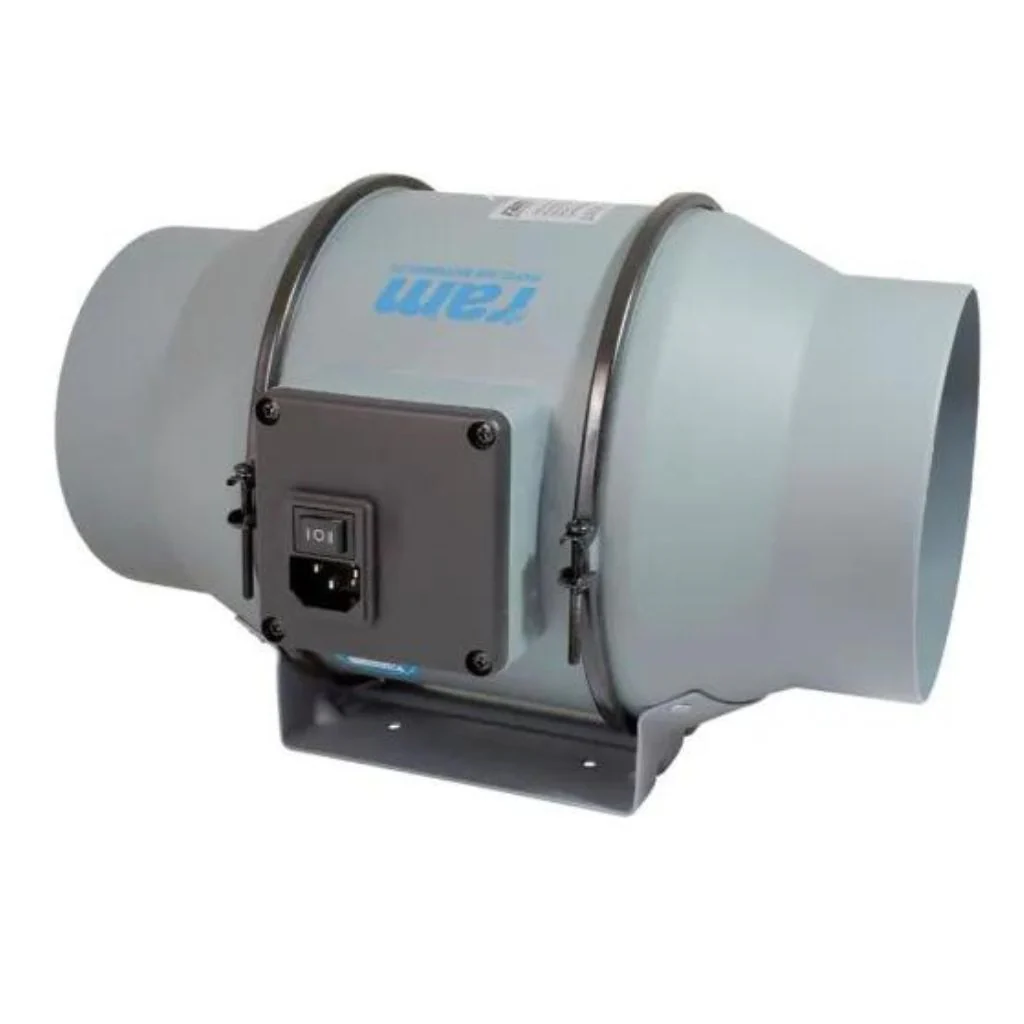

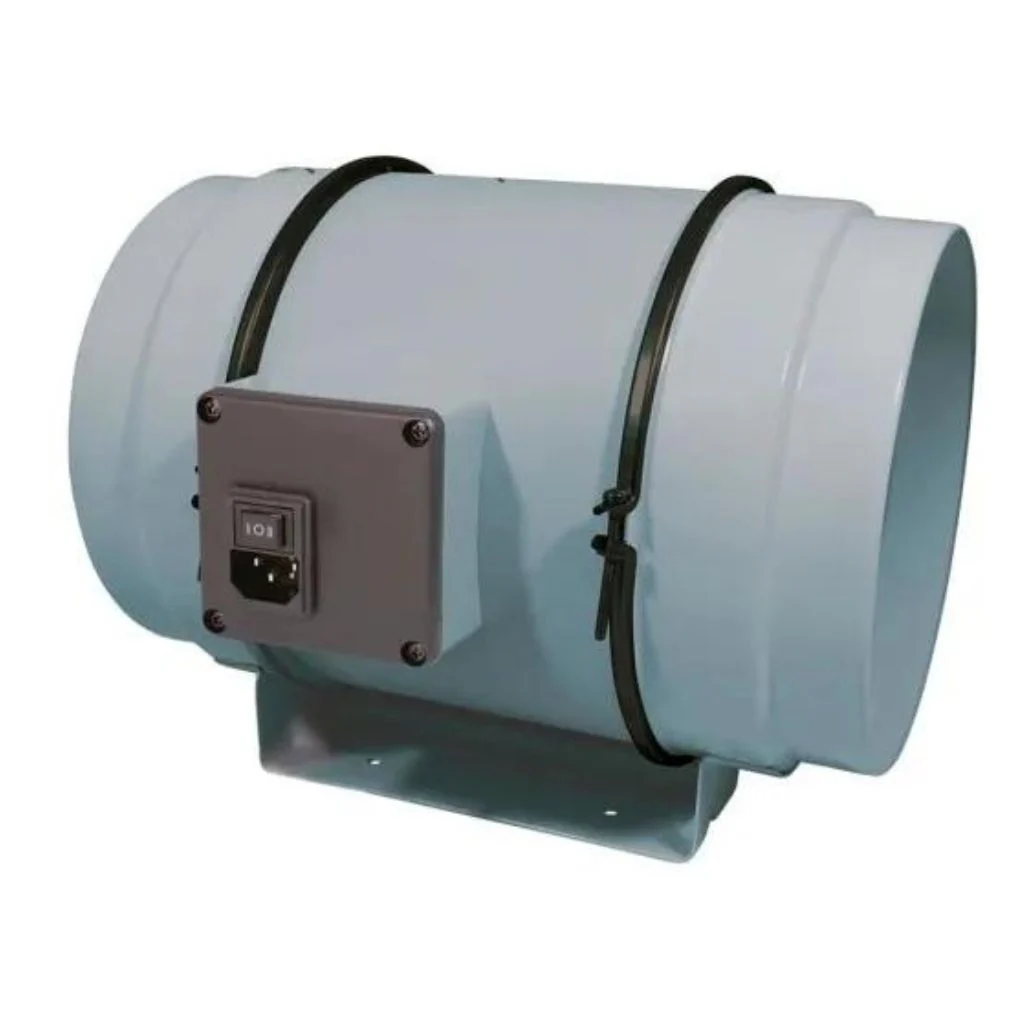

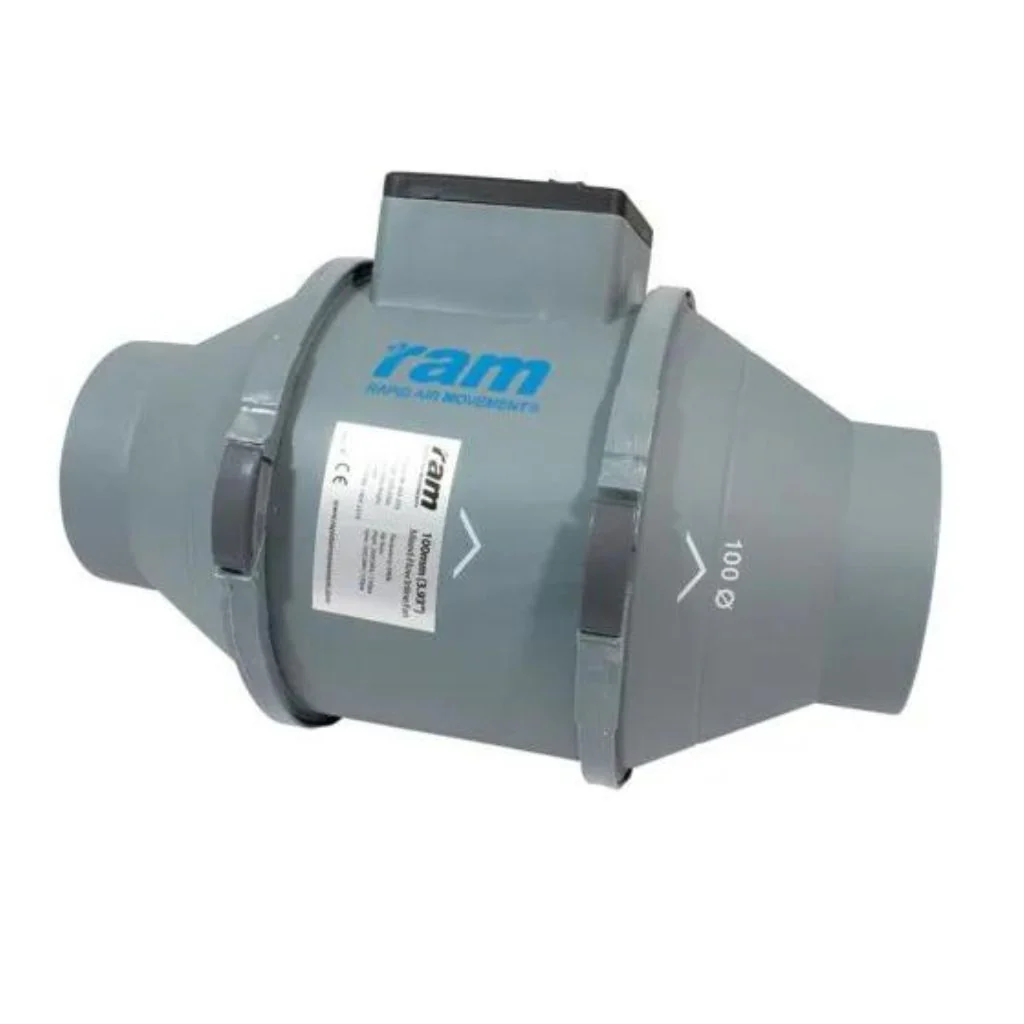

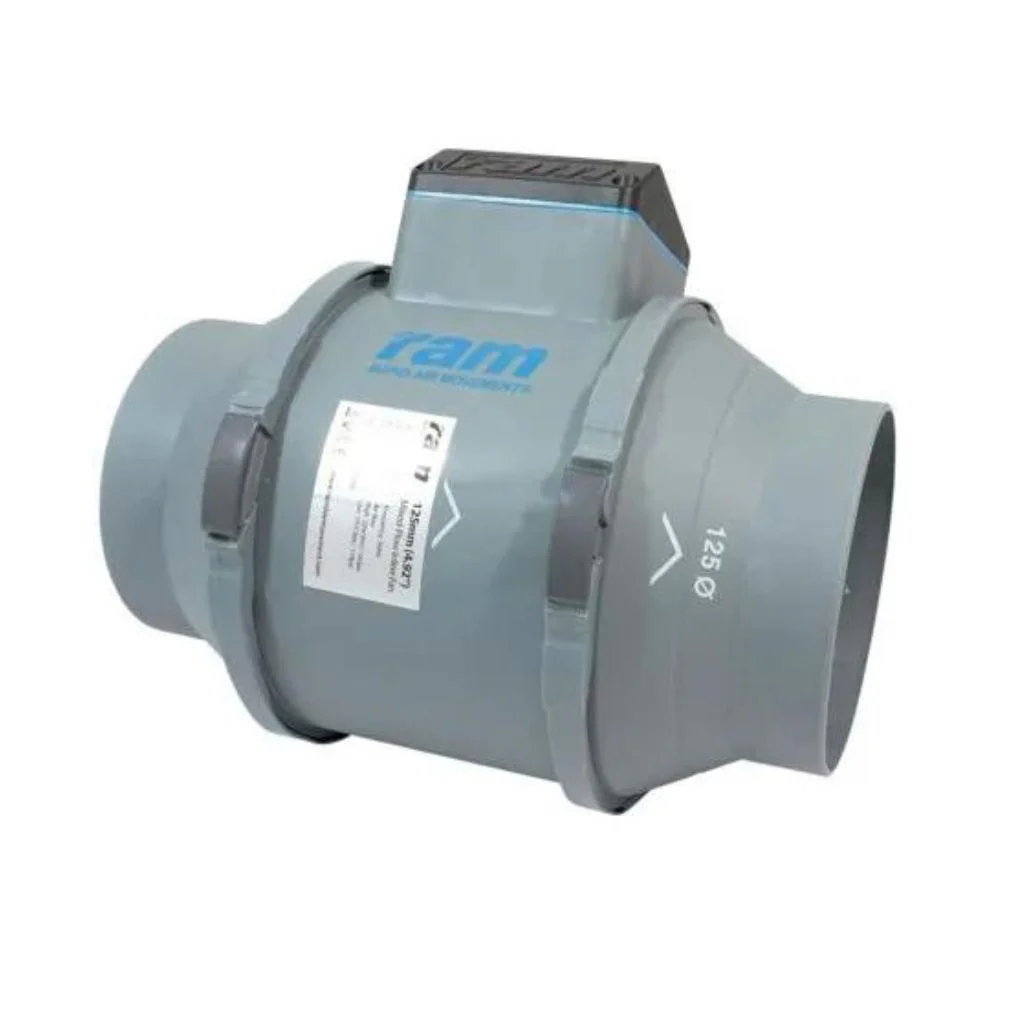

RAM Mixed-Flow inline Fan
A switched two speed mixed-flow inline fan which is optimised design for high pressure and quiet air movement. The RAM Mixed-Flow Inline fan has an integral mounting bracket and is fitted with an IEC Socket. (Comes with power cable)
| Variable speed | High Speed | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Size | Op. temp range | Protection class | Impeller | Power consumption | Current (A) | RPM | Airflow | Power consumption | Current (A) | RPM | Airflow |
| 100mm | -20â°C - 50â°C | IP44 | ABS | 28W | 0.12 | 2210 | 199m3/hr | 25w | 0.11 | 1900 | 165m3/hr |
| 125mm | -20â°C - 50â°C | IP44 | ABS | 35w | 0.12 | 2520 | 225m3/hr | 30w | 0.11 | 2250 | 248m3/hr |
| 150mm | -20â°C - 50â°C | IP44 | ABS | 54w | 0.23 | 2550 | 517m3/hr | 54w | 0.2 | 2050 | 398m3/hr |
| 200mm | -20â°C - 50â°C | IP44 | ABS | 125w | 0.57 | 2300 | 840m3/hr | 123w | 0.52 | 1900 | 690m3/hr |
Select Size
From $19.52
Original: $55.78
-65%RAM Mixed-Flow inline Fanâ
$55.78
$19.52Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
A switched two speed mixed-flow inline fan which is optimised design for high pressure and quiet air movement. The RAM Mixed-Flow Inline fan has an integral mounting bracket and is fitted with an IEC Socket. (Comes with power cable)
| Variable speed | High Speed | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Size | Op. temp range | Protection class | Impeller | Power consumption | Current (A) | RPM | Airflow | Power consumption | Current (A) | RPM | Airflow |
| 100mm | -20â°C - 50â°C | IP44 | ABS | 28W | 0.12 | 2210 | 199m3/hr | 25w | 0.11 | 1900 | 165m3/hr |
| 125mm | -20â°C - 50â°C | IP44 | ABS | 35w | 0.12 | 2520 | 225m3/hr | 30w | 0.11 | 2250 | 248m3/hr |
| 150mm | -20â°C - 50â°C | IP44 | ABS | 54w | 0.23 | 2550 | 517m3/hr | 54w | 0.2 | 2050 | 398m3/hr |
| 200mm | -20â°C - 50â°C | IP44 | ABS | 125w | 0.57 | 2300 | 840m3/hr | 123w | 0.52 | 1900 | 690m3/hr |
