Awarded design, superb functionality

EXPERIENCE THE PERFECT TRIMMING

The unrivalled industrial design of Automatic Trimmer L® will make your trimming easier than ever.

DELIVER A GREAT PRODUCT

Perfectly trimmed flowers satisfy your customers, so they won‘t want to change their supplier. It makes you more competitive. It‘s a key factor in your business success, and Automatic Trimmer L® will make it happen.

ACCELERATE BUSINESS

Let the machine work for you. By automating your harvest process, you save a large amount of human labor as well as time that you can further invest in your customers and their development.

MOVE TO ANOTHER LEVEL

With a trimming capacity as much as 12 kg/hour WET and 4 kg/hour DRY thanks to superb industrialm design, the Automatic Trimmer L takes your busines to another level.

AUTOMATIC TRIMMER L® IN DETAIL

A perfect choice for mid-sized growers focused on productivity.

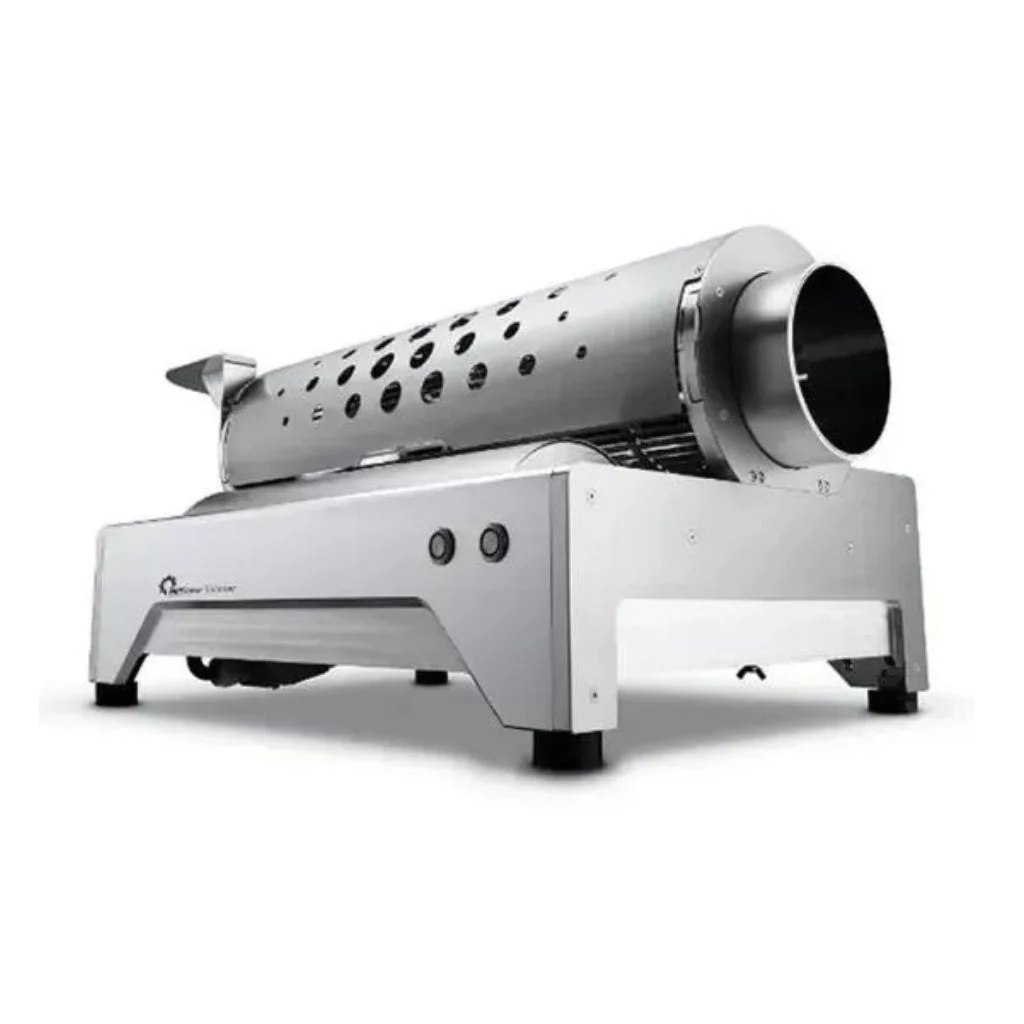

A unique and fully automated device with the trimming capacity of as much as 12 kg per hour. Flowers are loaded into a stainless steel hopper and moved further into a stainless steel tumbler where they are trimmed. A tumbler with a diameter of 126 mm provides enough capacity for the most demanding professional growers‘ needs.

The flowers are rotated in the tumbler and slowly moved through. The adjustable blades allow you to precisely set the trimming gap between the blade and the reel, so the cuts are clean. With a trimming distance of 1 mm, you achieve perfectly trimmed buds.

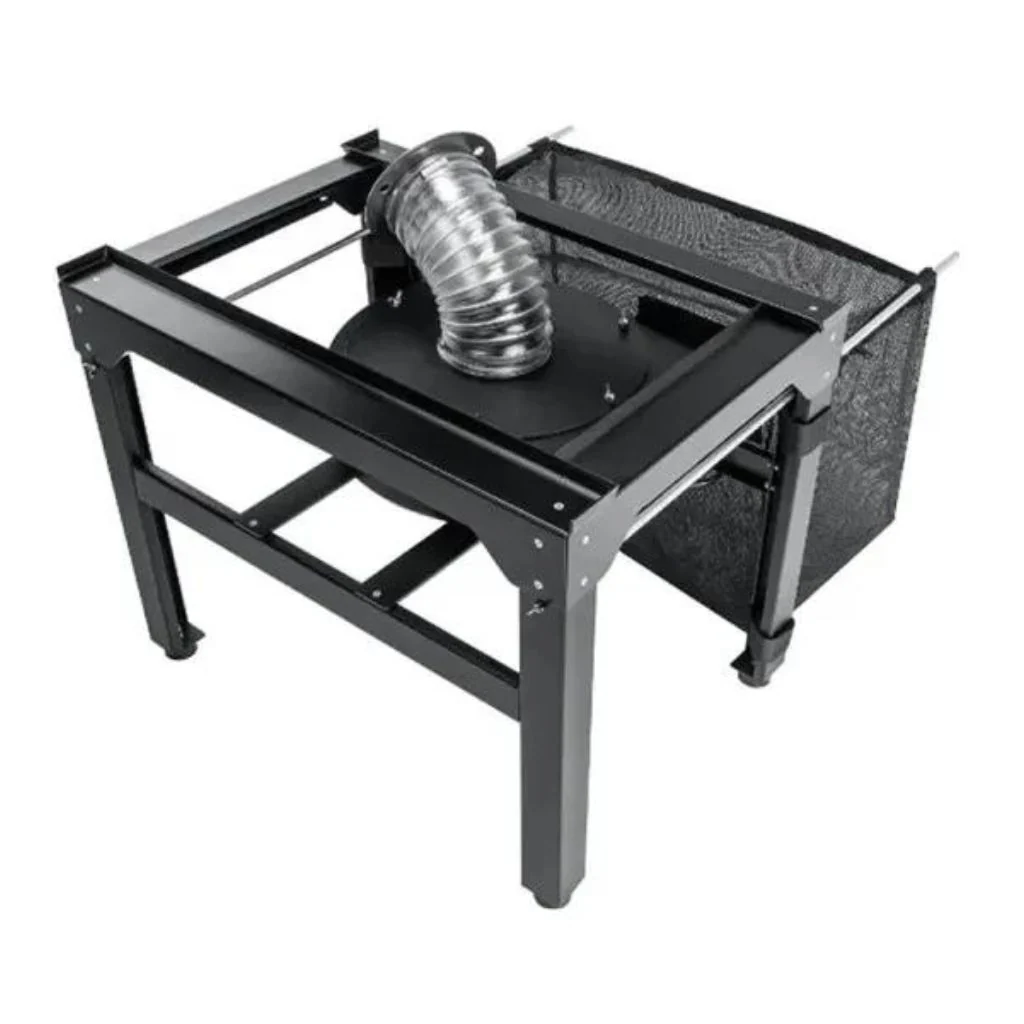

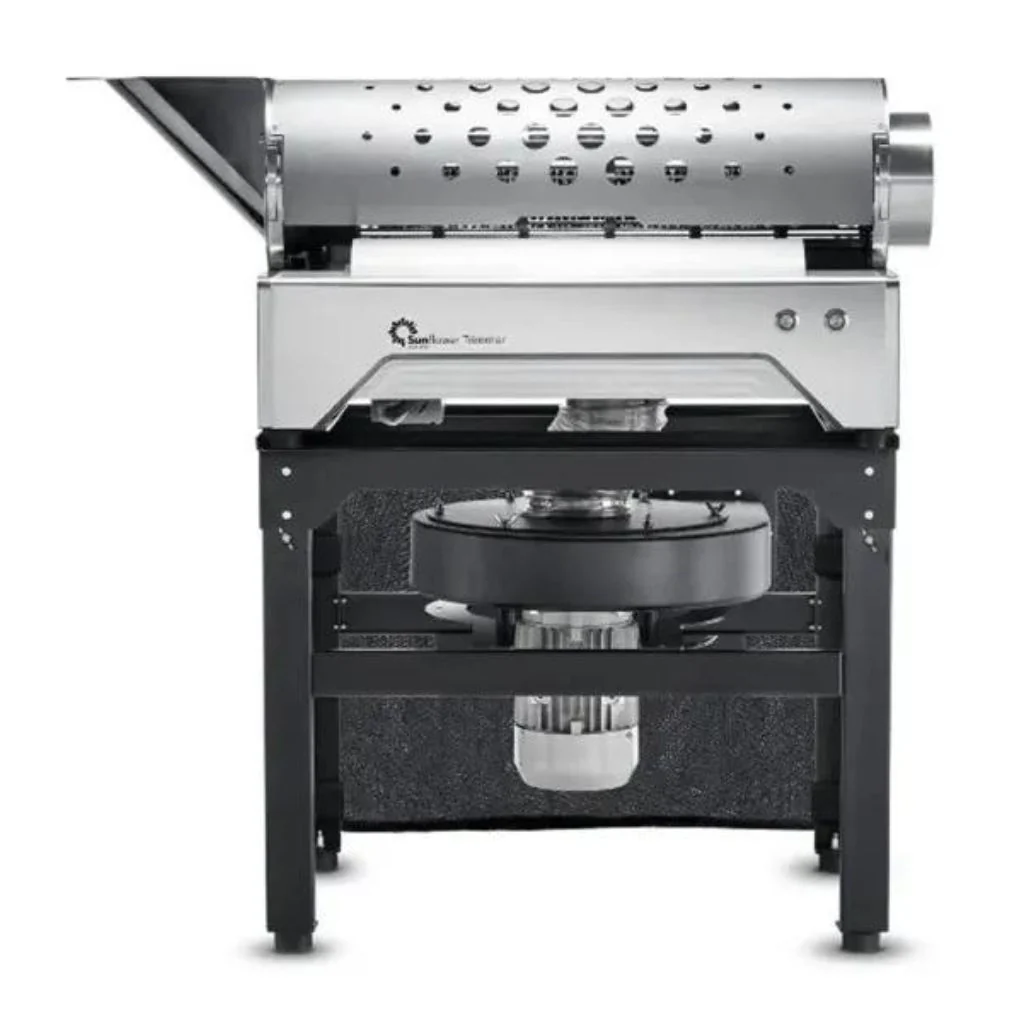

The Automatic Trimmer L® is placed on a Workstation XL® through which a powerful suction system with a capacity of 1,400 Pa is connected.

This system, powered by a high quality engine, helps to move flowers smoothly through the whole trimming process.

Waste materials like leaves and stems are automatically moved into a leaf bag.

With an overall weight of 80 kg, Automatic Trimmer L® is a robust, yet fully portable solution.

TECHNICAL SPECIFICATIONS:

• Device size (h,w,d): 91x65x48 cm
• Device weight: 80 kg
• Shipping size: 120x80x60 cm
• Shipping weight: 90 kg
• Wet trimming capacity: 8-12 kg/h
• Dry trimming capacity: 2-3 kg/h
• Input voltage: 230 V
• Input frequency: 50 Hz
• Motor current: 1,4 A
• Motor output: 0.25 kW
• Motor IP rating: 55
• Motor rotation: 1365 min-1
• Reel rotation: 1250 min-1
• Tumbler rotation: 100 min-1
• Tumbler diameter: 220 mm
• Reel length: 542 mm
• Trimming surface length: 542 mm
• Blade distance: 1 mm
• Reel blades: 10
• Fan Air output: 1020 m3/h
• Fan Max. suction: 1400 Pa
• Fan input power: 0.55 kw
• Fan motor current: 6 A
• Fan motor IP rating: IP 55
• Fan motor rotation: 2800 rpm
• Inlet neck diameter: 100 mm
