The TrolMaster OA6-24 Control Board is a state-of-the-art device for precise control over environmental factors in indoor gardening. It allows users to monitor and regulate temperature, humidity, CO2 levels, lighting schedules, and more. With seamless integration and expandability, it suits both small-scale and commercial setups. Its durability, data logging, and remote access capabilities provide convenience and peace of mind. Achieve optimal plant growth and higher yields with the TrolMaster OA6-24 Control Board.

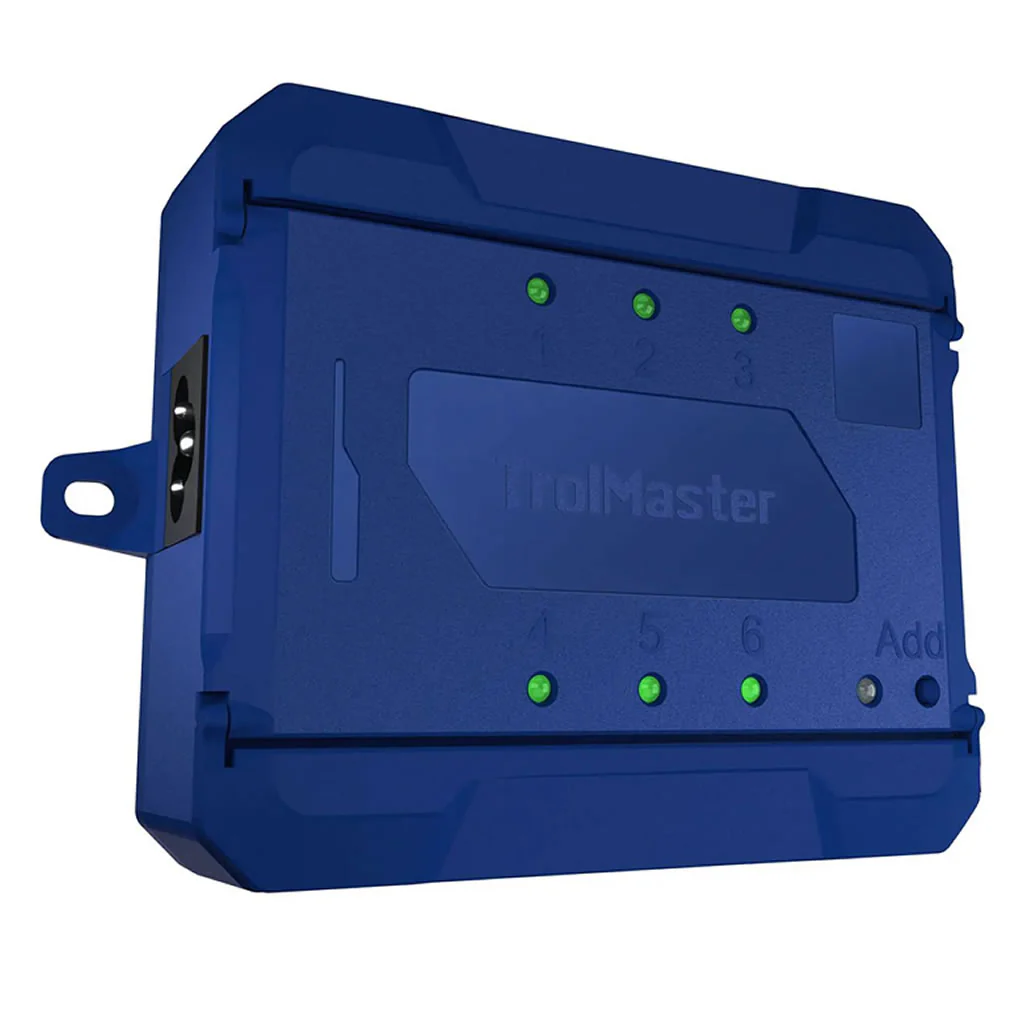

The OA6-24 Control Board is Designed to Control Multiple 24vac Solenoid Valves.

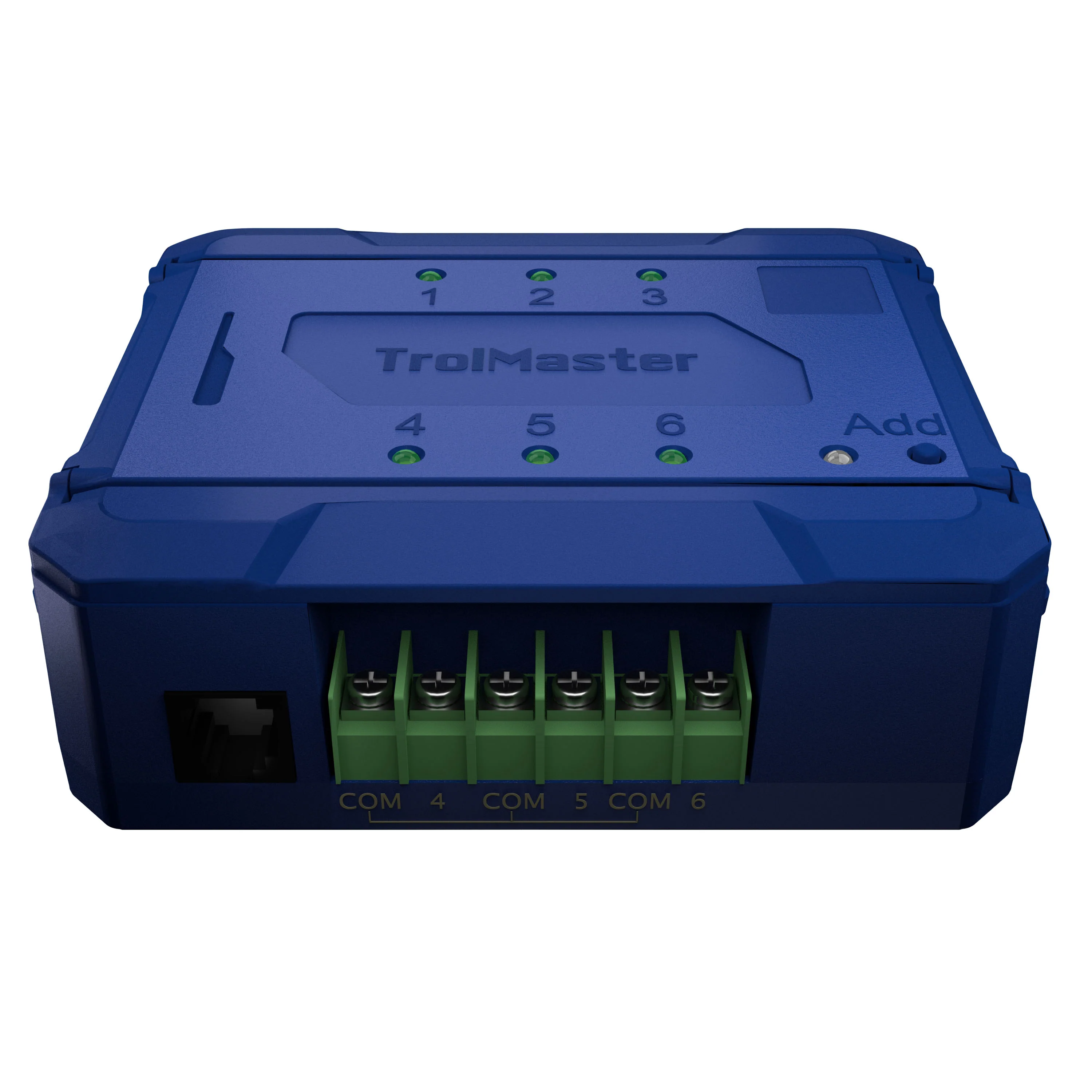

It provides an easy and efficient method to control up to 6 valves… each with individual timer settings. Up to 5 OA6-24 can be connected to a single Aqua-x providing a maximum of 30 individually controlled outputs to connect to your solenoid valves. The Aqua-x can also provide a “master pump link” by using a DSP-1 along with the OA6-24. Connecting a DSP-1 to the OA6-24 provides an automatic “pump link” between the DSP-1 and the OA6-24. When any of the 24vac irrigation zones are activated on the OA6-24, the DSP-1 will automatically turn on the pump.

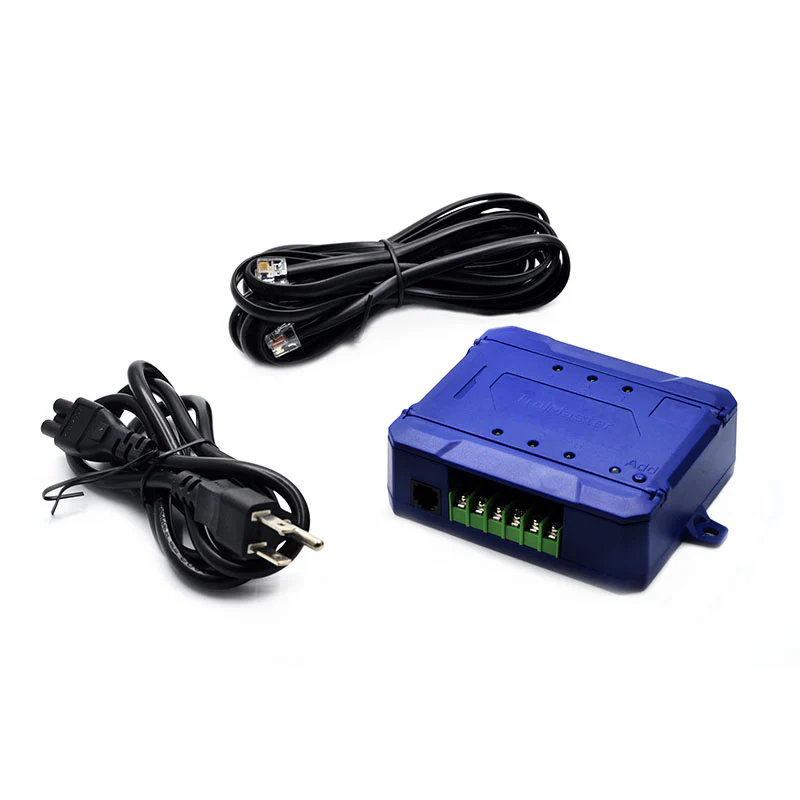

Contents

1 x 24V Control Board

1 x 16ft RJ12 Cable

Specifications

Specification	Details
Input Voltage	110-240 VAC
Max Input Current	0.42A
Max Output Voltage/Current	24VAC/0.15A per output
Working Environments	Temperature 32°-122°F, Humidity=90%
Packaging Dimensions	275mm (L) x 164mm (W) x 40mm (H)
