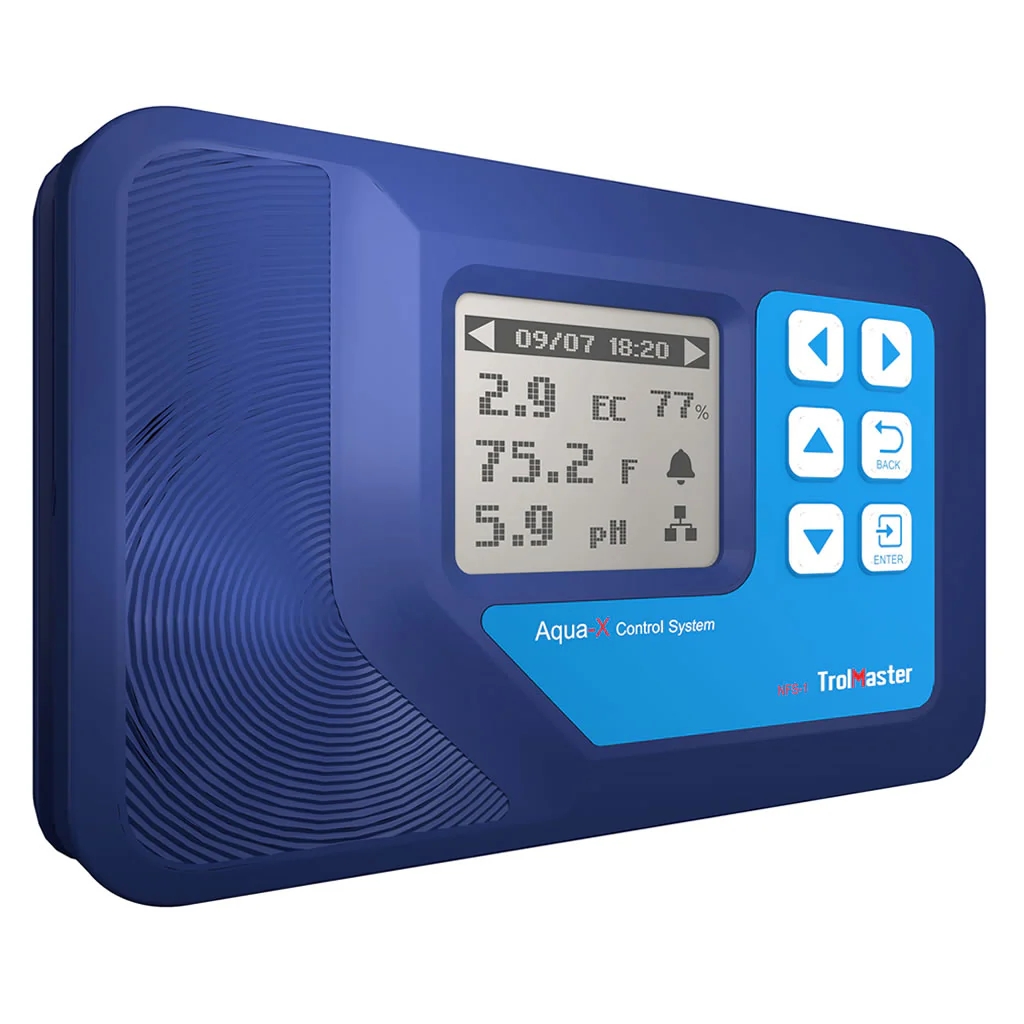

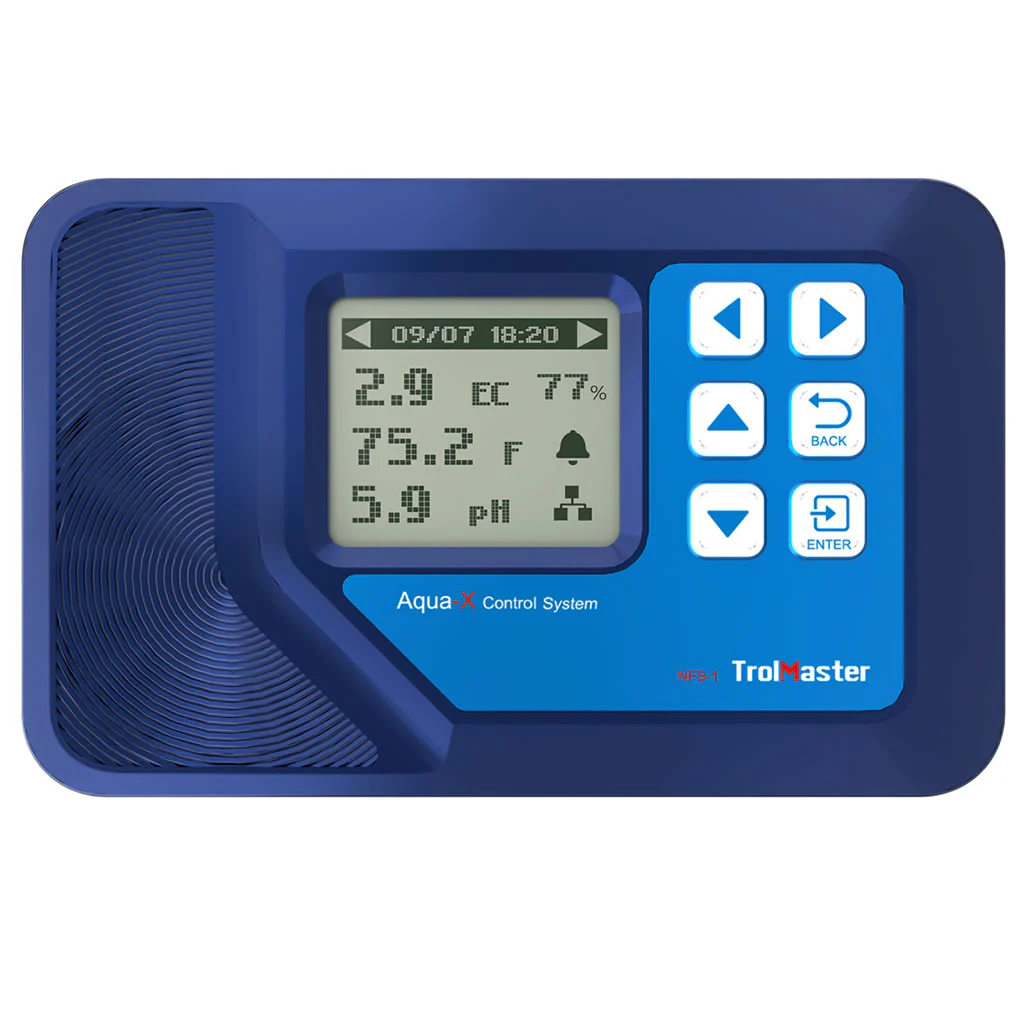

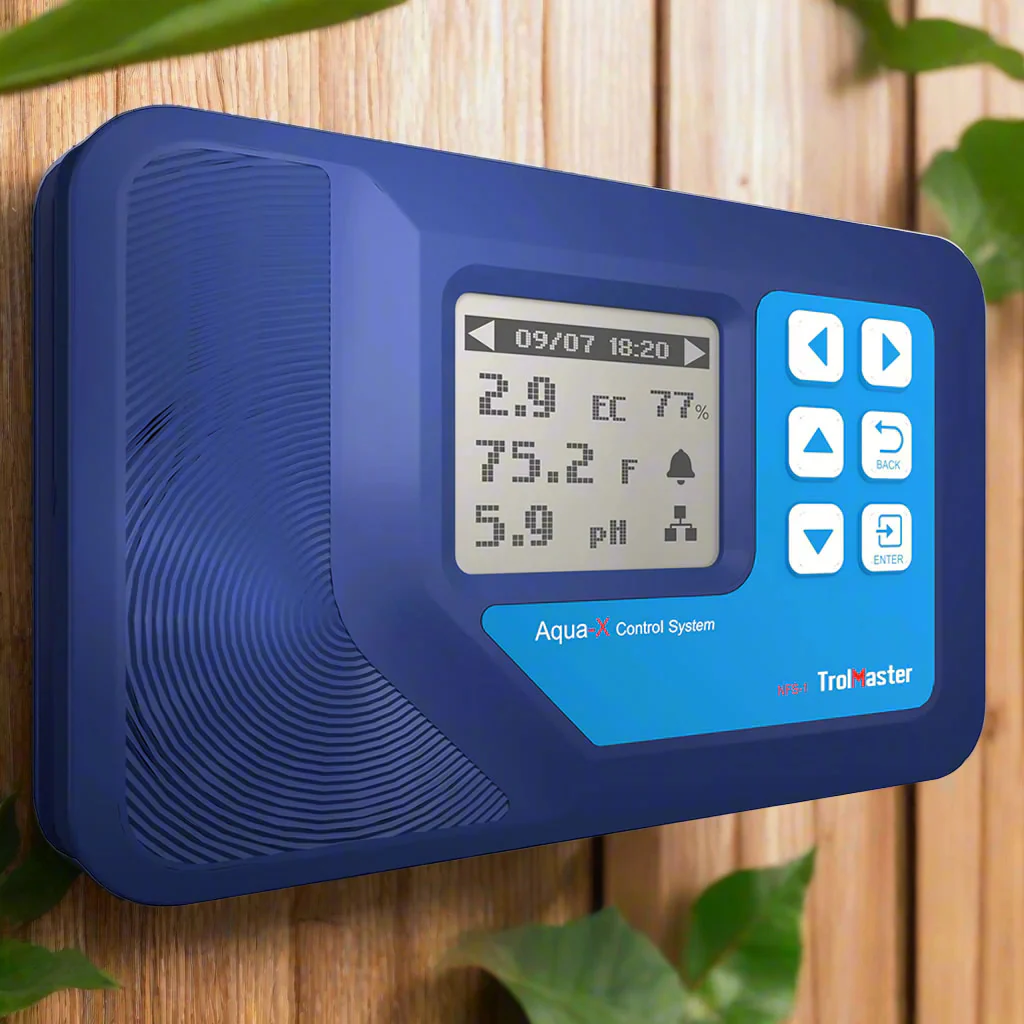

The TrolMaster Aqua-X Irrigation Control System (NFS-1) is a professional-grade, fully customizable modular system designed to streamline and enhance irrigation management. Its user-friendly installation and expandable design make it ideal for both small-scale and large-scale operations.

Key Features

• Comprehensive Control: Manages up to 30 separate irrigation zones, accommodating both 24V AC solenoid valves and 110V AC pumps, providing flexibility for various irrigation setups.
• Advanced Monitoring: Monitors pH, EC, water temperature, and moisture levels using up to 8 Water Content Sensors, ensuring optimal conditions for plant growth.
• Flexible Scheduling: Features timers that can be configured as recycling timers or set to operate at specific times and durations, allowing precise irrigation scheduling tailored to your plants' needs.
• Remote Access: Compatible with the TrolMaster app, enabling you to access all settings and receive alerts from anywhere at any time.

Specifications

Specification	Details
Input Voltage	100-240V AC, 50/60Hz
24V Control Board (OA6-24)	Supports up to 5 units per system (each with 6 outputs)
110V Control Board (OA6-110)	Supports up to 5 units per system (each with 6 outputs)
Program Device Station (DSP-1)	Supports up to 5 units per system
Water Detectors	Supports up to 30 units per system
Water Content Sensors	Supports up to 8 units per system
Sensor Board (AMP-2)	Supports 1 unit per system
EC/Temp Sensor (PCT-1 or PCT-2)	Supports 1 unit per system
pH Sensor (PPH-1 or PPH-2)	Supports 1 unit per system
Display	LCD Display with 6-button interface
App Compatibility	Free TrolMaster app for remote monitoring and control

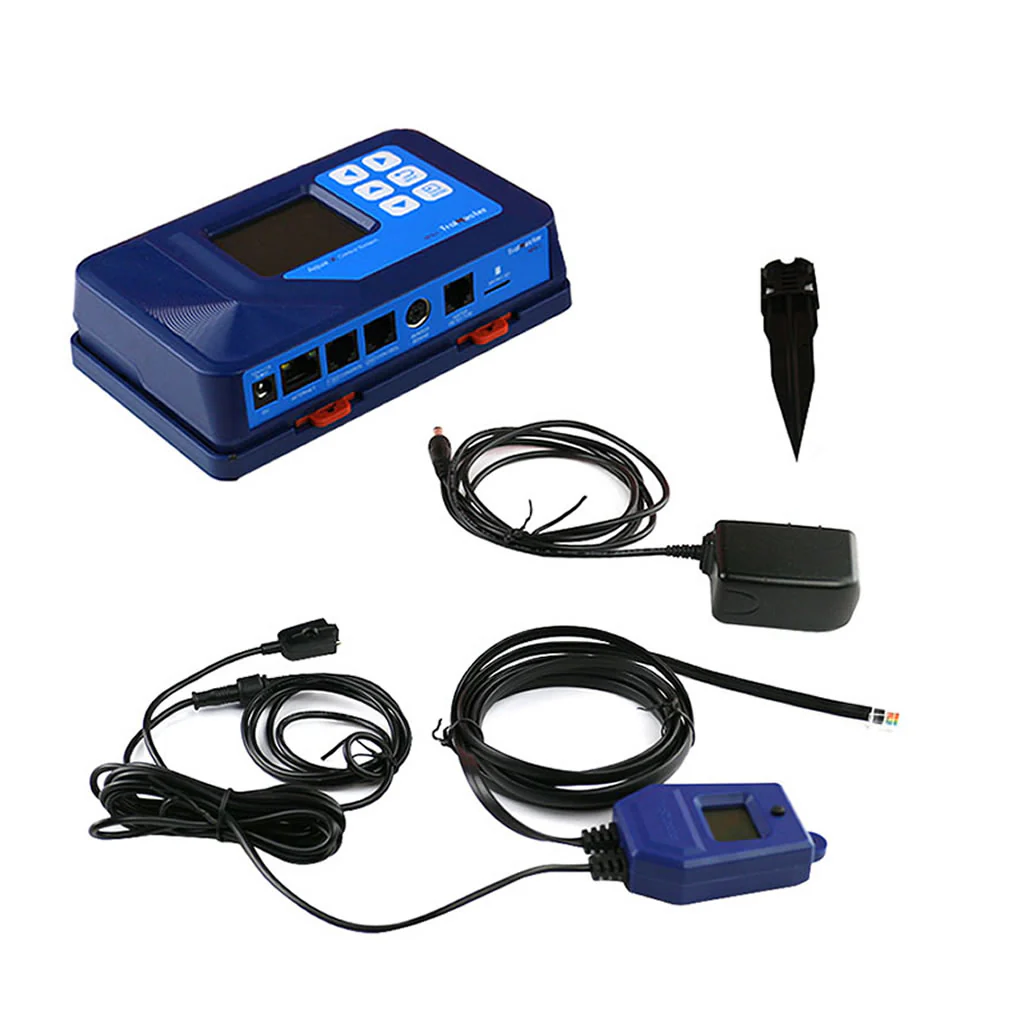

Package Includes

• 1 x Aqua-X Irrigation Controller
• 1 x Water Detector
• 1 x Touch Spot
• 1 x 12V Power Adapter

Important Notes

• Internet Connection: The Aqua-X controller connects to the internet for app usage. Most land-based and cellular internet services are compatible; however, satellite internet services may not work.
• Firmware Updates: To update firmware on controllers and modules, use a Micro SD card with a capacity of 32GB or less.

Enhance your irrigation management with the TrolMaster Aqua-X Irrigation Control System, providing precise control and monitoring to support a healthy and productive growing environment.
