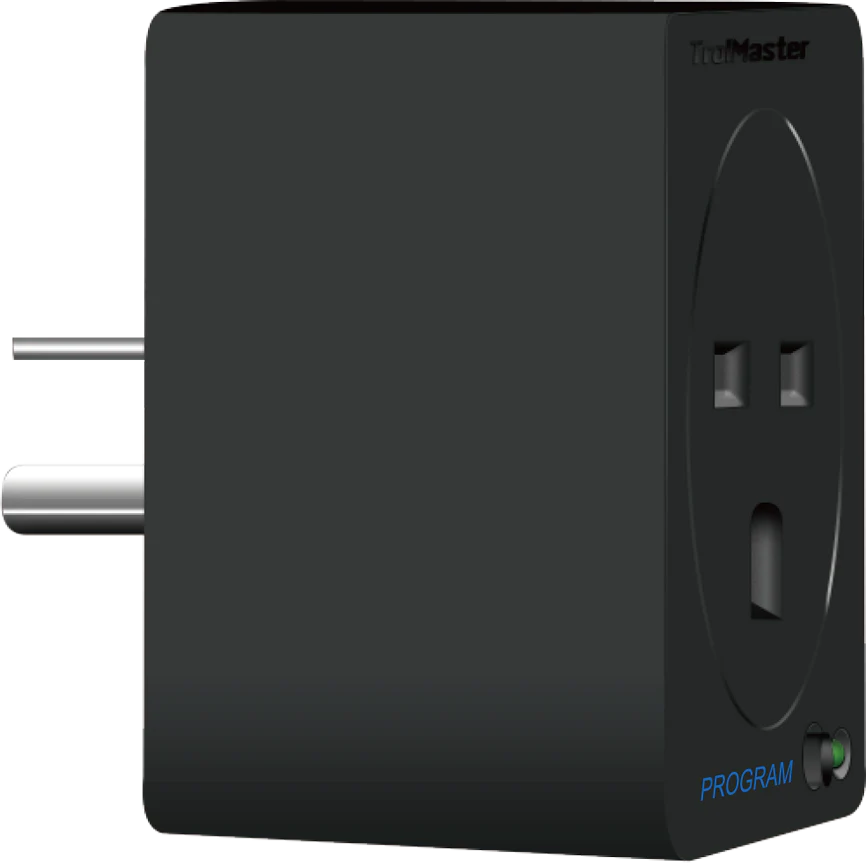

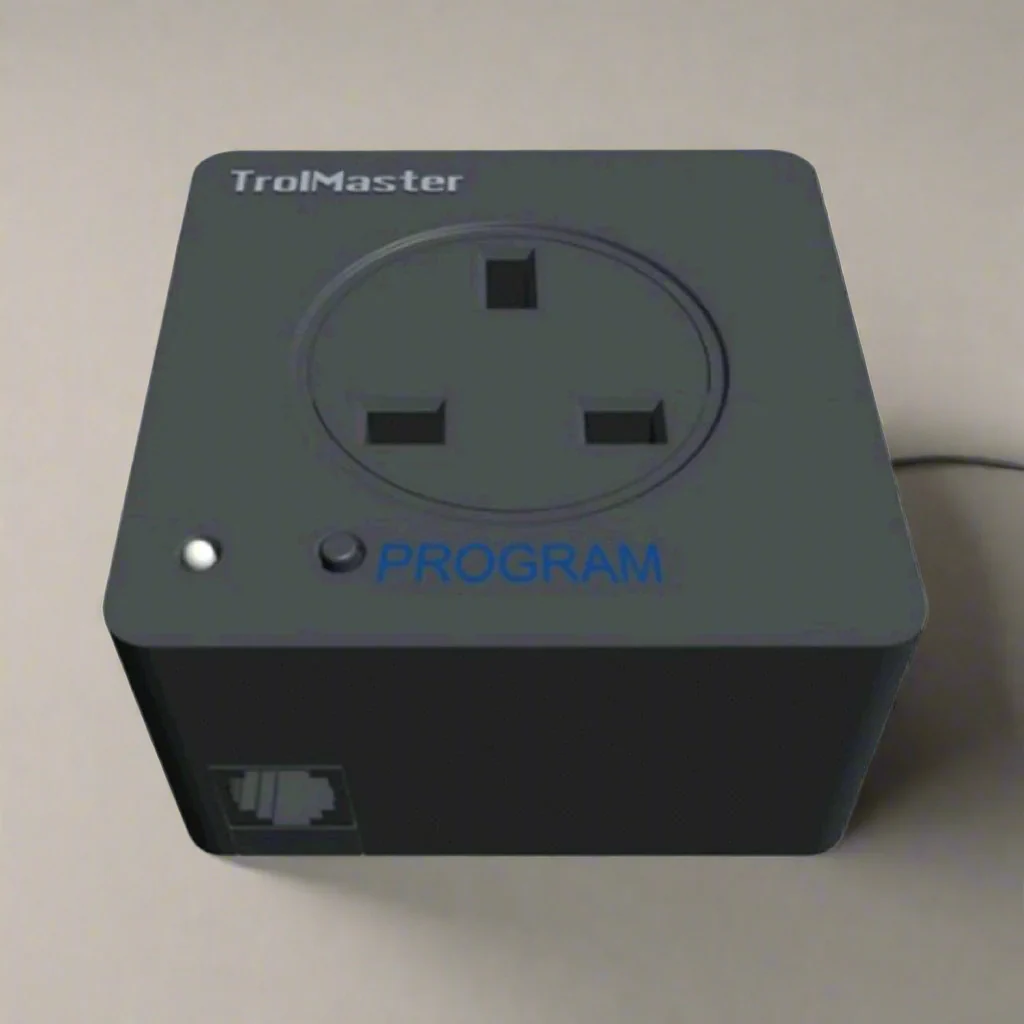

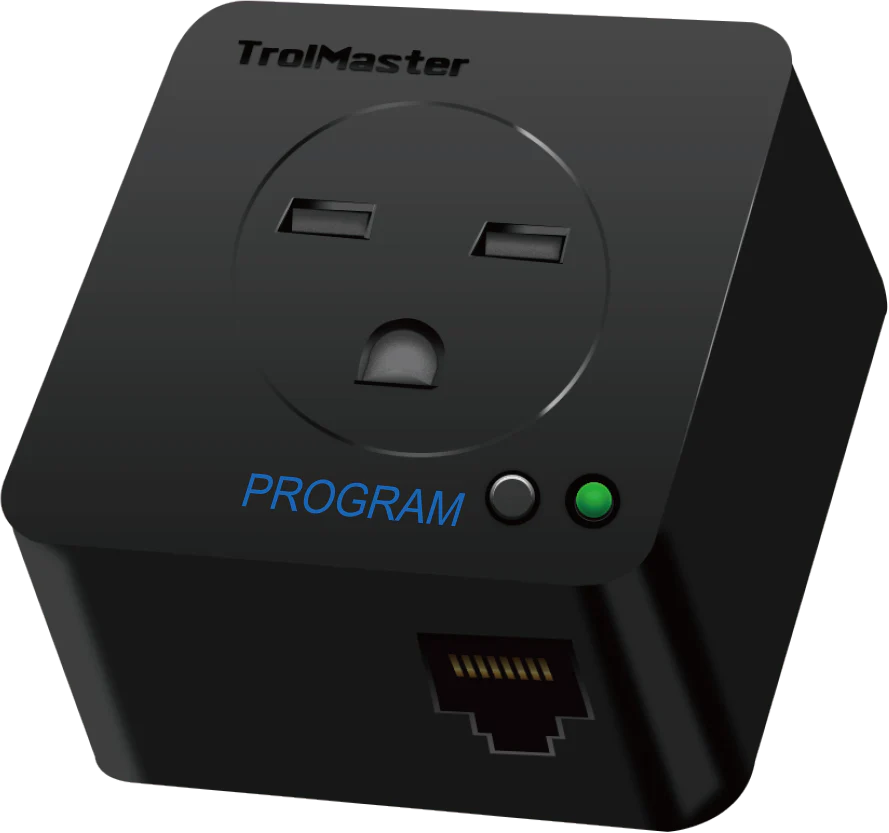

Introducing the TrolMaster 240V Program Device Station (DSP-2), a versatile timer module designed to integrate seamlessly with the Hydro-X Control System. The DSP-2 allows users to connect and control devices requiring timed operation, supporting global voltage standards and enhancing automation in your cultivation environment.

Key Features:

• Multi-Function Timer: Enables precise scheduling for devices that need time-based control, enhancing automation and efficiency.

• Global Voltage Compatibility: Supports devices operating under the world voltage standard (100-240 VAC, 50/60 Hz) up to 10 amps, ensuring broad applicability.

• LED Status Indicator: Provides clear visual feedback on the module's status, including connection, operation, and overload alerts.

• Manual Override Function: Allows users to manually turn connected devices on or off by pressing and holding the button on the DSP-2, offering flexibility in control.

• Plug & Play Design: Simplifies installation with an RJ12 cable socket and addressing capabilities, ensuring quick integration into your existing system.

Specifications:

Specification	Details
Input Voltage	100~240 VAC, 50/60Hz
Output Voltage	100~240 VAC, 50/60Hz
Output Current	10A
Working Environment	Temperature: 32-122°F (0-50°C), Humidity ≤90%
Package Dimensions	85mm (L) x 80mm (W) x 90mm (H)
Weight	0.34 kg



Package Contents:

• 1 x Device Station
• 1 x 16ft RJ12 Cable
• 1 x 4ft RJ12 Cable
• 1 x RJ12 T-Splitter

The TrolMaster DSP-2 is an essential addition for growers seeking precise time-based control over their equipment, enhancing automation and efficiency within the Hydro-X Control System.
