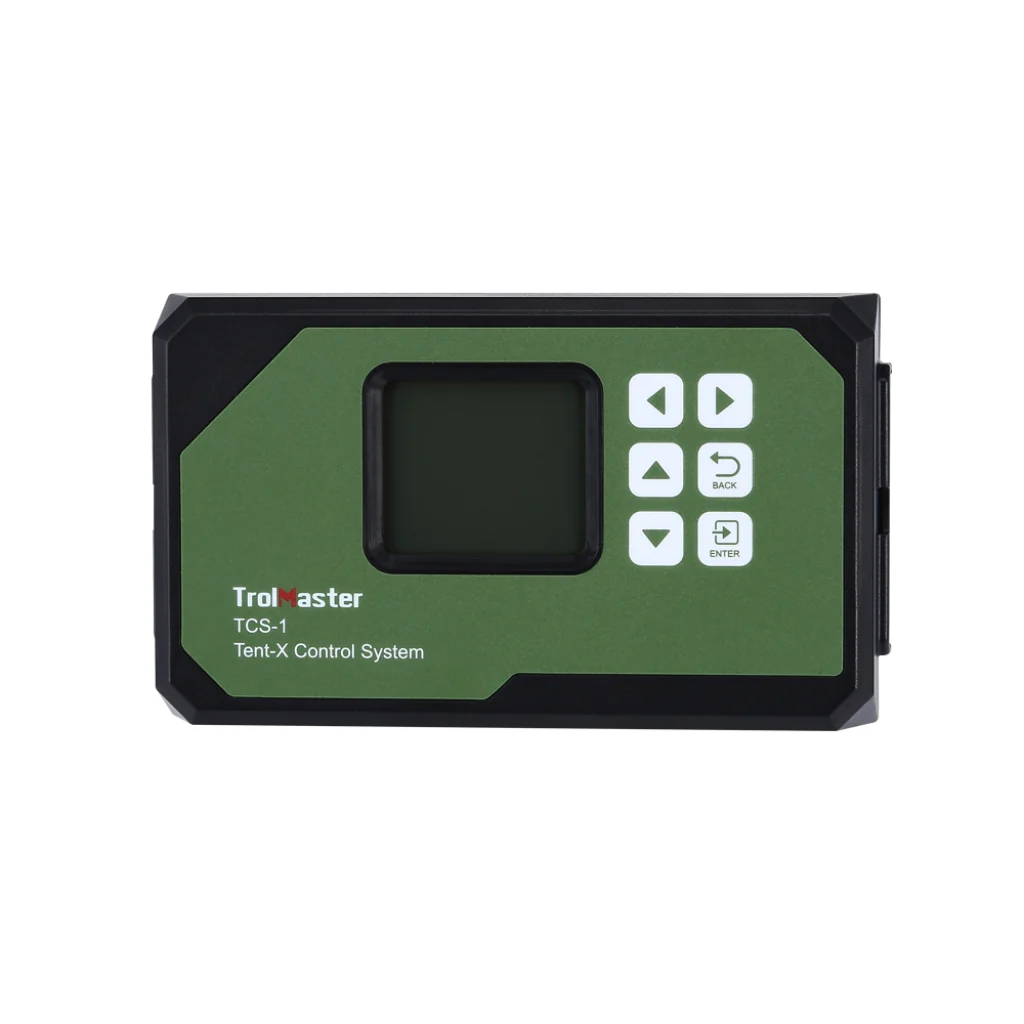

The TrolMaster Tent-X (TCS-1) is a professional-grade, modular environmental and irrigation control system designed specifically for single-zone grow tents. Its compact hydroponic capabilities allow users to effectively manage their tent's environmental parameters and irrigation schedules through a single, integrated controller.

Key Features:

• Integrated 3-in-1 Sensor: Comes with the MBS-TH sensor that monitors temperature, humidity, and light levels, providing comprehensive environmental data.

• Expandable Sensor Network: Supports daisy-chaining additional sensors, including CO₂ (MBS-S8), full-spectrum quantum (MBS-PAR), smoke detectors, and water detectors, enhancing monitoring capabilities.

• Modular Design: Allows connection of up to four DS-type plug-in control modules, facilitating customized control over environmental and irrigation devices.

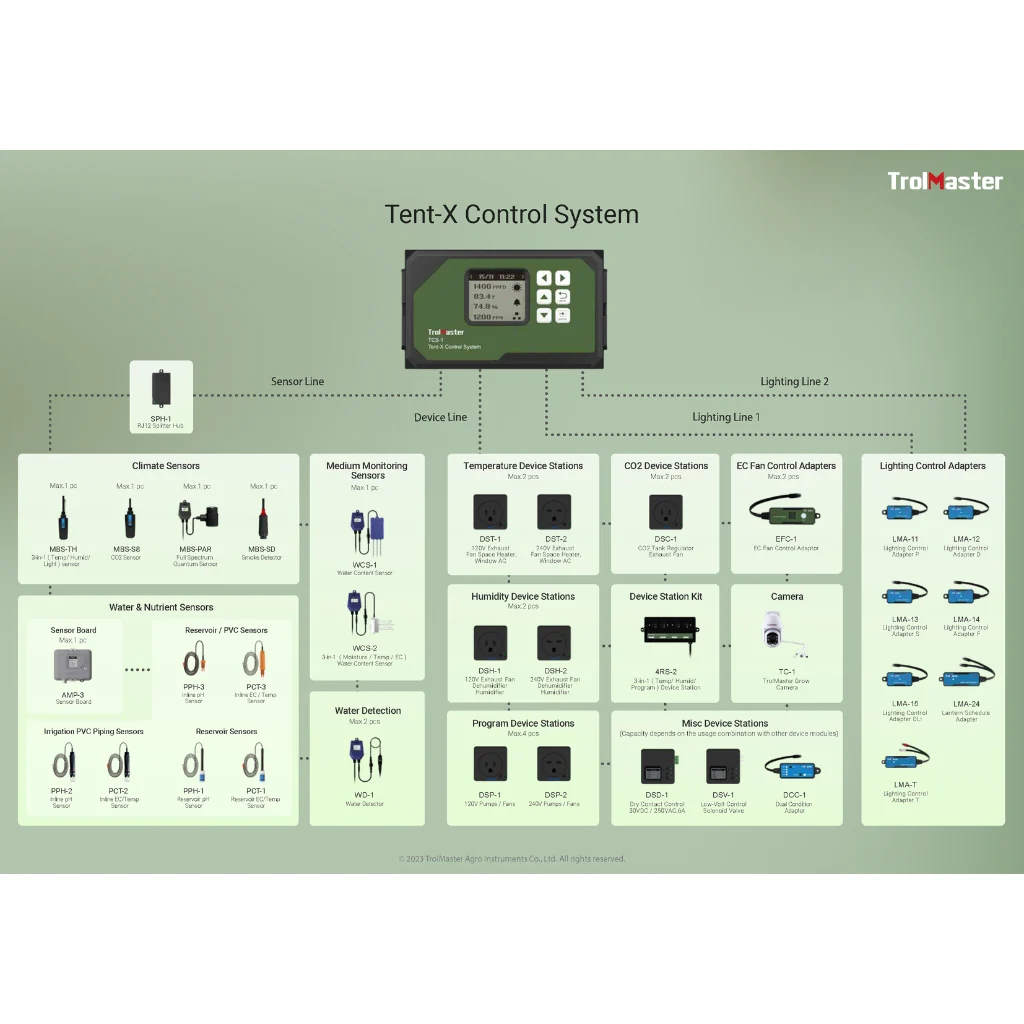

• Comprehensive Device Integration: Serves as the central hub, uniting all climate control and irrigation devices to create an optimal growth environment for plants.

Specifications:

Specification	Details
Input Voltage	100-240 VAC, 50/60 Hz
Certifications	ETL/FCC
Max Number of Lighting Fixtures	256 × 2
Max Distance of Device Connected	1000 meters
3-in-1 (Temp/Humid/Light) Sensor	Max 1 per set
CO₂ Sensor	Max 1 per set
Full Spectrum Quantum Sensor	Max 1 per set
Smoke Detector	Max 1 per set
AMP-3 Sensor Board (pH/EC/Temp)	Max 1 per set
Water Content Sensor	Max 1 per set
Water Detector	Max 2 per set
Temp Device Stations	Max 2 per set
Humid Device Stations	Max 2 per set
CO₂ Device Stations	Max 2 per set
Program Device Stations	Max 4 per set
EC Fan Control Adapter	Max 2 per set



Package Contents:

• 1 × Tent-X Controller

• 1 × Temp/Humid/Light 3-in-1 Sensor

• 1 × RJ12 Cable Set for Light Connection

• 1 × RJ12 T-splitter

The TrolMaster TCS-1 Tent-X System Main Controller is the central component that unites all your climate control and irrigation devices, enabling them to work together to create the optimal growth environment for your plants
