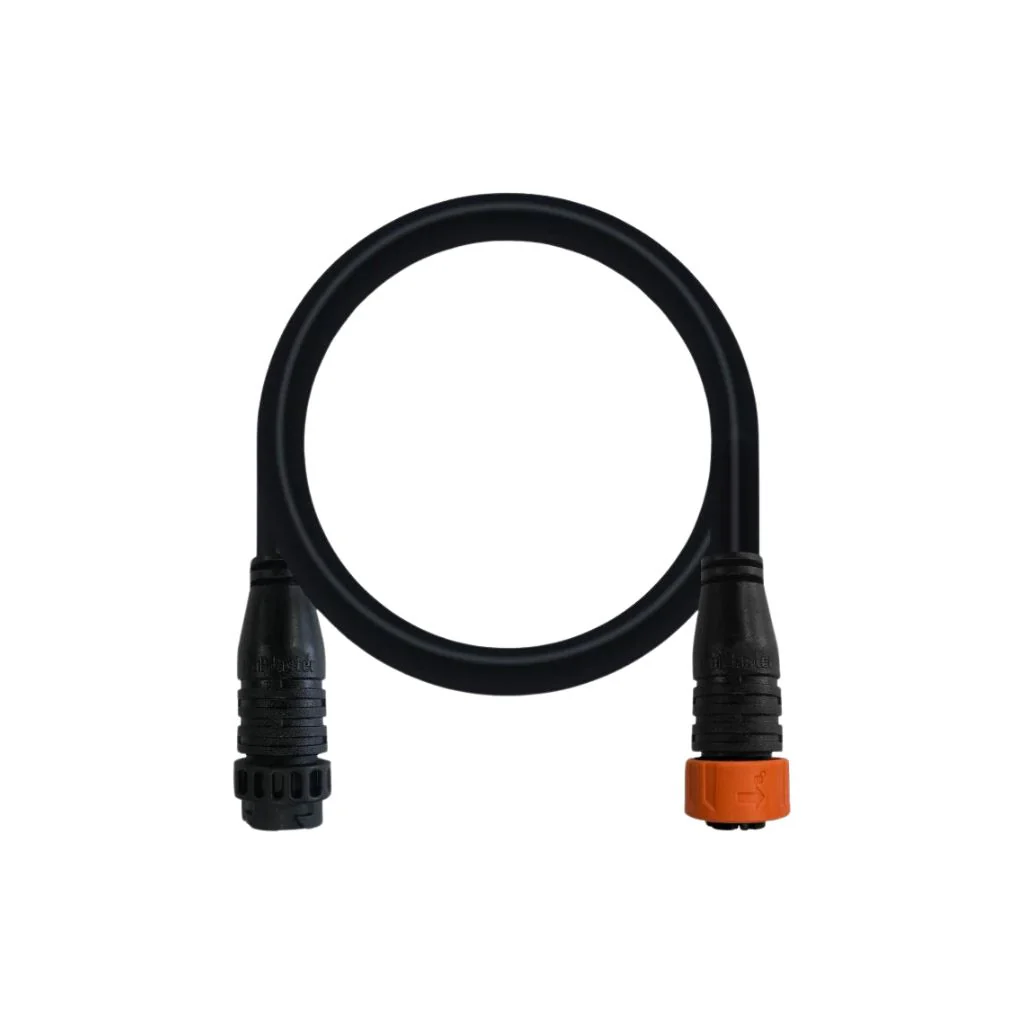

This Daisy Chain Power Cord System is specially designed for the new Model-One System to interconnect between the LED drivers, the system can eliminate a massive amount of power outlets, and reduce the number of power cables required.

Please allow 7 days for delivery

How To Use

Each “group” of Model One drivers must be connected to power using one of the TDC 240E power cables. The

TDC-2/3/4 are used to connect the power and the control signal from one LED driver,
to the next LED driver.

CAUTION: Incorrect application may lead to equipment damage. The user is responsible for correct and safe installation and usage. Ensure the existing electrical system can support the voltage and current requirements.

LED Model	MAX In String	LED Amp	LED Watts	Total AMPS	% Load
TLD-2	22	0.38	90	8.25	83
TLD-4	22	0.38	90	8.25	83
ICL-300	16	0.50	90	8	820



Model One Use Manual Click Here

Model One Cable Data Sheet Click Here



Specifications

Input Voltage:	100-277V~, 50/60Hz
Amp:	10A
AWG:	18
Length:	1ft, 2ft or 5ft
Weight:	0.21 lbs (94 g) 0.27 lbs (122 g) 0.51 lbs (230 g)
Temperature Range:	32~104℉
