ThinkGrow Model One 4ft LED Bar With 2 Channels/ Far Red
The ThinkGrow Model One 4' LED Bar With 2 Channels/ Far Red is capable of providing a full and far red spectrum for optimal plant growth and development. This 4' LED light bar is compatible with the TrolMaster controller, giving growers the ability to adjust the spectrum based on their specific crop and growth stage using the dimming knob or a compatible controller.
Please allow 7 days for delivery

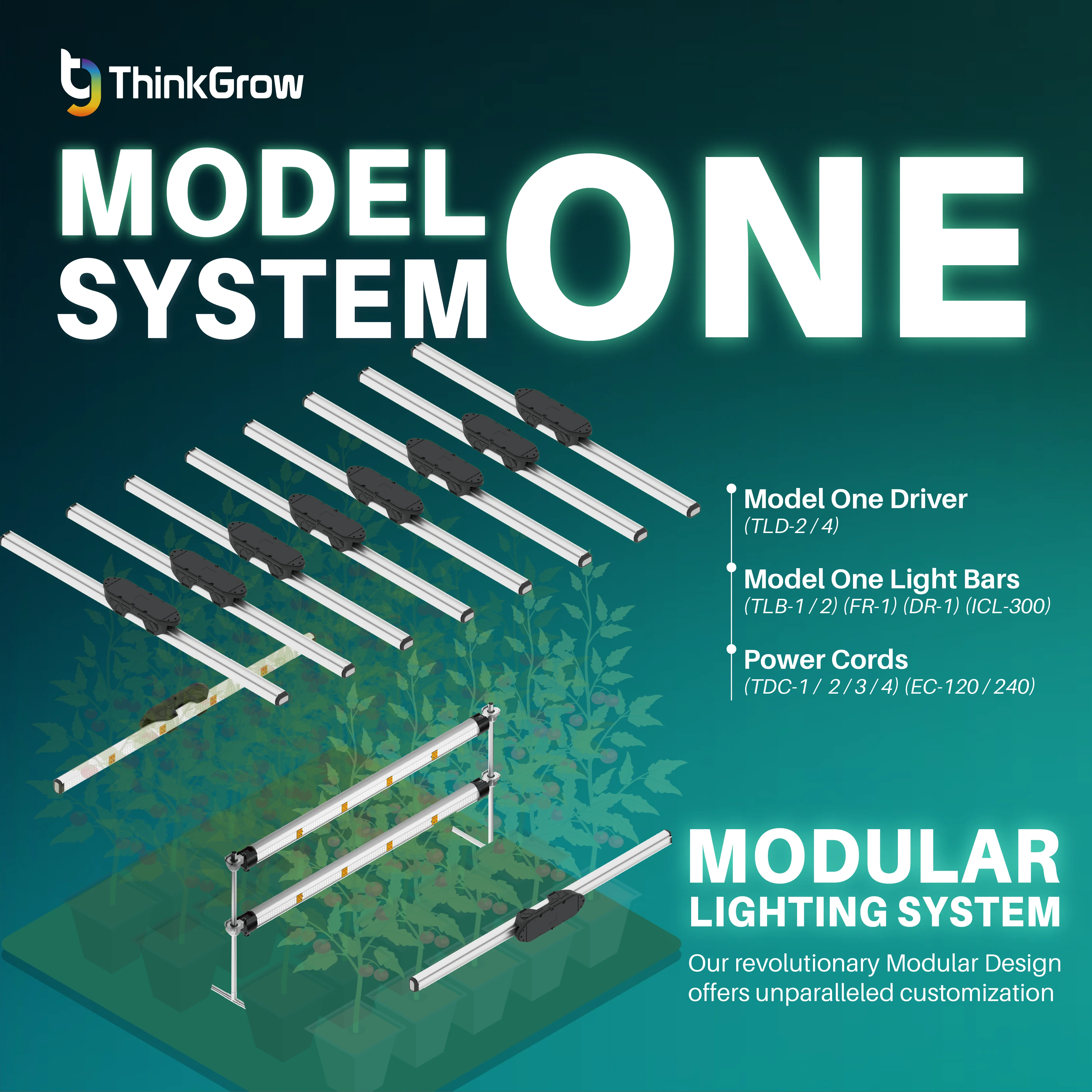

What Is The Modular One System?
Step into a New Era of cultivation with the ThinkGrow Model One Modular Lighting System. Unlike traditional grow lights on the market, this revolutionary modular design offers unparalleled customisation. From Light Bars to Mounting Brackets and Connection Cables, each element can be customised and positioned to illuminate your crop's full potential with ease.
Model One System Fit For All
Designed with every grower's need in mind, the Model One system is here to assist you at all stages of your plant's growth stage. Whether you're using fresh seeds or clones, the Model One system is here to facilitate the productive growth of your plants.
Conveniently ADD or REMOVE the light bars from their drivers to accommodate your plant's needs and to bring out their latent potential.
Which Driver Do I Need With This Bar?
This LED light bar is is suitable for the 2 channel LED driver ( TLD-2) Which you can find here

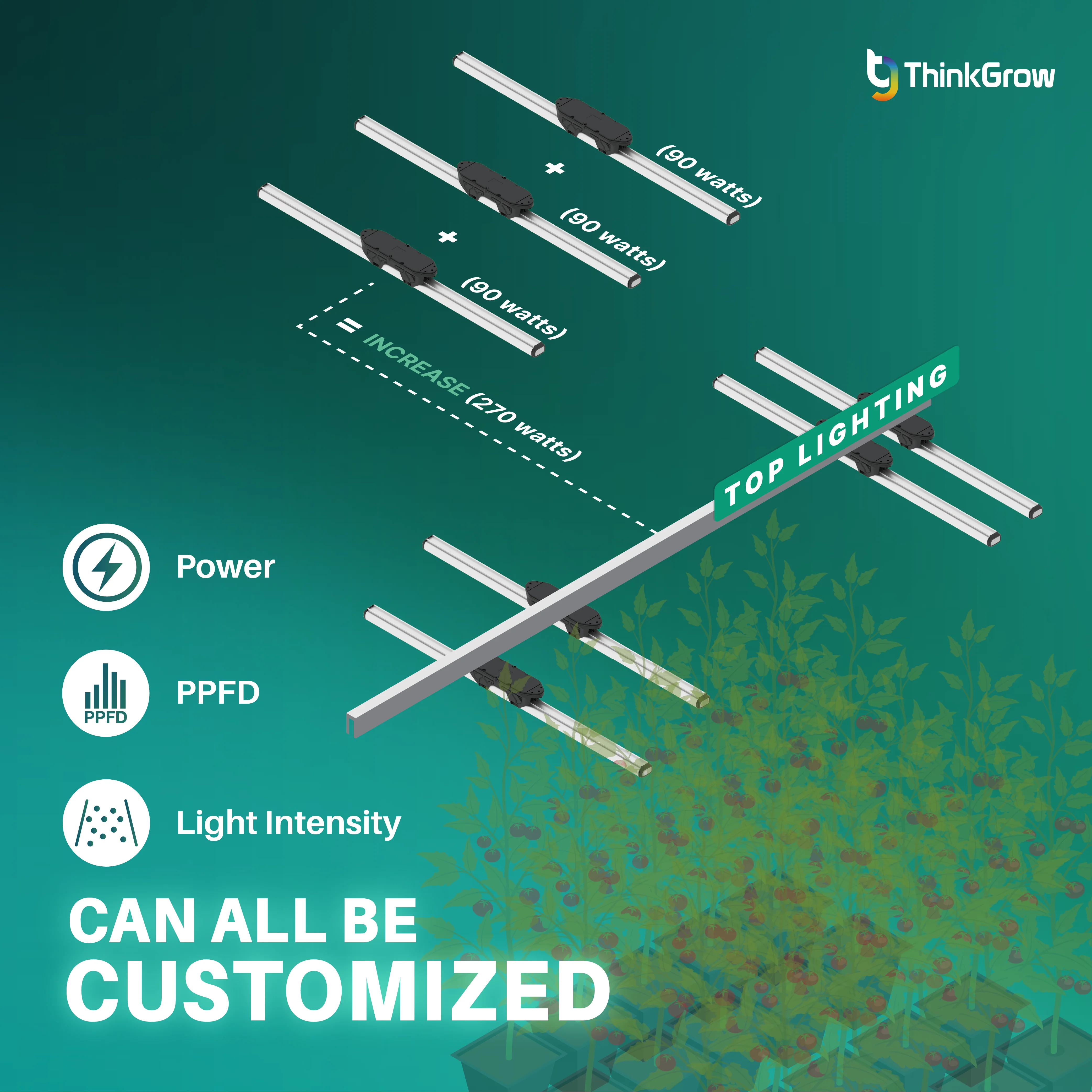

Possible Model One ConfigurationsĀ
For each Model One light you wish to build with this light bar requires 1x power cord (TDC-240) 1x Driver (TLD-2) and to connect further Model one bars you will require theĀ daisy chain cable ( TDC-2/3/4) in-between each light bar.
| Ā LED bars | Power (watt) | Drivers | Power Cables | Daisy Chain Cables |
| 1 | 90w | 1 | 1 | 0 |
| 2 | 180w | 2 | 1 | 1 |
| 3 | 270w | 3 | 1 | 2 |
| 4 | 360w | 4 | 1 | 3 |
| 5 | 450w | 5 | 1 | 4 |
| 6 | 540w | 6 | 1 | 5 |
| 7 | 630w | 7 | 1 | 6 |
| 8 | 720w | 8 | 1 | 7 |
Model One Use Manual Click Here
Model One 4' 2 Channels With Far Red
Ā
Specifications
| PPF Output | 234. Āµmol/s |
| Input Power | 90W |
| Mounting Height | >6ā (15.2cm) Above Canopy |
| Lifetime | L90:> 54,000 hrs |
| IP Resistance | IP56 |
| Warranty | 5 Years Standard Warranty |
| Working Environment |
Humidity 5~95%RH Temperature 32-104Ā°F (0-40Ā°C) |
| Dimensions/Weight |
Size 45.35"(L) x 2.68"(W) x 2.20"(H) Gross Weight 2.58lbs /1.17kg |
