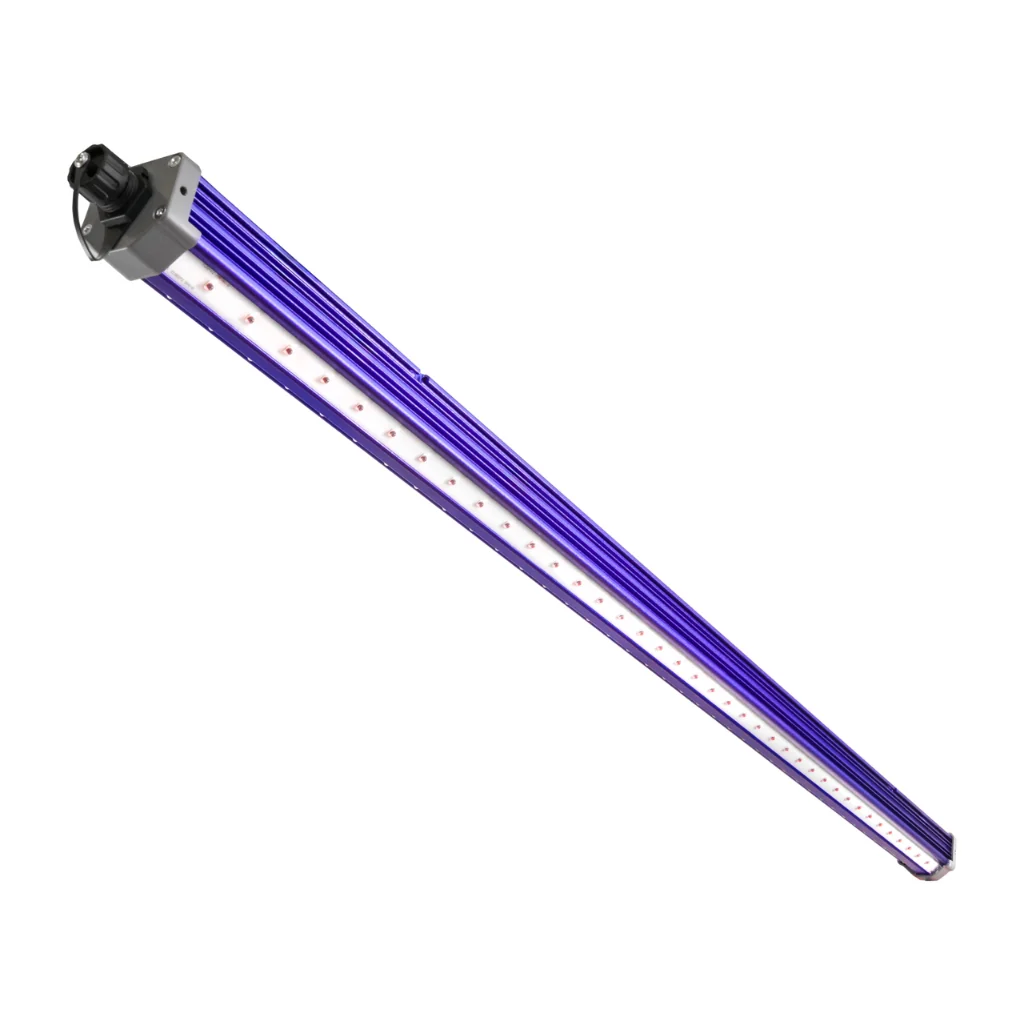

Lumatek 50W Far-Red Supplemental Light LED Bar
The Lumatek 50W Far-Red LED Bar is a supplemental addition to your crop that has been specifically created to extend the Zeus LED (400-700nm) Full-Spectrum range to 400-750nm.
Fixture Compatible

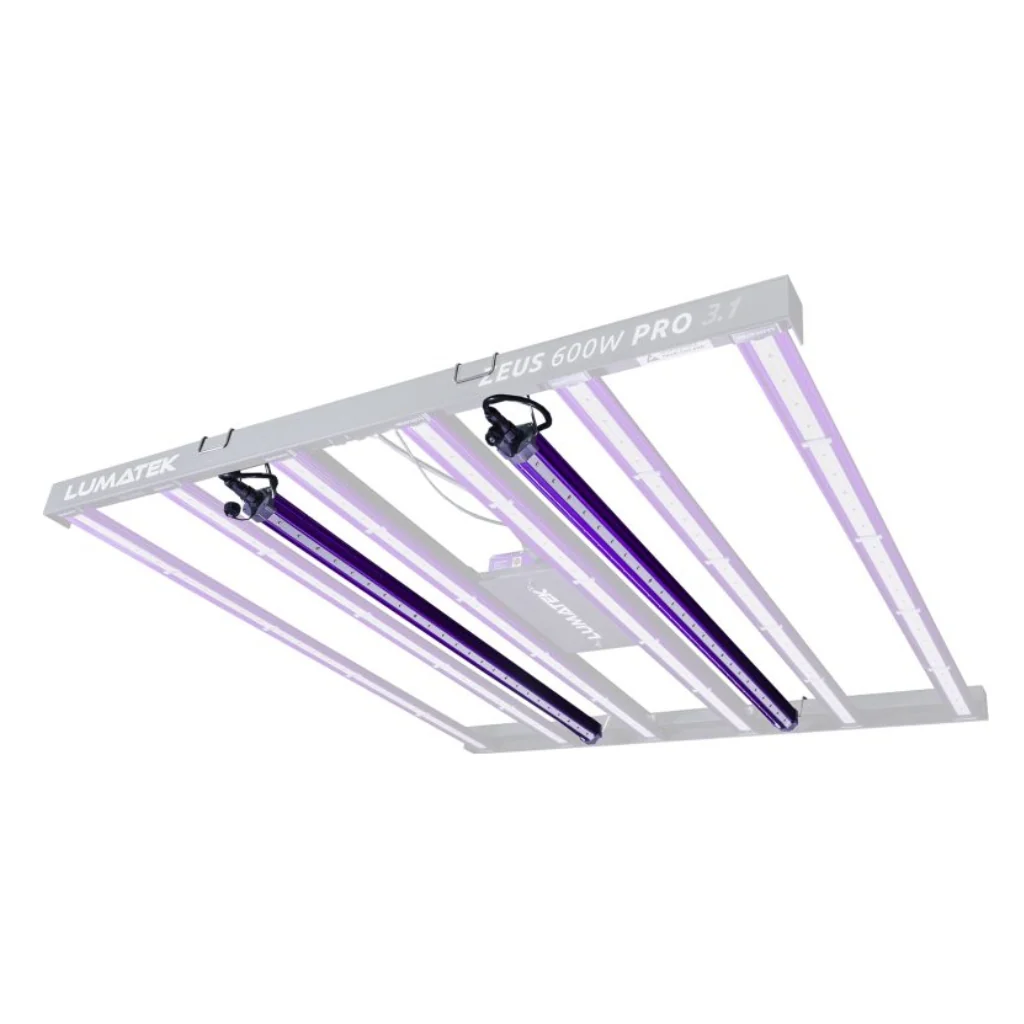

Designed to fit directly on the popular Lumatek Zeus LED fixtures frames, the integration of the Far-Red photons (701-750nm) harnesses the principles of the Emerson Enhancement effect, allowing growers to promote stem elongation and leaf expansion during the vegetative and the early days of flowering stages. Also, taking advantage of their high efficacy, they can be used at the end of the life cycle to improve the overall photosynthetic efficiency.
Enhance Your Spectrum
With its peak at 730 nm and an output of 13 μmol/s (600-700nm) and 140 μmol/s (701-800nm), the Lumatek 50W Far-Red is a supplemental LED bar tool, to help growers enhance PSII photochemical efficiency and photosynthetic rate when added to the provided Full-Spectrum by the ZEUS range.

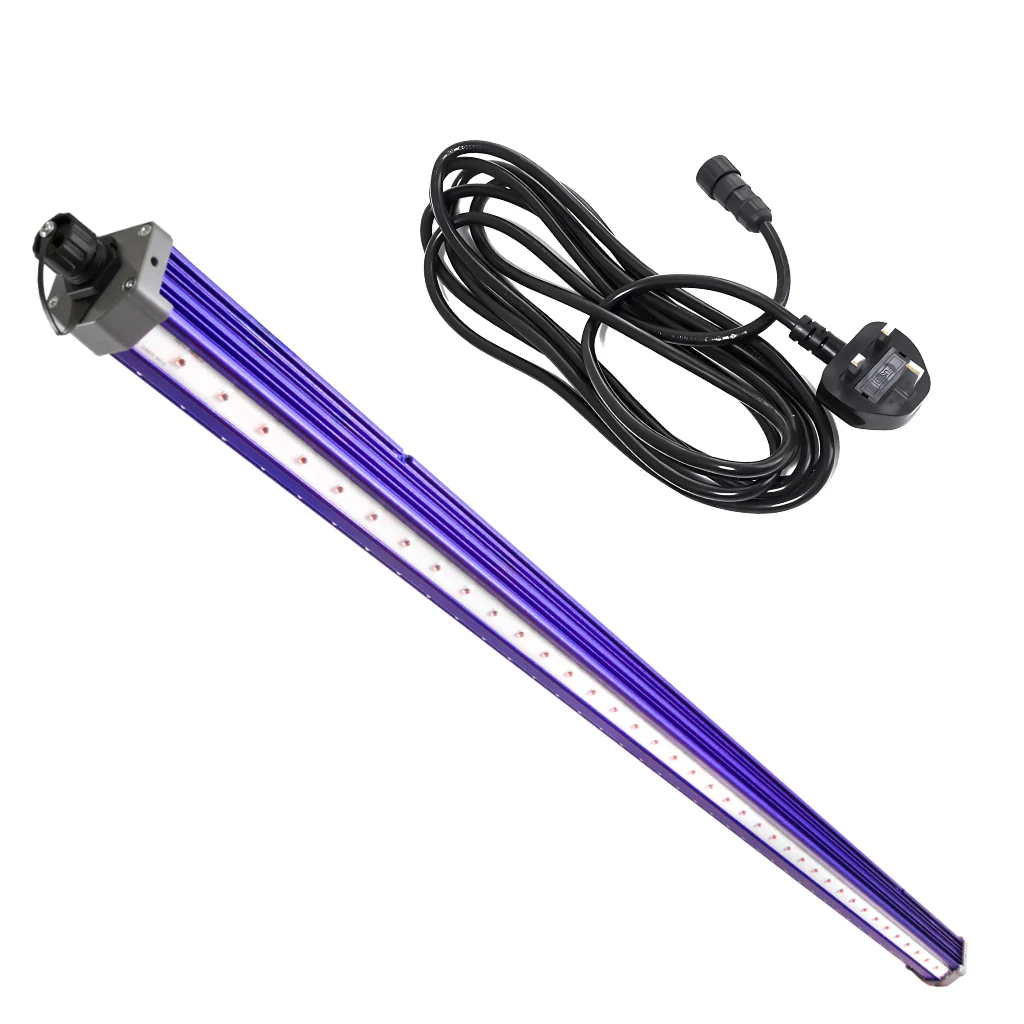

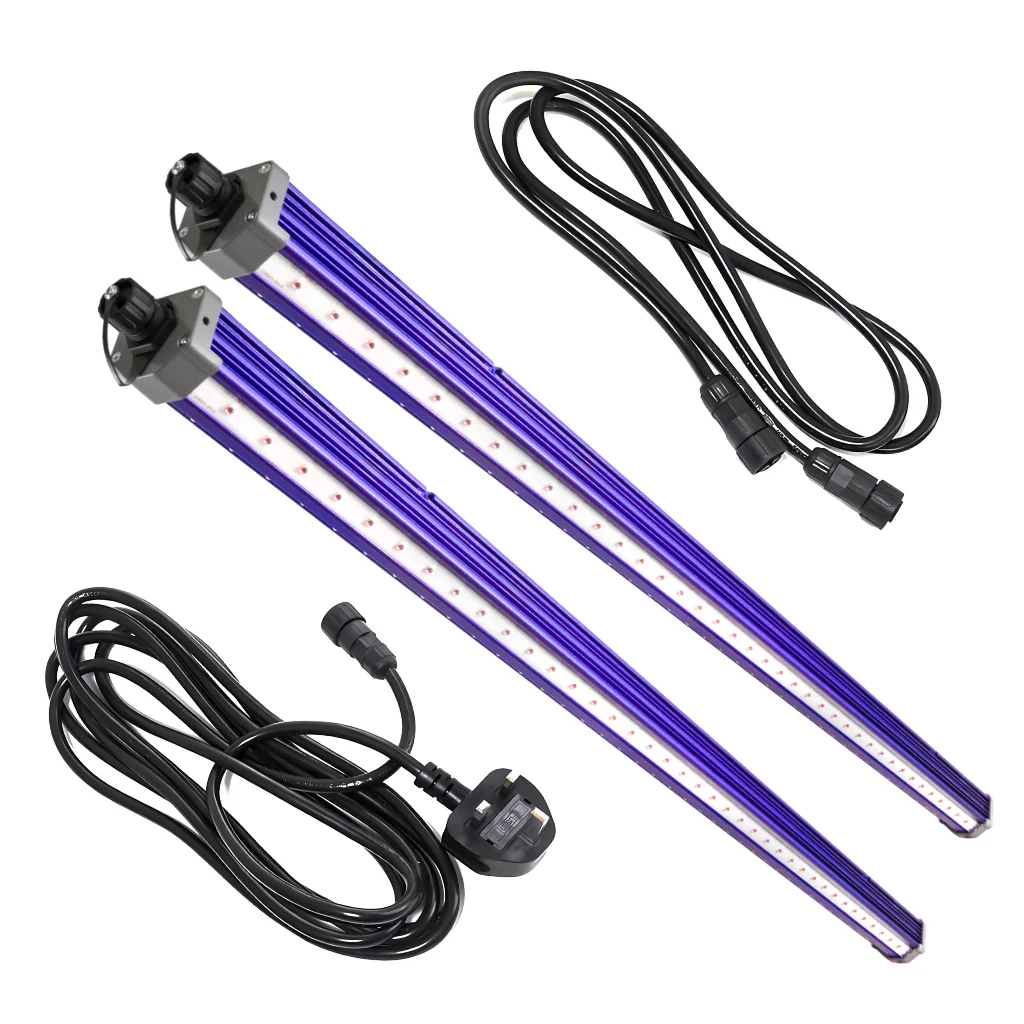

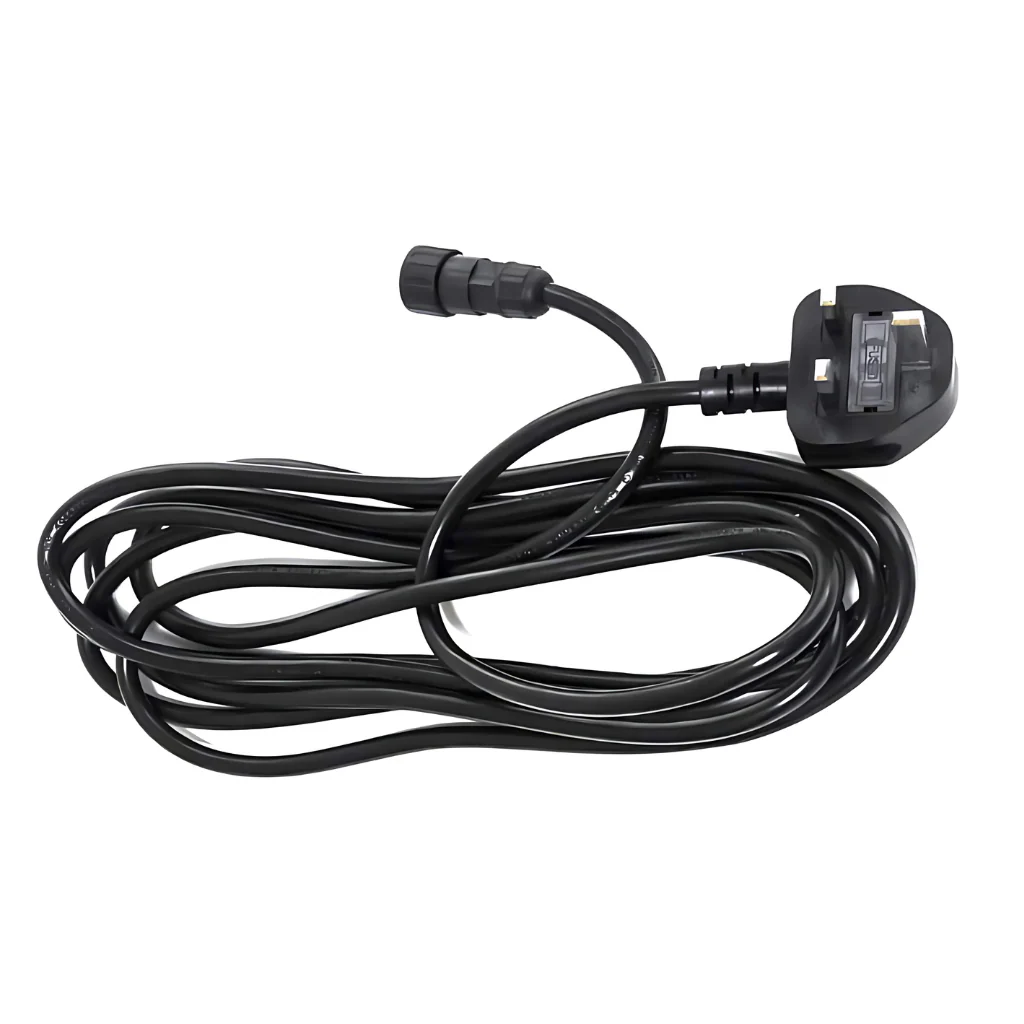

This unit has an independent power source and can also be connected in series with daisy-chain link cables. To ensure unit performance, this LED bar has a single input and output socket for the Power Cable or Daisy Chain link Cable, depending on the use of that bar. For this reason, the Power (4m) and Daisy Chain (1.5m) cables are sold separately.
Recommended Coverage
The Lumatek 50W Far-Red LED Bar was designed to fit directly into the Zeus fixtures and when FAR-RED photons are mixed with the produced Full-Spectrum from the Zeus range, a 10-20% ratio is achieved.
Integrate a minimum of 2 units of LUMATEK 50W FAR-RED LED BAR, with:
- ZEUS 465W PRO 2.9 | 1.2 x 1.2m footprint
- ZEUS 600W PRO 3.1 | 1.5 x 1.5m footprint
- ZEUS 1000W XTREME CO2 | 1.5 x 1.5m footprint w/ CO2 Supplement
Integrate a minimum of 3 units of LUMATEK 50W FAR-RED LED BAR, with:
- ZEUS 1000W PRO | 1.5 x 2.0m footprint.
Recommended FAR-RED Application
Always mix the supplemental FAR-RED radiation with the previously mentioned Lumatek Zeus Full-Spectrum LED Range.
FAR-RED can also damage plants. If you notice plant damage, we recommend increasing the distance between fixture and canopy or decrease the FAR-RED radiation delivered by reducing the photoperiodic time. There is no specific defined photoperiodic time as it will depend on the grower plant morphology preferences.
| Specifications | Details |
|---|---|
| ePPF (400-750 nm) | 155 µmol/s |
| sePPE (400-750 nm) | 3.1 µmol/J |
| Input Voltage | 220-240 V AC, 50-60 Hz |
| Input Power | 50 W (+/- 5%) @230 V AC |
| Driver | Integrated Waterproof/Dustproof: IP65 |
| Life Span | L90 > 45000 HRS |
| Light Distribution | 140° |
| Light Source | Far-Red Diodes |
| Dimensions | 1000 x 48 x 42 mm |
| Weight | 1.2 Kg |
| Thermal Management | Passive |
| Power Factor | 0.95 @230 V (100%) |
| Working Temperature | -10 °C - +40 °C |
| Working Humidity | 20% - 80%, Non-Condensing |
| Dimmable | No |
| Daisy-Chain Capability | Yes (Max. 18 PCS) |
