Sunflower Automatic Trimmer L - Light®
Mid-sized product, high?class quality
EXPERIENCE THE PERFECT TRIMMING
A solution for small and mid-sized growers providing an excellent trimming quality.
DELIVER A GREAT PRODUCT
Provide your customers with an ultimate trimming quality. Whether you are just starting or you already run a mid-sized business, Automatic Trimmer L - Light® shows your customers what a perfectly trimmed buds mean.
ACCELERATE BUSINESS
Growers of all sizes save a huge amount of human labour and time by automating harvesting routines. Develop customer relations effectively on a basis of customer satisfaction with your perfectly looking products.
AUTOMATIC TRIMMER L - LIGHT ® IN DETAIL
A definitive choice for small and mid-sized growers.

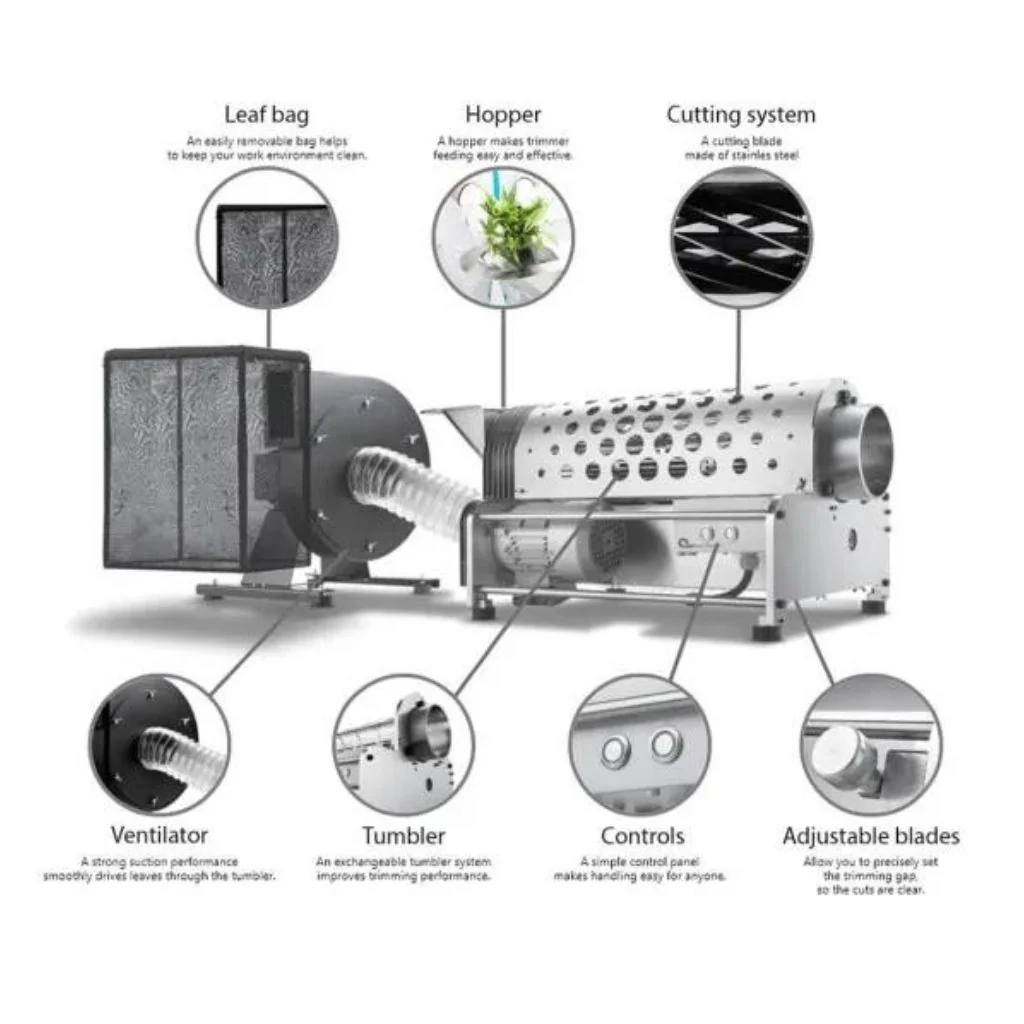

Fully automated device with the trimming capacity as much as 10 kg per hour brings true effectiveness into harvesting routines. Flowers are loaded into a stainless steel hopper and moved further into a stainless steel tumbler where they are trimmed. The tumbler with a diameter of 126 mm provides enough capacity for a typical small or mid-sized production volume.
The flowers are rotated in the tumbler and slowly moved through. The adjustable blades allow you to precisely set the trimming gap between the blade and the reel, so the cuts are clear. With a trimming distance of 1 mm, you achieve perfectly trimmed buds. Waste materials like leaves and stems are automatically moved into a leaf bag.
The Automatic Trimmer L - Light® is a portable table top solution. A separate suction system with 1,400 Pa suction capacity helps to move flowers smoothly through the whole trimming process.
Waste materials like leaves and stems are automatically moved into a leaf bag.
An overall weight of 50 kg makes Automatic Trimmer L - Light a fully portable and highly flexible solution.
TECHNICAL SPECIFICATIONS:
- Device size (h,w,d): 60x60x40 cm
- Device weight: 50 kg
- Shipping size: 100x80x60 cm
- Shipping weight: 60 kg
- Wet trimming capacity: 7-10 kg/h
- Dry trimming capacity: 2 kg/h
- Input voltage: 230 V
- Input frequency: 50 Hz
- Motor current: 1,4 A
- Motor output: 0.25 kW
- Motor IP rating: 55
- Motor rotation: 1365 min-1
- Reel rotation: 1250 min-1
- Tumbler rotation: 100 min-1
- Tumbler diameter: 126 mm
- Reel length: 542 mm
- Trimming surface length: 542 mm
- Blade distance: 1 mm
- Reel blades: 6
- Fan Air output: 1020 m3/h
- Fan Max. suction: 1400 Pa
- Fan input power: 0.55 kw
- Fan motor current: 6 A
- Fan motor IP rating: IP 55
- Fan motor rotation: 2800 rpm
- Inlet neck diameter: 100 mm
